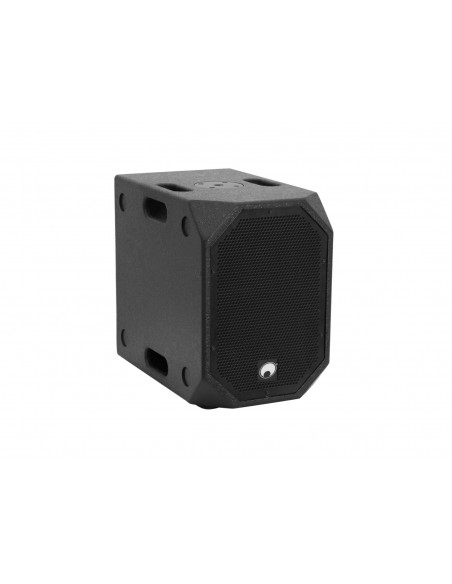

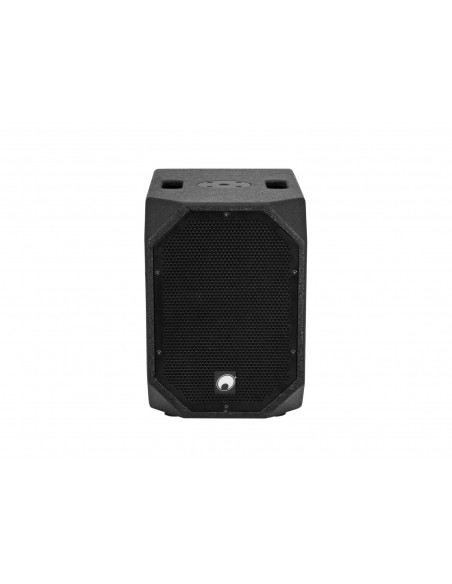

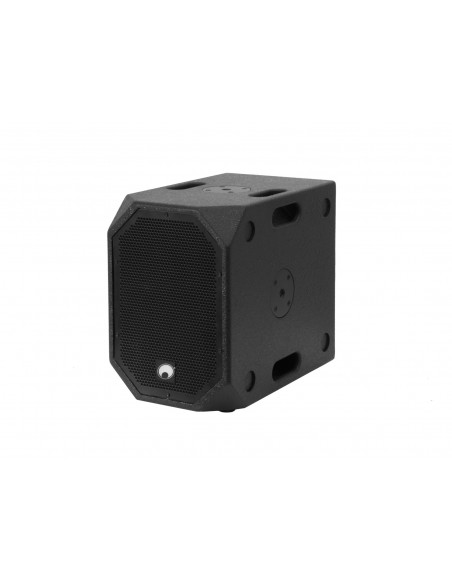

10" subwoofer with DSP and Bluetooth for the BOB series
- 10" bassreflex subwoofer with DSP and 900 watts RMS power
- Flexibly extendable with BOB-4 satellites for 2.1, 4.1 and 8.1 configurations
- DSP-controlled class D amplifier (300 W + 2 x 300 W)
- Integrated Bluetooth audio streaming
- 4 EQ presets with indicators
- Signal limiter and crossover
- Signal inputs via combo jacks (XLR/6.3 mm jack) and RCA
- Parallel XLR outputs for linking further BOB systems or active systems
- Separate volume controls for subwoofer and satellites L/R
- Stereo/mono selection
- Phase reversal switch
- Fault, limit, signal and power indicators
- Built-in protection circuits: soft start, short-circuit, limiter, overcurrent, overheat
- Two M20 metal flanges for mounting satellite speakers
- MDF enclosure with scratch-resistant lacquer surface and steel grille
- Built-in handles and low weight for ease of transport

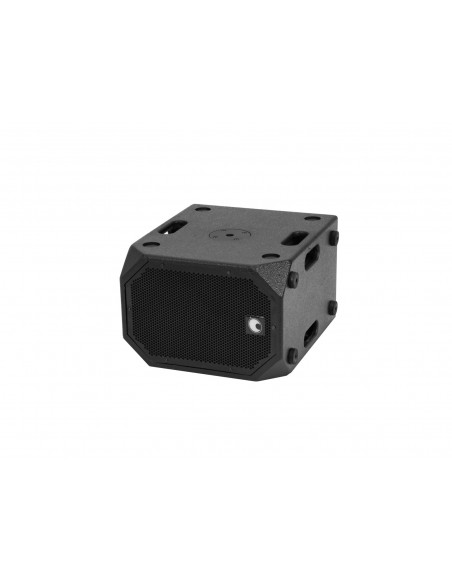

- Stackable via recesses when set up horizontally
- Delivery includes two speaker cables
- For mobile live and DJ applications and installation in bars, stores, conference rooms and home theaters
- Digital signal processor
- Controlling by Bluetooth
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
1060 W |
| Power connection: |
Mains input IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Rated power: |
1 x 300 W RMS LF; 2 x 300 W RMS HF |
| Frequency range: |
45 - 250 Hz |
| Sensitivity: |
100 dB |
| Max. SPL: |
125 dB |
| DSP: |
Digital signal processor |
| Control: |
Bluetooth |
| Attachment system: |
M20 thread |
| Circuitry: |
Class D |

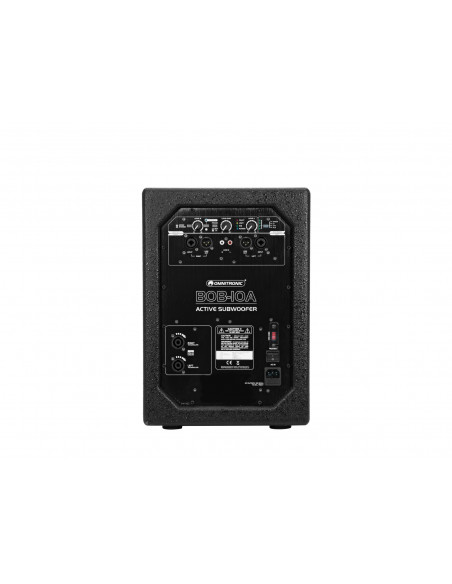

| Connections: |
Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Output: speakers via 2 x speaker built-in socket (F)
Output: line via 2 x 3-pin XLR |
| Input channels: |
1 x stereo via Combination socket or RCA or Bluetooth, channel control via Rotary dial |
| Speakers: |
1 x woofer (10") approx. 25 cm
Voice coil lows (2") approx. 5 cm |
| Type of speaker: |
Subwoofer |
| Type: |
Vented |
| Material: |
MDF (Medium-density fibreboard) |
| Color: |
Black |
| Dimensions: |
Width: 30 cm
Depth: 47 cm
Height: 43 cm |
| Weight: |
17,00 kg |
