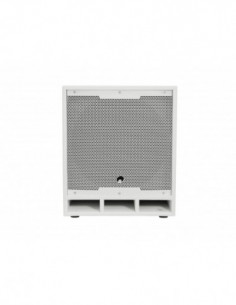

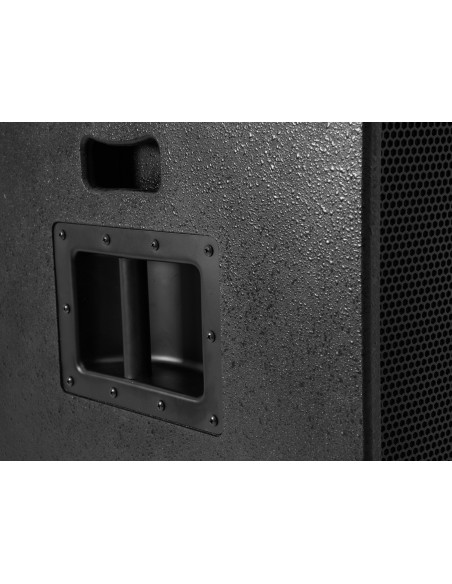

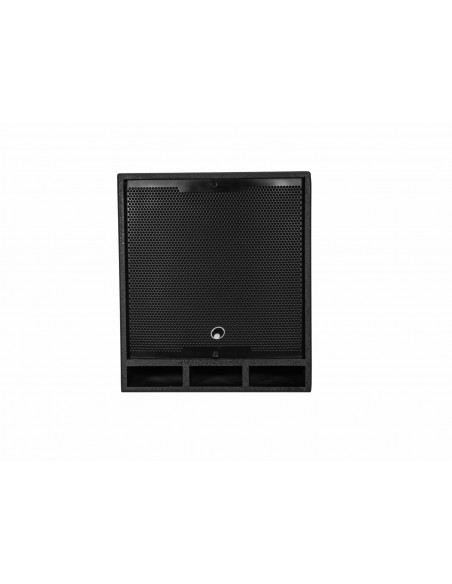

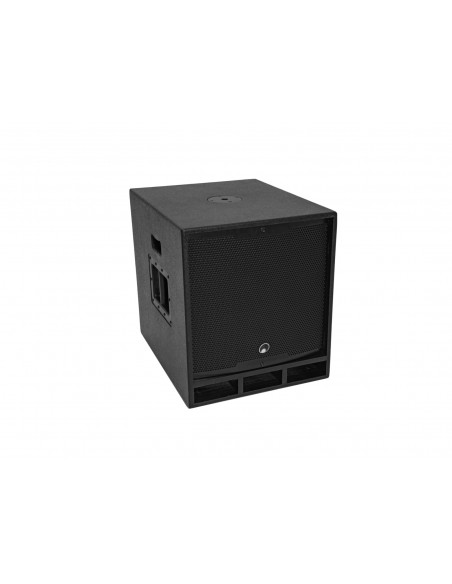

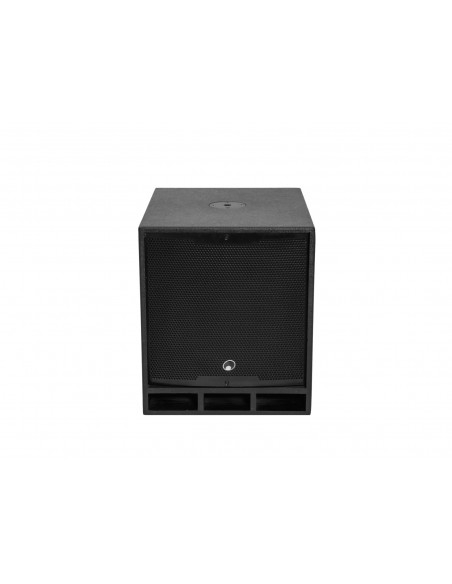

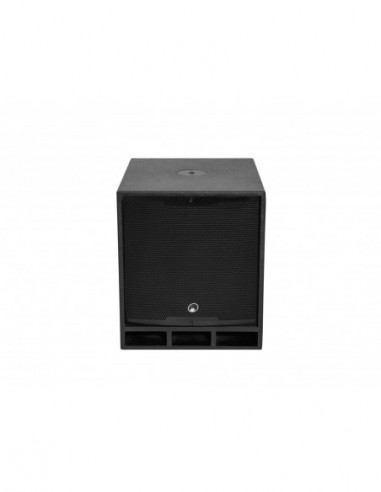

The MAXX-1508DSP is an active 2.1 PA system with 700 watts output power. It provides perfect sound and good level stability in various kinds of mobile PA applications.The high-power 15" subwoofer with power-efficient Class D amplifier in a bass reflex cabinet delivers powerful, dry bass. The two satellite loudspeakers with 8" bass/midrange drivers and 1" compression drivers are equipped with a passive 2-way crossover including PTC tweeter protection and ensure a well-rounded sound experience.Equipped with a DSP (digital signal processor) which enables convenient application presets for quick sound contouring, the MAXX-1508DSP offers combined XLR and 6.3 mm inputs with XLR parallel output (for linking additional systems), and an additional RCA input with level adjustment. Enjoy music wirelessly from your smartphone or any other Bluetooth device via the integrated Bluetooth audio receiver and charge them at the same time via the integrated powerbank. The MAXX-1508DSP subwoofer's professional hardware includes a rugged multiplex/MDF enclosure, scratch-resistant lacquer, steel grille and ergonomically shaped handles. Swivel castors for easy transport are optionally available. Matching speaker stands, distance tubes, and stand forks are also available as accessories.
Powerful 15" active subwoofer with DSP and Bluetooth, 700 watts
- 15" subwoofer with Class D amplifier in bassreflex cabinet
- Amplifier power: 400 W RMS + 2 x 150 W RMS for two satellites
- Serves as a mobile 2.1 system together with MAXX-1508 2-way tops
- Balanced signal input XLR/6.3 mm jack L/R
- Additional stereo RCA input, with level switch
- Parallel XLR line output L/R
- Integrated Bluetooth audio streaming for your smartphones and tablets
- 3 EQ presets with indicators, DSP-controlled
- Signal limiter, DSP-controlled
- Separate volume control for subwoofer and satellites
- Stereo/mono selection
- Built-in fast charger (5 V/2 A) for convenient charging of your mobile USB devices
- MPX/MDF enclosure (16 mm) with scratch-resistant lacquer surface and steel grille
- M20 metal flange for mounting a satellite speaker
- Castors available as accessory
- Delivery includes two speaker cables
- Digital signal processor
- Controlling by Bluetooth
- With Wheels optional
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
800 W |
| Rated power: |
400 W RMS LF; 2 x 150 W RMS HF |
| Frequency range: |
Bass 35 - 120 Hz
Top 120 - 18000 Hz |
| Sensitivity: |
95 dB |
| Max. SPL: |
120 dB |
| DSP: |
Digital signal processor |
| Control: |
Bluetooth |
| Attachment system: |
M20 thread |
| Circuitry: |
Class D |

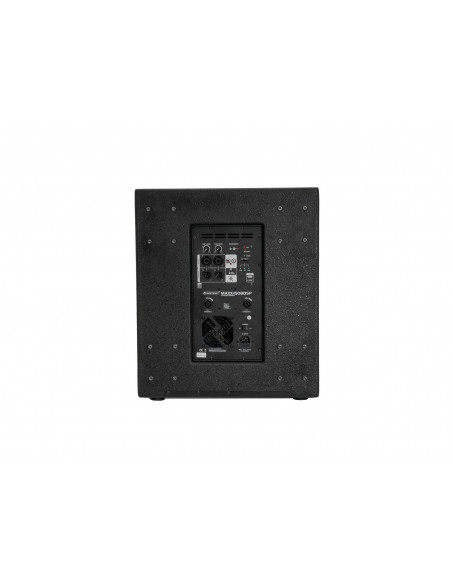

| Connections: |
Input: stereo via 1 x stereo RCA
Input: stereo via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Output: line via 1 x 3-pin XLR
Output: speakers via speaker built-in socket (F) |
| Input channels: |
1 x stereo via XLR or RCA or bluetooth, channel control via Rotary dial |
| Speakers: |
1 x woofer (15") approx. 38 cm with ferrit magnet |
| Type of speaker: |
Subwoofer |
| Type: |
Vented |
| Transport aid: |
Wheels optional |
| Material: |
Birch multiplex, 16 mm; MDF (Medium-density fibreboard) |
| Dimensions: |
Width: 45,4 cm
Depth: 57 cm
Height: 53,4 cm |
| Weight: |
29,30 kg |
