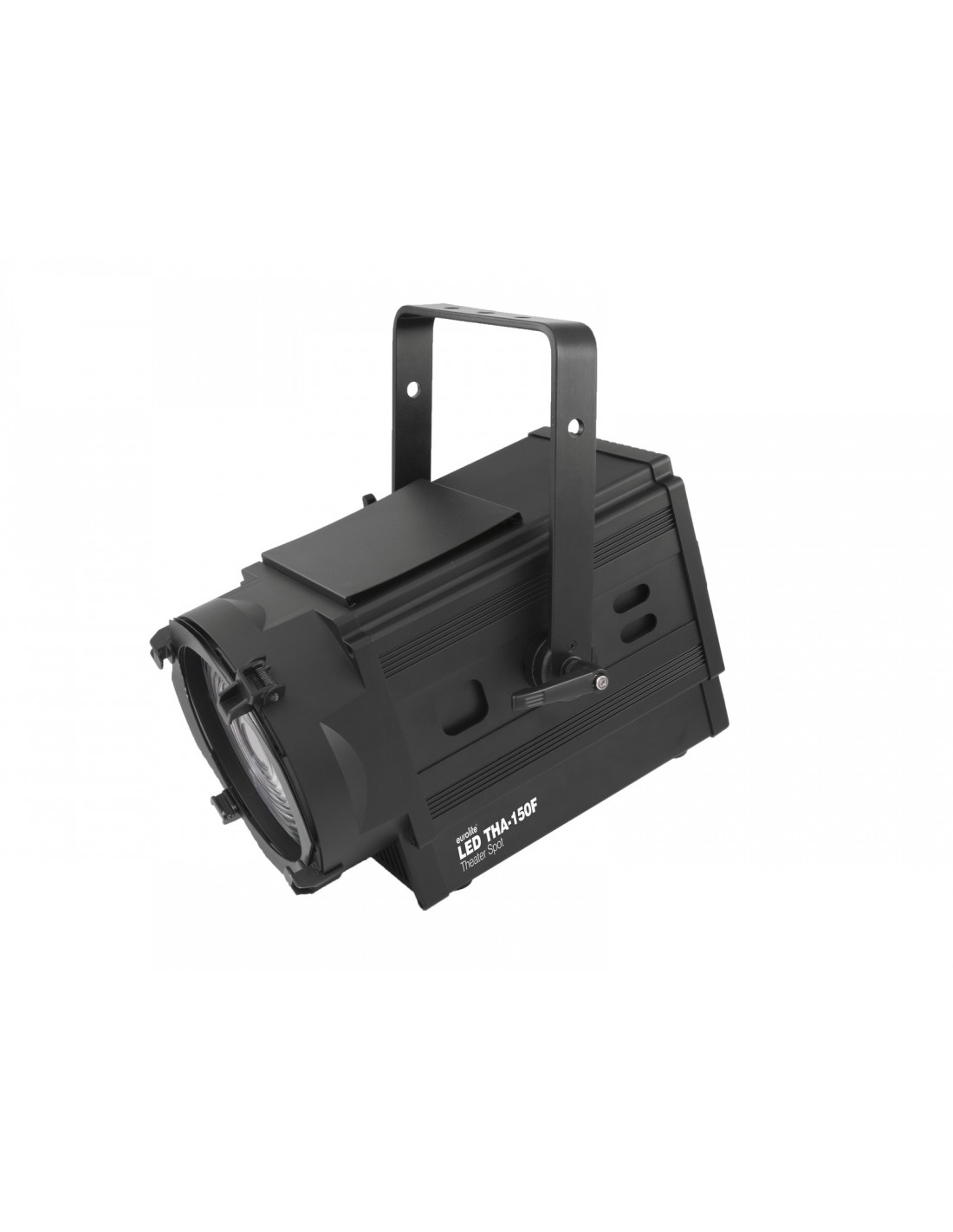

Fresnel spotlight, dim to warm, 170 W warm white/amber LED, CRI >90, quiet, DMX
- New LED technology that simulates the color temperature curve of a halogen lamp when dimming
- 16-bit technology for high-resolution dimming
- Various dimmer curves adjustable
- Stepless color blend
- Motorized zoom with 8-39° beam angle
- Strobe effect with adjustable speed
- Zoom adjustable via DMX or manually on the device
- Brightness adjustable via rotary dial
- Light output via Fresnel lens
- Metal housing
- Swivel mounting bracket
- Temperature-protected handle
- Additional rubber feet protect the device when positioned on the floor

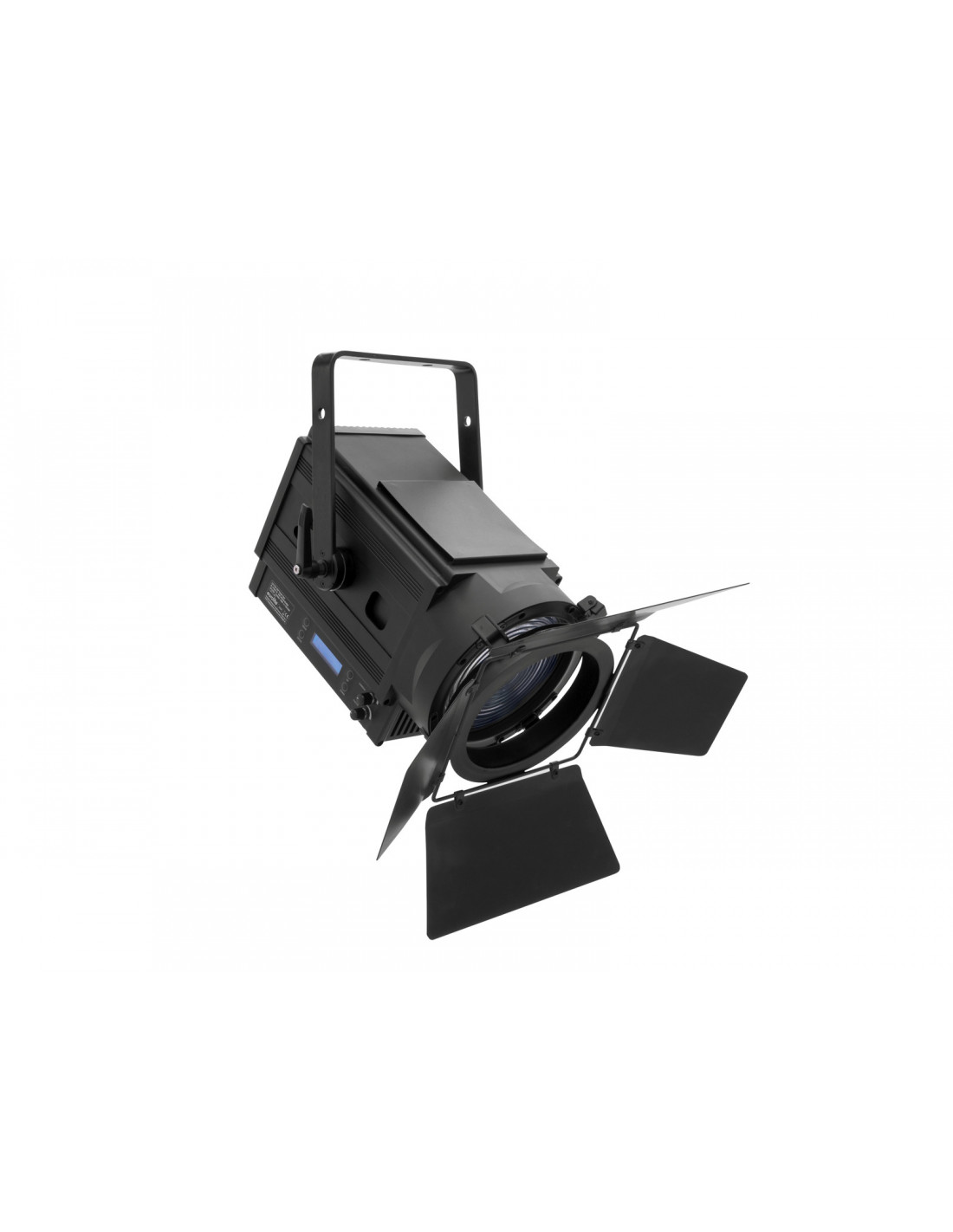

- Rotatable barn doors and color filter frame included in the delivery
- Stand-alone, master/slave and DMX mode

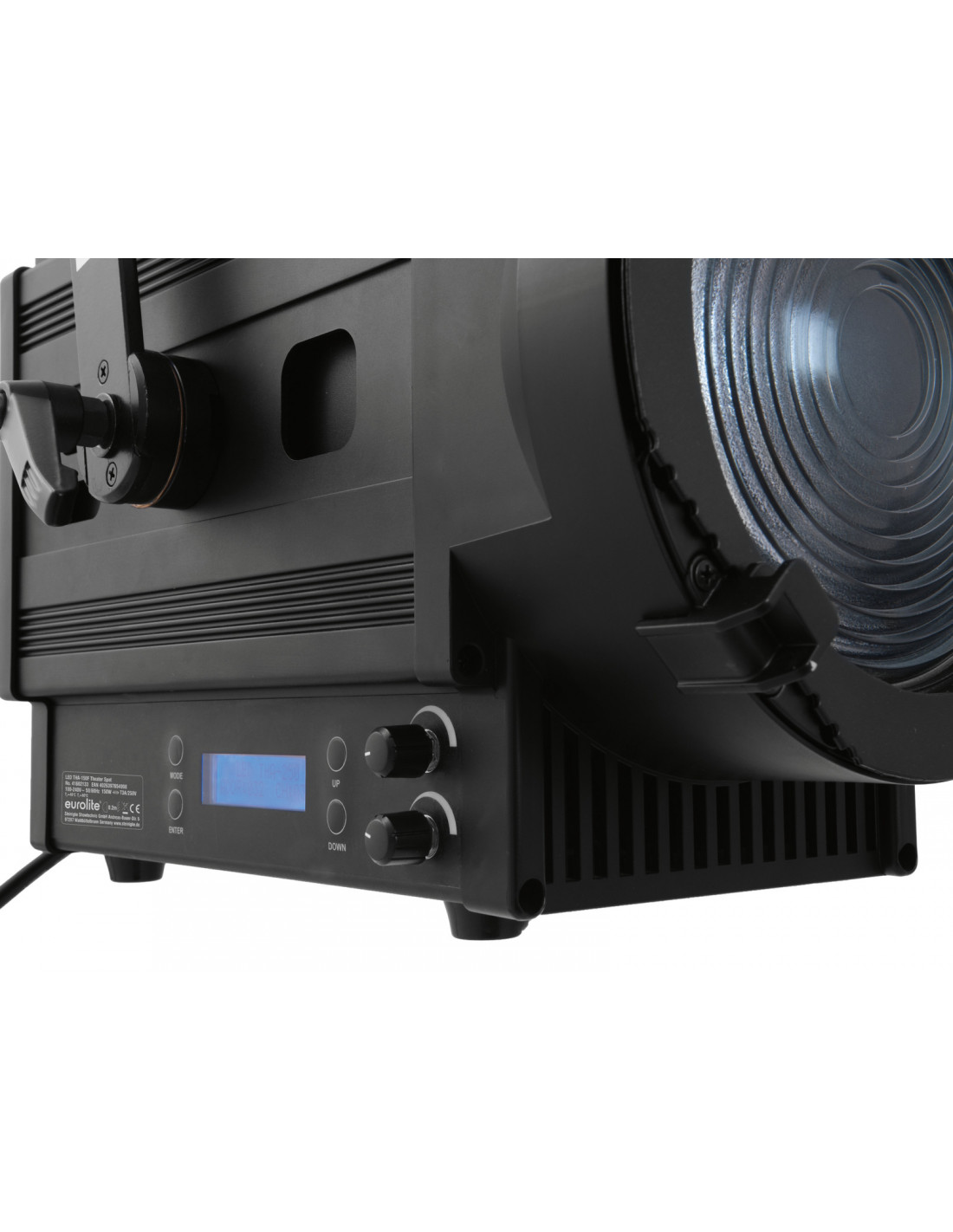

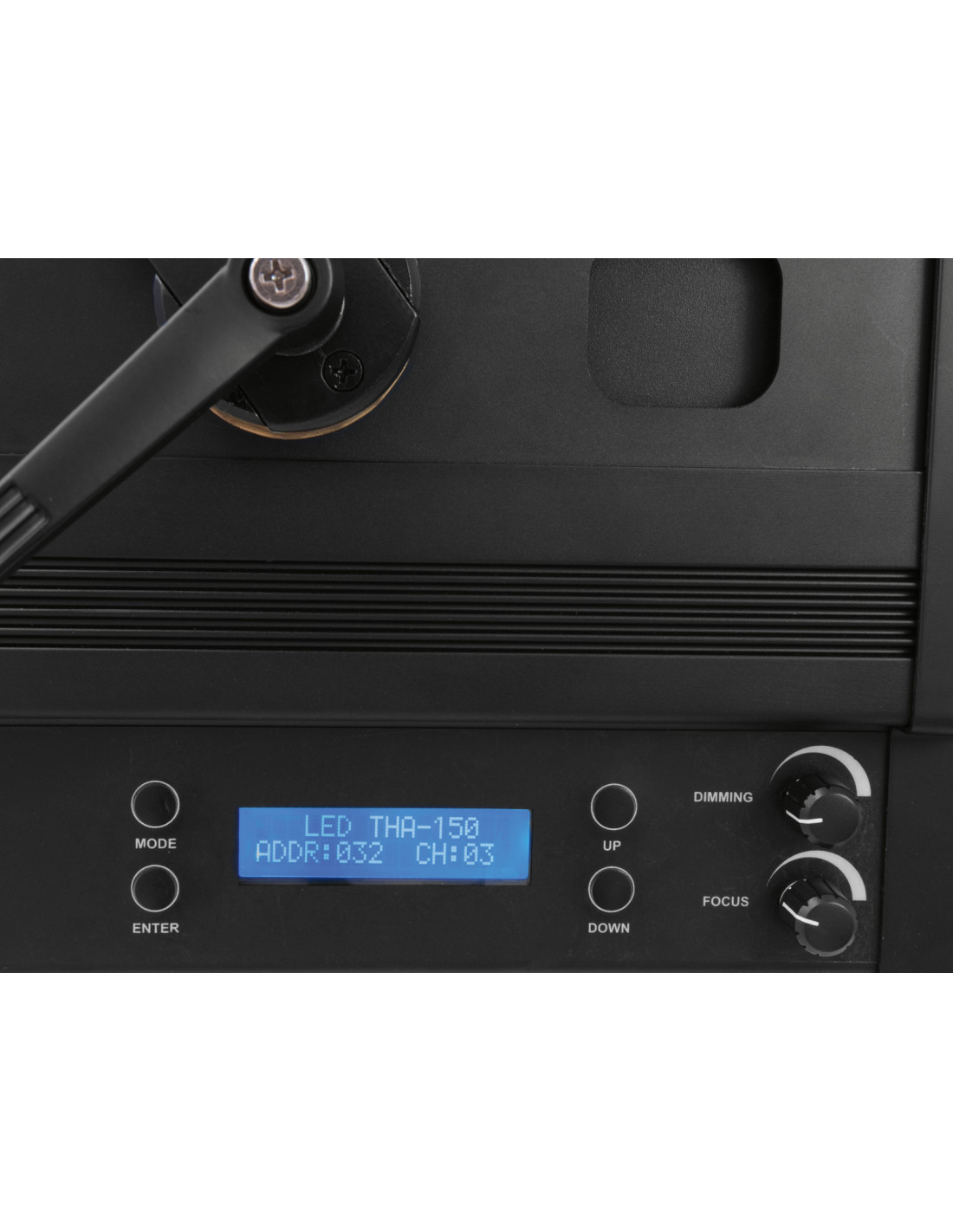

- Control panel with LC display for easy configuration
- Mains input and output for power linking up to 8 units
- LED: 1 x COB (chip-on-board) 170 W Dim to warm (homogenous color mix)
- Can be operated in 2; 6; 7 CH mode
- The device is cooled by temperature-controlled fan
- Controlling by RDM
- Preprogrammed in Light´J
- Flicker-free projection
- Very high color rendering index (CRI)
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 150 W |
| IP classification: | IP20 |

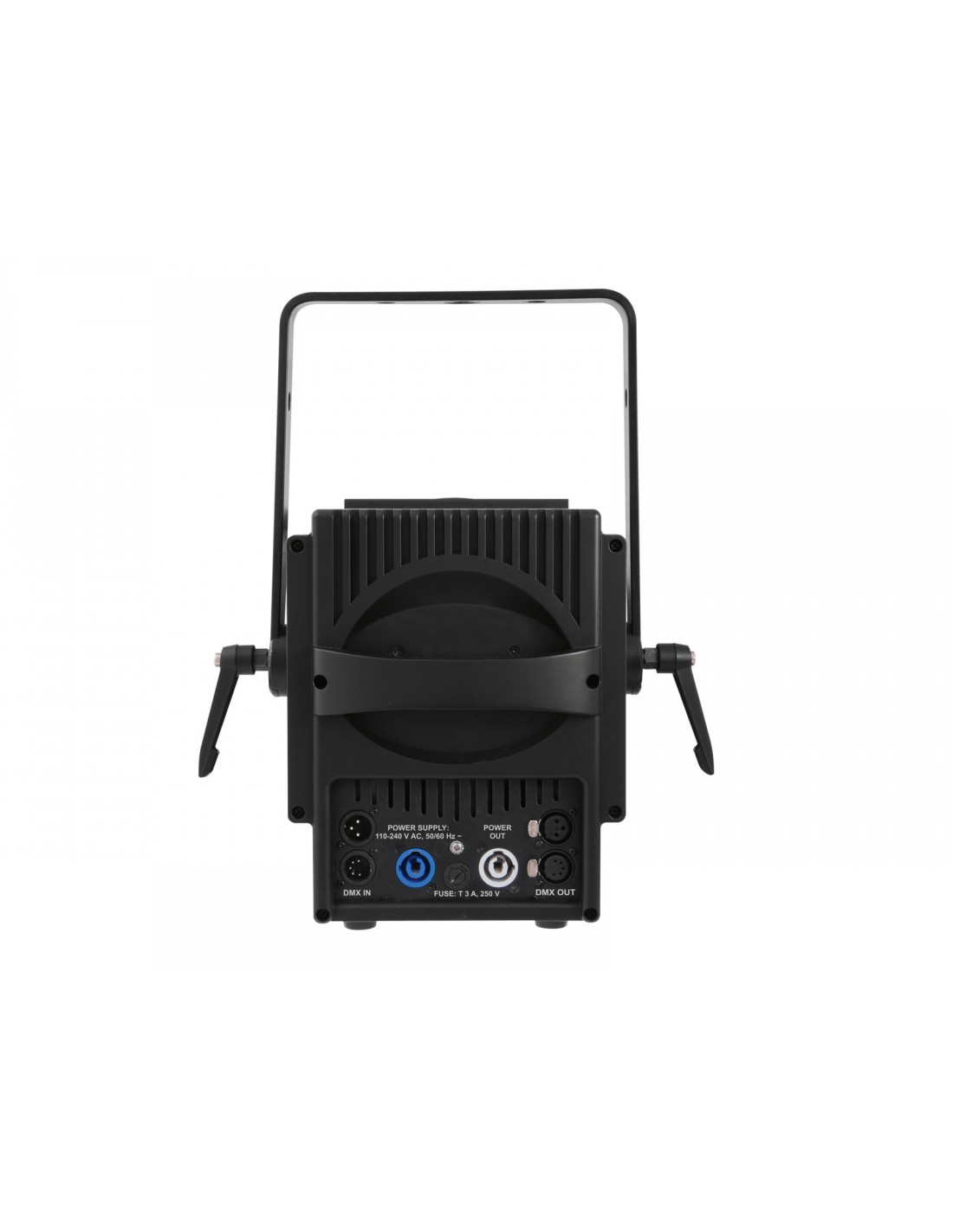

| Power connection: | Mains input P-Con (blue), mounting version power supply cord with safety plug |
| Power output: | P-Con (gray), mounting version |
| LED: | 1 x COB (chip-on-board) 170 W Dim to warm (homogenous color mix) |
| Equipment: | Zoom motor-driven |
| DMX channels: | 2; 6; 7 |
| DMX input: | 1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version
1 x 5-pin XLR (F) mounting version |
| Cooling: | Temperature-controlled fan |
| Control: | RDM; Light´J |
| Beam angle: | 8 - 55° |
| Beam angle (1/2 peak): | 8 - 39° |
| Beam angle (1/10 peak): | 12 - 55° |
| Color rendering index (CRI) more than: | 95 Ra |
| Housing color: | Black |
| Display type: | LCD display |
| Dimensions: | Length: 45,7 cm
Width: 33,6 cm
Height: 39,8 cm |
| Weight: | 9,40 kg |
| Noise classification: | Class 2 (slight noise) |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
