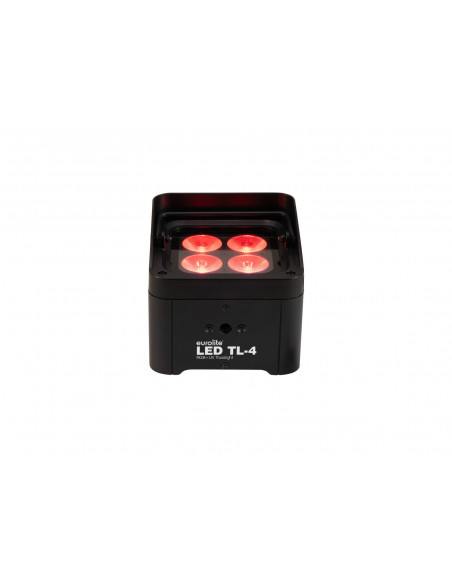

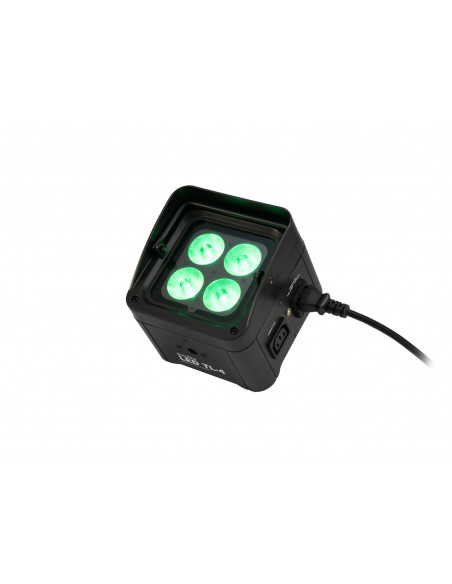

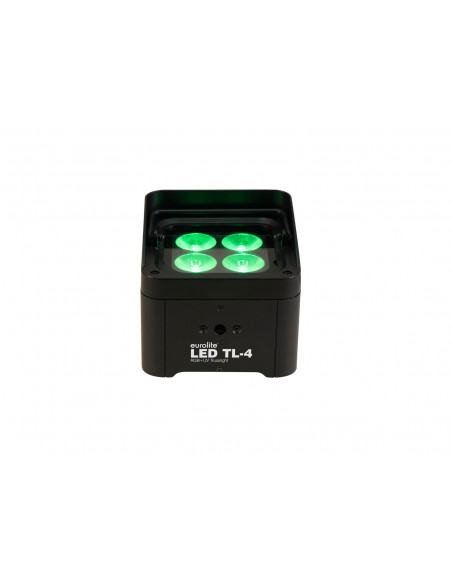

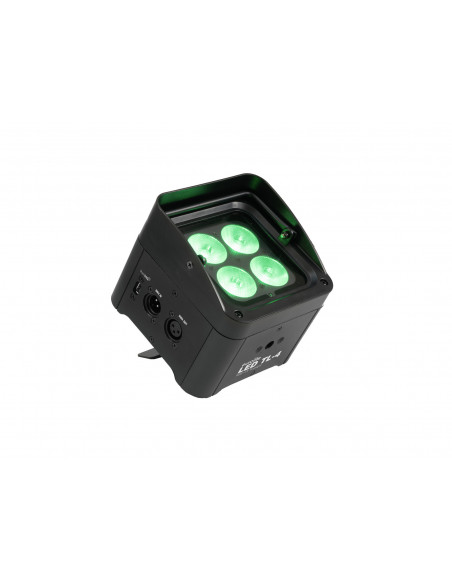

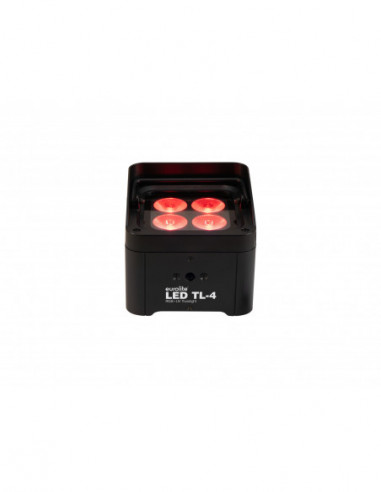

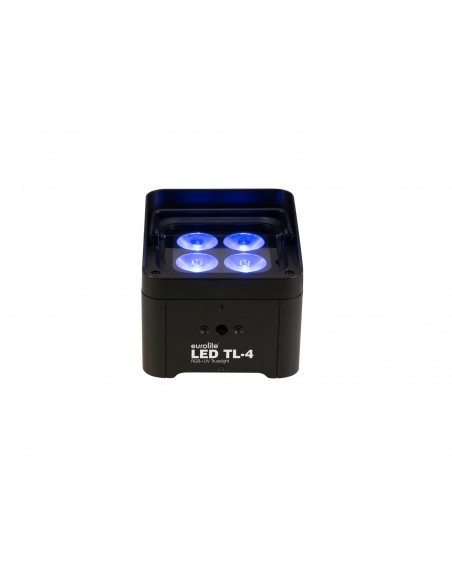

Variable truss light and uplight with bright 4 x 8 W RGB+UV LED
- Compact and bright - ideal as truss light
- Equipped with 4 x 8 W 4in1 LED in the colors red, green, blue and UV
- Stand-alone, master/slave and DMX mode
- Built-in auto and music show programs
- Direct color selection for 18 preset colors
- Stepless color blend, color change, dimmer and strobe effect
- Supports QuickDMX - the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (optional)
- Control panel with LED display for easy configuration
- Convenient wireless control via included IR remote control
- Ideal for booth construction, stages and anywhere trussing is used
- Perfect for ALUTRUSS 4-POINT SYSTEM QUADLOCK
- M10 threaded insert for suspended installation
- Folding foot adjustable in 5 steps for flexible placement
- Additional rubber feet protect the device when positioned on the floor
- Mains input and output for power linking up to 8 units
- LED: 4 x high-power 8 W 4in1 QCL RGB/UV (homogenous color mix)
- Can be operated in 3; 4; 4; 8 CH mode
- The device is cooled by passive convection
- Controlling by DMX; Sound to light via Microphone; IR remote control included; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW; LED EASY OPERATOR DELUXE
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 15 W |
| IP classification: | IP20 |
| Protection class: | Class I |
| Power connection: | IEC connector (M) mounting version
Power supply cord with safety plug included |
| Cable length: | Approx. 1,1 m |
| LED: | 4 x high-power 8 W 4in1 QCL RGB/UV (homogenous color mix) |
| Flash rate: | 0 - 20 Hz |
| DMX channels: | 3; 4; 4; 8 |
| DMX input: | 1 x USB, type A
1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Passive convection |
| Control: | DMX; Sound to light via Microphone; IR remote control included; Light´J; LED PC-Control 512; EASY SHOW; LED EASY OPERATOR DELUXE; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Beam angle: | 13° |
| Beam angle (1/2 peak): | 13° |
| Beam angle (1/10 peak): | 30° |
| Housing color: | Black |
| Display type: | Monochrome 4 digits 7-segment LED display |
| Dimensions: | Length: 15,5 cm
Width: 14,5 cm
Height: 13,0 cm |
| Weight: | 1,56 kg |
| Noise classification: | Class 0 (no noise at all) |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
