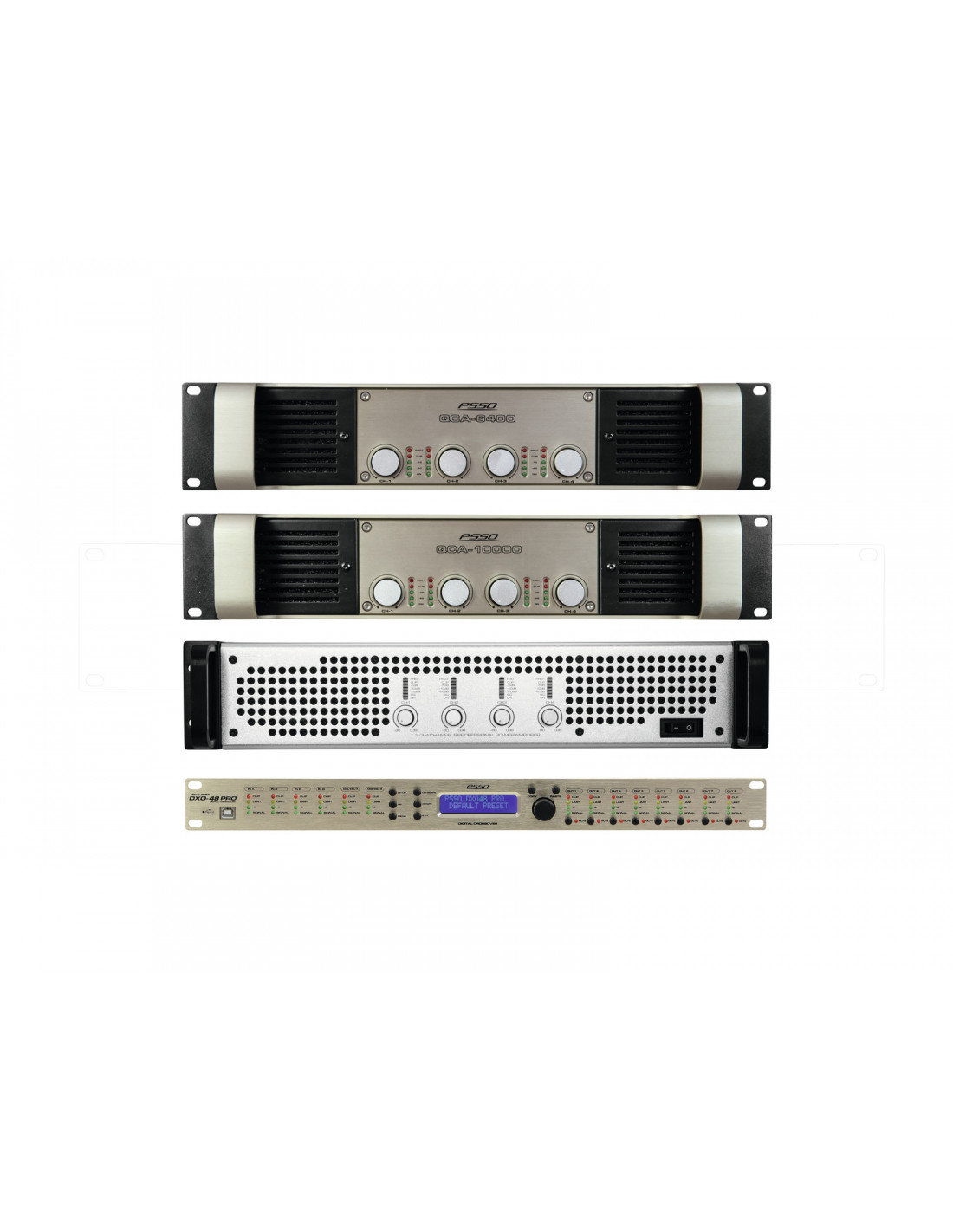

PSSO Amp Set MK2 for Line-Array L

Referência 11041070

4 288,57 €

Descrição
Detalhes do produto

PSSO QDA-4400 4-Channel Amplifier

PA amplifier with SMPS, 4 x 1100 W / 4 ohms, 4 x 650 W / 8 ohms

4-channel PA amplifier with class D circuitry
4 x 1100 W/4 ohms
Low weight and height due to integrated switch mode power supply
Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, international concerts)
3 operating modes can be selected (stereo, parallel or bridged)
4 level controls for precise level adjustment
Input sensitivity adjustable
LED VU meter and LEDs for activated protective circuit (protect), overload (clip), and signal per channel
Speaker switch-on delay
Complete protection set
Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
Speaker outputs via lockable Speaker plugs
Rugged steel chassis with aluminum front panel
Air flow from front to rear
The device is cooled by 2x temperature-controlled fan
(19") 48.3 cm rack installation 2 U

PSSO QCA-6400 4-Channel SMPS Amplifier

PA amplifier with SMPS, 4 x 1600 W / 2 ohms, 4 x 1400 W / 4 ohms

4-channel PA amplifier with class I circuitry
4 x 1400 W/4 ohms
Low weight and height due to integrated switch mode power supply
Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, international concerts)
3 operating modes can be selected (stereo, parallel or bridged)
4 level controls for precise level adjustment
Input sensitivity adjustable
LED VU meter and LEDs for activated protective circuit (protect), overload (clip), and signal per channel
Speaker switch-on delay
Complete protection set against short-circuit, overheat, clipping, overload, DC voltage and VHF signals
Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
Speaker outputs via lockable Speaker plugs
Rugged steel chassis with aluminum front panel
Rack installation with 2 units
Neutrik Speakon outputs
Air flow from front to rear
The device is cooled by 2x temperature-controlled fan
(19") 48.3 cm rack installation 2 U

PSSO QCA-10000 4-Channel SMPS Amplifier

PA amplifier with SMPS, 4 x 2500 W / 2 ohms, 4 x 2100 W / 4 ohms

4-channel PA amplifier with class I circuitry
4 x 2100 W/4 ohms
Low weight and height due to integrated switch mode power supply
Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, international concerts)
3 operating modes can be selected (stereo, parallel or bridged)
4 level controls for precise level adjustment
Input sensitivity adjustable
LED VU meter and LEDs for activated protective circuit (protect), overload (clip), and signal per channel
Speaker switch-on delay
Complete protection set against short-circuit, overheat, clipping, overload, DC voltage and VHF signals
Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
Speaker outputs via lockable Speaker plugs
Rugged steel chassis with aluminum front panel
Rack installation with 2 units
Neutrik Speakon outputs
Air flow from front to rear
The device is cooled by 2x temperature-controlled fan
Built with NEUTRIK connector
(19") 48.3 cm rack installation 2 U

PSSO DXO-48 PRO Digital Controller

Digital speaker management system with real-time network communication, 4 inputs and 8 outputs

Digital network speaker management system with 64-bit processing
Premium components ensure excellent sound-features
Flexible routing configurations for all standard mono and stereo output operating modes
4 analog inputs and 1digital AES/EBU interface (XLR)
8 analog outputs (XLR)
10-band parametric EQ per input and output
Parametric filters can be set as Bell, High Shelf, Low Shelf, Notch, Allpass
Active frequency filter types (Bessel, Butterworth and Linkwitz-Riley) with slopes up to 24 dB/octave split up the audio signal into different frequency bands
The intelligent software for PC and Mac allows convenient control with a computer
Full configuration and real-time network communication via the built-in Ethernet interface
Presets are easy to store, transfer and manage
Up to 80 user presets storable in the device via software
Control of all functions also possible via the controls at the front panel
Alphanumeric LCD screen with 2 lines of 16 characters each
Input sensitivity digitally adjustable
Inputs and outputs with 4-digit VU meter
Mute switch with LED indicator per output
Up to 2000 ms signal delay adjustable for the inputs and outputs
Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
Switchable phase (180°)
Lock function for protecting the program settings
Windows XP, Vista, 7, 8, 10 and Mac OS X 10.5.8 and better
Control your speaker systems more flexible than ever with the DXO Control app
DXO Control for iPad supports all functions of the PC software and is available for free from the app store
Digital signal processor
Controlling by DXO-Control App
The device can be connected via USB to the PC in connection with DXO Software; The device can be connected via RJ-45 (F) mounting version to the PC in connection with DXO Software
The firmware can be updated via the PC connection
(19") 48.3 cm rack installation 1 U

OMNITRONIC Front Panel Z-19U-shaped, steel,black 1U

U-front panel in different sizes

1 mm steel, black, powder-coated
Weight 465-1350 g (depending on the version)
1 U

ROADINGER Rack Profi KM 8U 55cm with wheels

PRO flightcase for 483 mm devices (19")

Profile rails with mounting facility for 483 mm units (19"), e.g. light PA amplifiers, power packs, additional equipment
Stomped profile rails for cage nuts
2 removable covers (double-door version)
High-quality workmanship with 9 mm multiplex birch wood, dark brown laminated
Aluminum profile frames (30 mm) with rounded edges
Three-leg, medium-sized steel ball corners
4 x recessed case handles with mounting dish and backing ring
4 butterfly lock
4 wheels with 2 brakes
4 x chrome case handles
Available in different height units (1 U = 44 mm)
High-quality workmanship with birch multiplex 9 mm, black, laminated
With castors
With profile rails suitable for (19") approx. 48 cm units
With extra large installation depth
8 U
Made in Europe

Weight:	62,70 kg
PSSO QDA-4400 4-Channel Amplifier
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	830 W 1/8 power
Output power:	4 x 650 W RMS (8 ohms) 4 x 1100 W RMS (4 ohms) 2 x 2000 W RMS bridged (8 ohms)
Power connection:	Mains input P-Con (blue), mounting version power supply cord with safety plug (provided)
Frequency range:	20 - 20000 Hz
S/N ratio:	>100 dB
THD:	<0,1 % at 1 kHz
Cooling:	2 x temperature-controlled fan , Air flow from front to rear
Impedance:	Input 20 kOhm , bal. Input 10 kOhm , unbal.
Gain:	39,9 dB
Circuitry:	Class D
Slew rate:	>10 V/µs
Damping factor:	>500
Crosstalk:	>65 dB
Control elements:	Power switch, mode switch (stereo/parallel/bridged), level control per channel, Input sensitivity switch
Controls:	Softstart; overheat; overload; short-circuit; progressive volume; VHF; limiter
Status LED:	Power, level meter, clip, protect
Connections:	Input: line via 4 x 3-pin XLR Output: line via 4 x 3-pin XLR Output: speakers via 4 x speaker built-in socket (F)
Input sensitivity:	0,775 V; 1,0 V; 1,81 V , switchable; 32 dB; 37 dB; 39,3 dB , switchable
Housing design:	(19") 48.3 cm rack installation 2 U
Dimensions:	Width: 48,3 cm Depth: 46,1 cm Height: 8,9 cm
Weight:	9,50 kg
PSSO QCA-6400 4-Channel SMPS Amplifier
Power supply:	230 V AC, 50 Hz
Power consumption:	820 W 1/8 power
Output power:	4 x 1600 W RMS (2 ohms) 4 x 1400 W RMS (4 ohms) 4 x 800 W RMS (8 ohms) 2 x 3200 W RMS bridged (4 ohms) 2 x 2800 W RMS bridged (8 ohms)
Power connection:	Fixed power supply cord with safety plug
Frequency range:	20 - 20000 Hz
S/N ratio:	>80 dB
THD:	<0,05 % at 1 kHz
Cooling:	2 x temperature-controlled fan , Air flow from front to rear
Impedance:	Input 20 kOhm , bal. Input 10 kOhm , unbal.
Gain:	40,3 dB/ 0,775 V 38 dB/ 1,0 V 35,1 dB/ 1,4 V
Circuitry:	Class I
Slew rate:	>10 V/µs
Damping factor:	>800
Crosstalk:	>65 dB
Control elements:	Power switch, level control per channel, mode switch (stereo/parallel/bridged), Input sensitivity switch
Controls:	Overheat; overload; short-circuit; DC voltage; softstart; VHF
Status LED:	Power, level meter, clip, protect
Connections:	Input: line via 4 x 3-pin XLR Link: line via 4 x 3-pin XLR Output: speakers via 4 x speaker built-in socket (F)
Input sensitivity:	0,775 V; 1,0 V; 1,4 V , switchable; 26 dB; 32 dB; 38 dB , switchable
Housing design:	(19") 48.3 cm rack installation 2 U
Dimensions:	Width: 48,3 cm Depth: 44,5 cm Height: 8,9 cm
Weight:	13,45 kg
PSSO QCA-10000 4-Channel SMPS Amplifier
Power supply:	230 V AC, 50 Hz
Power consumption:	1150 W 1/8 power
Output power:	4 x 2500 W RMS (2 ohms) 4 x 2100 W RMS (4 ohms) 4 x 1300 W RMS (8 ohms) 2 x 5000 W RMS bridged (4 ohms) 2 x 4200 W RMS bridged (8 ohms)
Power connection:	Fixed power supply cord with safety plug
Frequency range:	20 - 20000 Hz
S/N ratio:	>80 dB
THD:	<0,05 % at 1 kHz
Cooling:	2 x temperature-controlled fan , Air flow from front to rear
Impedance:	Input 10 kOhm , unbal. Input 20 kOhm , bal.
Gain:	40,3 dB/ 0,775 V 38 dB/ 1,0 V 35,1 dB/ 1,4 V
Circuitry:	Class I
Slew rate:	>10 V/µs
Damping factor:	>800
Crosstalk:	>65 dB
Control elements:	Power switch, level control per channel, mode switch (stereo/parallel/bridged), Input sensitivity switch
Controls:	Overheat; overload; short-circuit; softstart; DC voltage; VHF
Status LED:	Power, level meter, clip, protect
Connections:	Input: line via 4 x 3-pin XLR (F) mounting version Output: line via 4 x 3-pin XLR (M) mounting version Output: speakers via 4 x 4-pol SpeakON mounting version (F)
Input sensitivity:	0,775 V; 1,0 V; 1,4 V , switchable; 26 dB; 32 dB; 38 dB , switchable
Use of brands:	Built with NEUTRIK connector
Housing design:	(19") 48.3 cm rack installation 2 U
Dimensions:	Width: 48,3 cm Depth: 44,5 cm Height: 8,9 cm
Weight:	13,90 kg
PSSO DXO-48 PRO Digital Controller
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	10,00 W
Power connection:	Mains input IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range:	10 - 40000 Hz
THD:	<0,005 % at 1 kHz
Network connection:	Protocol: Ethernet TCP/IP via 1x RJ-45 (F) mounting version
DSP:	Digital signal processor
Crossover frequency:	20-20000 Hz
Impedance:	Input 10 kOhm Input XLR (AES/EBU): 110 Ohm Output 50 Ohm
Gain:	Input: -50 dB to +12 dB Output: -50 dB to +12 dB
Filter:	Linkwitz-Riley; Butterworth; Bessel; 6db/oct; 12db/oct; 18db/oct; 24db/oct
Delay:	0 - 2000 ms
Dynamic range:	Input: 118 dB Output: 114 dB
Control:	DXO-Control App
Sample rate:	65 kHz
Connections:	Input: line via 4 x 3-pin XLR Output: line via 8 x 3-pin XLR
Max. level:	Input: +22 dBu Output: +12 dBu
USB port:	Typ B
PC connect:	DXO Software via USB DXO Software via RJ-45 (F) mounting version, firmware can be updated
Housing design:	(19") 48.3 cm rack installation 1 U
Dimensions:	Width: 48,3 cm Depth: 18,0 cm Height: 4,45 cm
Weight:	2,45 kg
OMNITRONIC Front Panel Z-19U-shaped, steel,black 1U
Diameter mounting holes:	7 mm
Material thickness:	1 mm
Mounting height:	Approx. 4.5 cm (1 U)
Housing design:	1 U
Dimensions:	Width: 48,3 cm Height: 4,45 cm
Weight:	300 g
ROADINGER Rack Profi KM 8U 55cm with wheels
Maximum load:	100 kg
Transport aid:	Castors
Material:	Birch multiplex, 9 mm
Color:	Black, laminated
Front panel width:	(19") approx. 48 cm
Mounting height:	Approx. 35.5 cm (8 U)
Mounting depth:	550 mm
Housing design:	8 U
Dimensions:	Width: 53 cm Depth: 71 cm Height: 52 cm
Weight:	23,10 kg
