- Sensitivity (1W @ 1m): 125 dB, all patch cables for connecting the top are included with delivery
- 210 SUBWOOFER: Equipment: 2x 10" woofer, Bluetooth receiver, SNR:> 100 dB, 5 DSP presets, connections: 2x XLR/jack combo input, 2x XLR line output
- 2x speaker twist outputs, housing: 15 mm plywood with textured paint, 2x M20 speaker flanges, dimensions: 33 x 66 x 56 cm, weight: 26.7 kg each
- 104 TOP PART: Equipment:1x 4" woofer, coaxial 1" tweeter, beam angle: 90°, housing: 12 mm plywood with textured paint, dimensions: 23 x 13 x 16.5 cm each, weight: 3.6 kg each
Active PA system with variable angle of the tweeters!
The V-Array series from Pronomic offers professional active systems for a wide range of applications. The active subwoofers supply the passive top parts, which, as a special feature, can be adjusted in angle. The adjustable arrangement allows you to target your sound to your audience. From solo entertainers to event technicians, you have the right setup for every need.

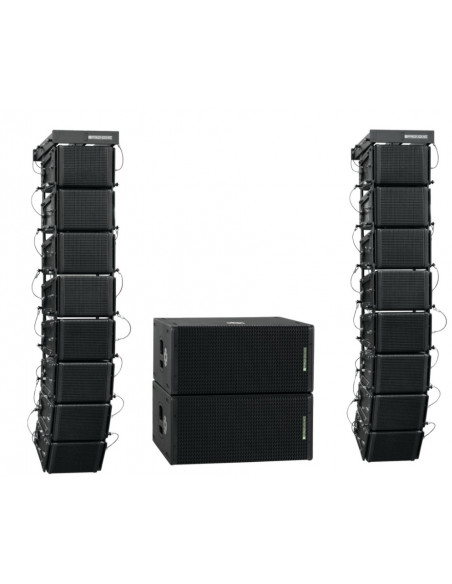

V-Array Club Set

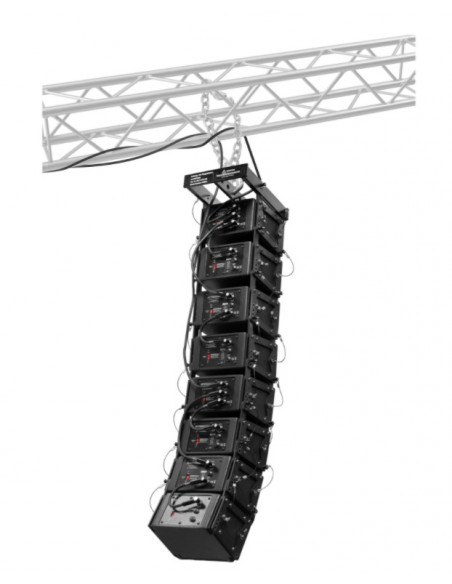

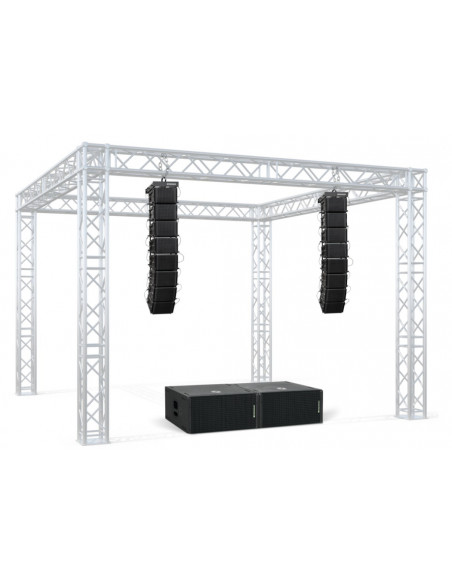

The club set consists of two subwoofers and 16 tops. With the help of the flying frame, the tweeters are attached to an existing truss system, allowing for homogeneous sound reinforcement for the audience with the angular arrangement of the speakers to each other. All cables for connecting the individual components are included in the delivery.

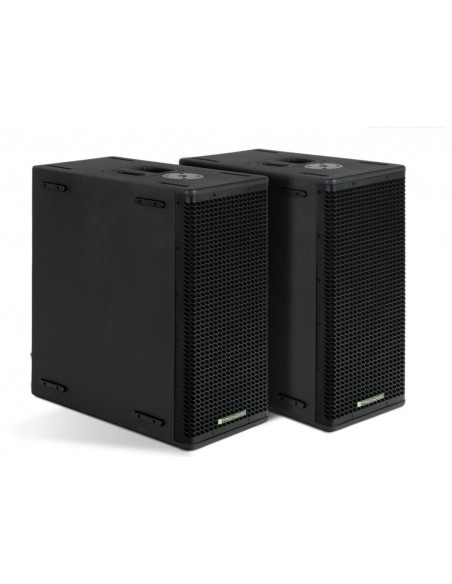

210 SA Subwoofer
The subwoofer with a 15 mm plywood housing has two speakers, each 10" (25.4 cm) in diameter, each of which runs on a Class D power amplifier. The load outputs for the tops are in speaker twist format and can be used with a stereo or a mono signal. For quick adaptation to the current application, the subwoofer has 5 DSP presets, and the built-in Bluetooth® receiver can even be used to listen to the music during breaks play wirelessly.

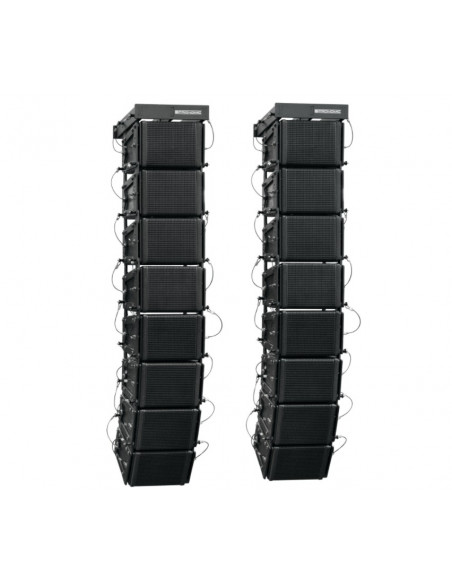

104 TP Tops

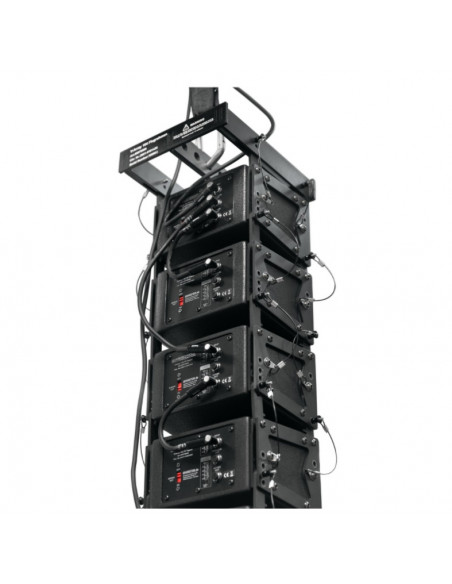

The passive 2-way tops each have a 4" (10 cm) membrane and a coaxially arranged 1" tweeter. A special feature of the Pronomic V-Arrays: All top parts have a connection mechanism that allows connection of several elements to each other and adjustment of their angle (in 5° increments). For help with finding your own configuration, operating instructions are included
