Digital 2-channel wireless microphone system, 2.4 GHz

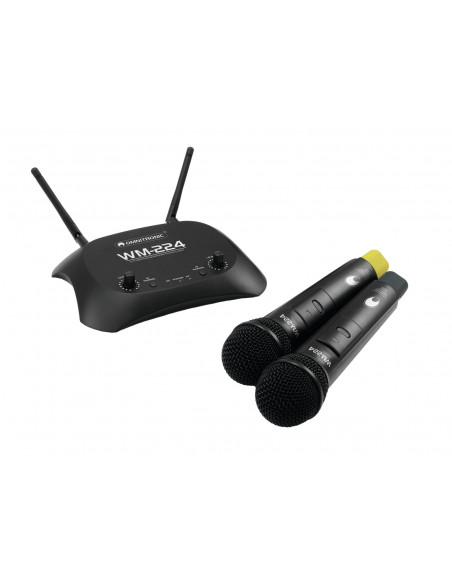

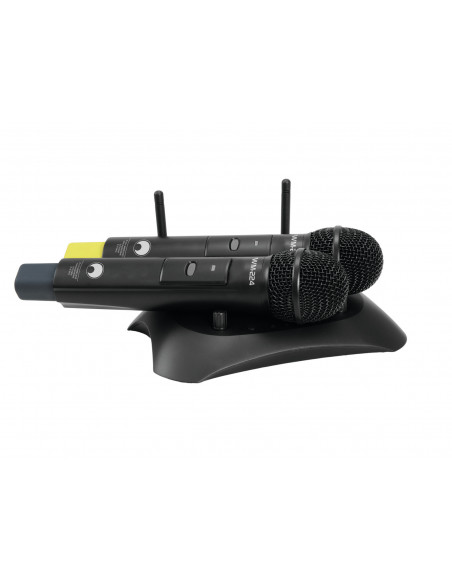

- Wireless microphone system includes receiver unit and 2 hand-held microphones with integrated PLL transmitter
- Digital transmission in the 2.4 GHz range provides for high resistance to interference and unique sound quality
- 2 channels with separate level control
- Quick pairing at the touch of a button
- 16 frequencies (2,404-2,474 MHz) for each channel can be selected at the receiver
- 6.3 mm jack output for mixed signal
- Incl. power unit and jack cable
- License-free and approved in the EU
- Use a operating range up to 30m in the open air
- Use a operating range up to 20m in buildings

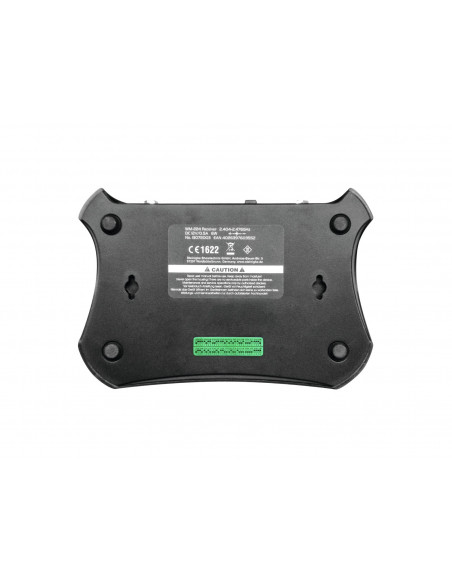

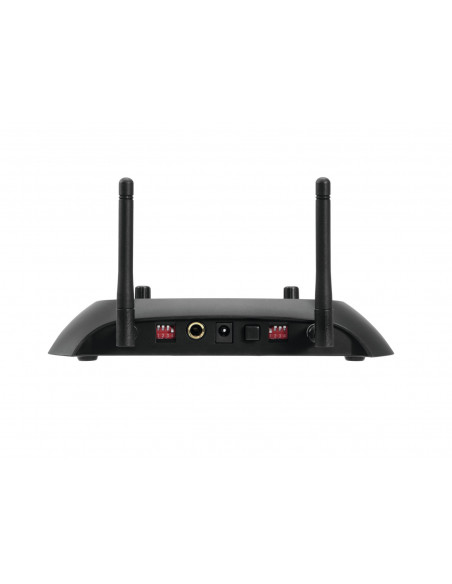

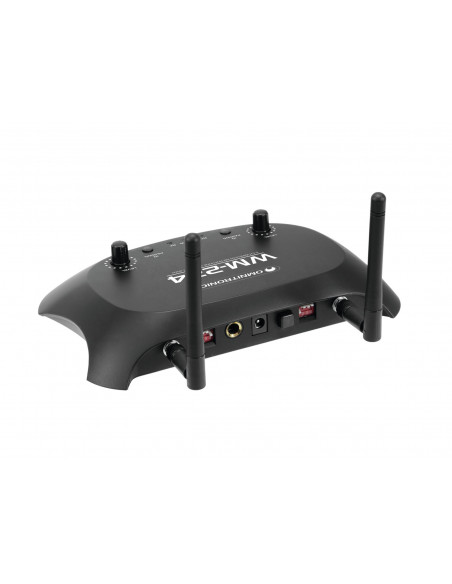

Receiver
Microphone
| Type: | Wireless set |
| Number of channels: | 2 |
| Frequency range: | 50 - 15000 Hz |
| THD: | <0,1 % at 1 kHz |
| Impedance: | 600 Ohm |
| Connections: | Output: Microphone via 1 x 6.3 mm plug (unbal.) |
| Frequency band: | 2.4 GHz |
| Frequency selection: | 16 Switchable frequencys |
| RF power output: | 10 mW |
| Range: | 30 m in the open air
20 m in buildings |
| Switch: | On/off switch |
| Material: | Plastic |
| Weight: | 890 g |
| Receiver |
| Power supply: | 100-240 V AC, 50/60 Hz
12 V DC |
| Power consumption: | 2,7 W |
| Power connection: | Mains input Coaxial power connector (M) power supply cord with AC adapter (provided) |
| Housing design: | Desktop console housing |
| Microphone |
| Power supply: | 3 V DC |
| Power connection: | Battery/battery pack |
| Capsule type: | Dynamic |
| Polar pattern: | Cardioid |
| Battery: | 2 x Mignon (AA) (provided) |
| Dimensions: | Length: 26,0 cm
Diameter: Ø 5,5 cm |
| Weight: | 217 g |
