Microfone Emissor Mao UHF 1Ch VM202M
Microfone Emissor Mao UHF 1Ch VM202M
Microfone Emissor Mao UHF 1Ch VM202M
Microfone Emissor Mao UHF 1Ch VM202M

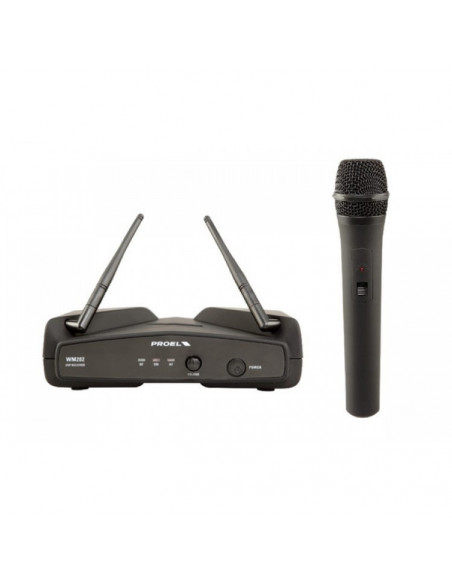

WM202 PROEL Microfone Emissor Mao UHF

WM202M
113,01 €
  • Handheld fixed frequency wireless microphone system
  • 863 - 865 Mhz frequency range
  • 30 meter / 100 feet range
  • 50 Hz - 15 KHz frequency response
  • -105 dB signal / noise ratio
  • Cardioid dynamic capsule
  • Low-profile desktop receiver with two foldable antennas
  • Up to 3 systems usable in the same location

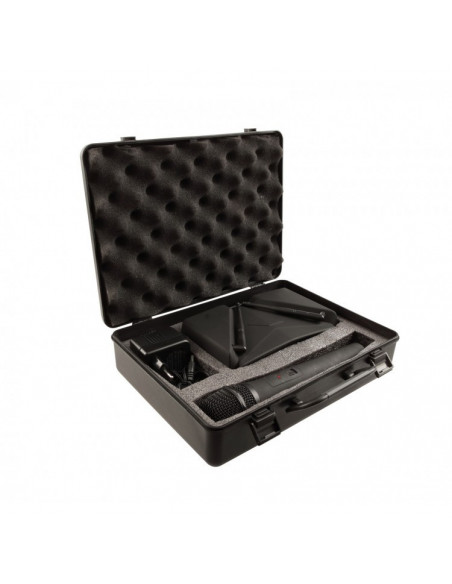

  • ABS carrying and storage case

HANDHELD TRANSMITTER
RF Frequency Band   863 ~ 865 Mhz
Frequency Stability  0,0002
Modulation Method FM ( F3E )
RF Max deviation  ± 40 Khz
Audio Frequency Response  50 Hz - 15 Khz
Transducer Type  Moving Coil
Polar Pattern  Cardioid
Spurious Emission  Under limits EN 300422
RF Power  <10 dBm
Power Supply  2 x 1,5 V alkaline  Battery
Dimension  ( W x D x H ) mm 235 x 50 x 50

RECEIVER
RF Frequency Band   863 ~ 865 Mhz
Frequency Stability  0,0002
RF Image spurious Rej. - 70 dB
RF Interference reject > 70 dB
RF Sensitibily  - 105 dB
Audio Frequency Response  50 - 15 Khz
THD < 1%
Dynamic Range  >100 dB
S/N Ratio  >70 dB
Output Connector xlr  Balanced
  1/4 jack  unbalanced
Power supply  dc 13-15 Vdc 200 mmA
Dimension  ( W x D x H ) 175 x 135 x 45
