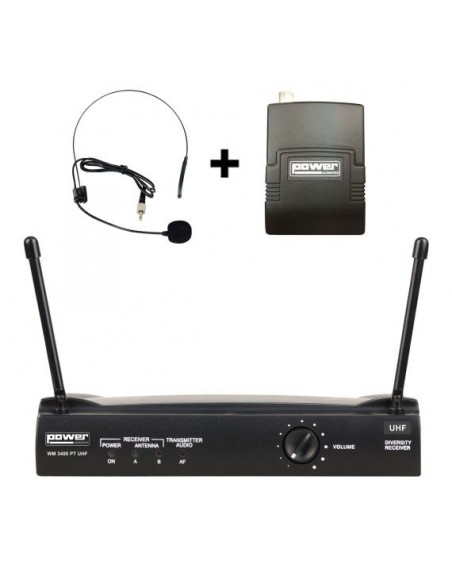

The WM3400 MH UHF 823 is a wireless headset microphone from the brand Power Acoustics composed of a 1 channel receiver and its pocket transmitter in UHF band (823 Mhz). Easy to install and efficient, this system can be used for speeches, singing, be connected to an active speaker or an amplified system.
CHARACTERISTICS OF THE UHF PT TRANSMITTER
- Switchable line / microphone level + volume
- Dynamic level> 110 dB
- Plastic case, light and robust
- 9V battery powered
- Mini jack 3.5 mono connector for guitar cable and headband adaptation

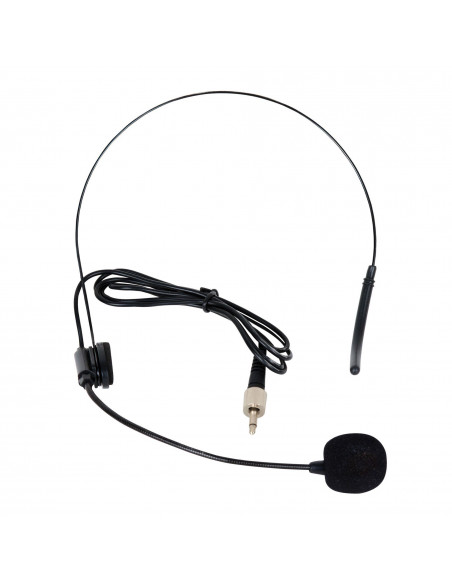

CHARACTERISTICS OF THE MICROPHONE
- Capsule mounted on adjustable hose
- Extremely thin and light arch
- Mini jack 3.5 mono connector
- Maximum SPL level: 130dB

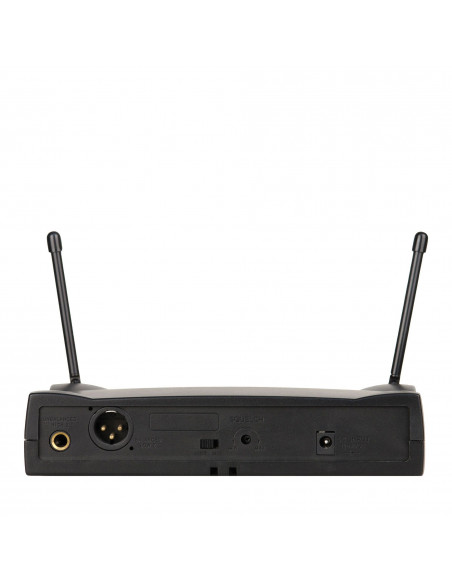

RECEIVER CHARACTERISTICS
- Frequencies: 823 Mhz
- Power supply: 12-18 VDC or 220 / 50Hz depending on the model
- Consumption: 3W
- SIN report:> 80 db
- Sensitivity: 60dB SIN (12 dbu)
- Efficiency level: 0-2V
GLOBAL SYSTEM
- Frequency stability: ± 0.005%
- Maximum deviation: ± 10KHZ
- Frequency response: 40Hz-20KHz
- SIN report:> 800 db
- Range:> 80 db dynamic audio
- T.H.D. <5%
