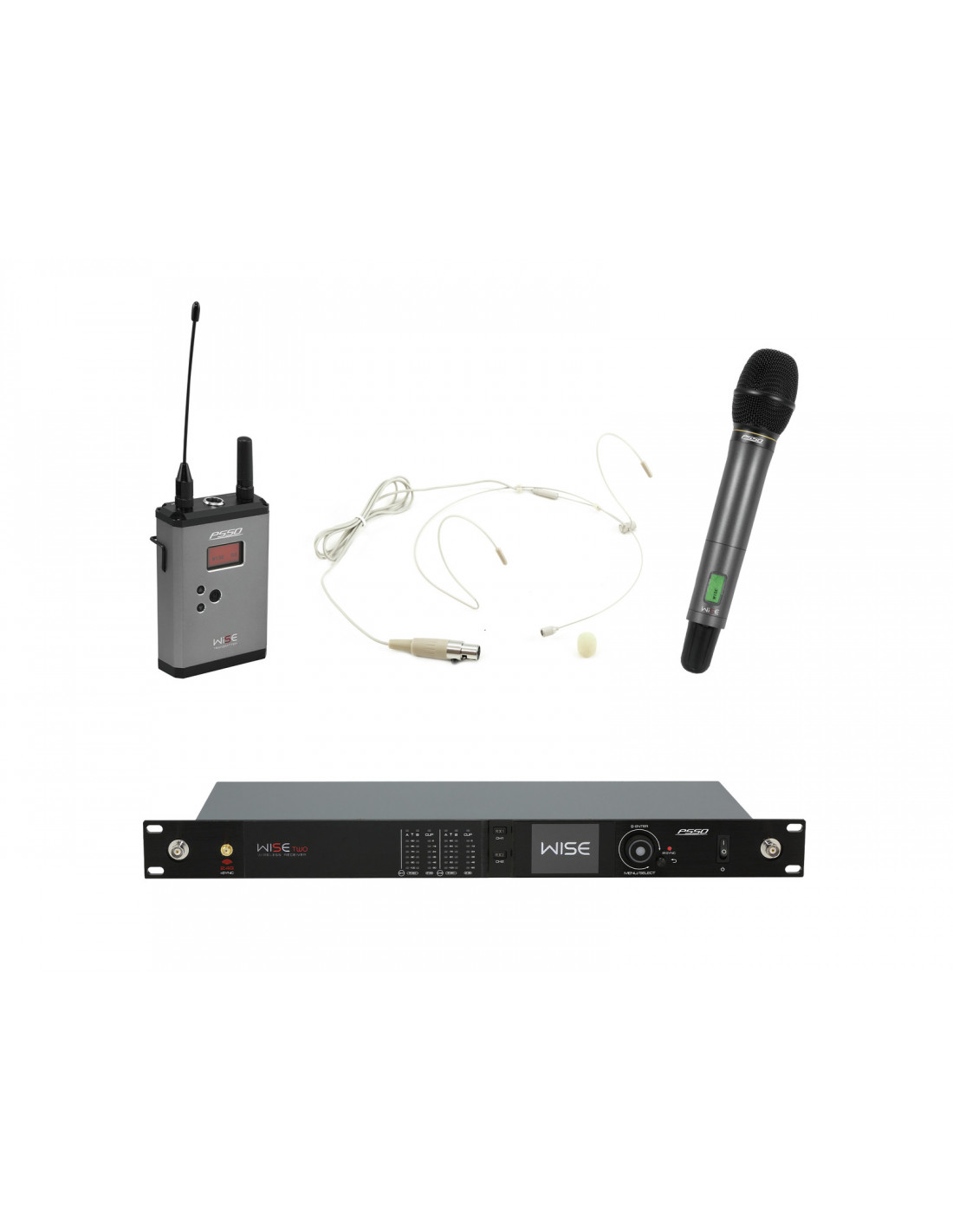

True diversity wireless receiver incl. microphone, pocket transmitter and headset
PSSO WISE TWO 2-Channel True Diversity Receiver 518-548MHz
License-free true diversity wireless receiver with 2.4GHz iSync control management
- Professional multifrequency wireless receiver with true diversity reception for stage use
- High-grade components and intelligent features ensure best performance and high reliability
- Ideal for large multi-channel systems (parallel operation possible up to 26 systems)
- 100 preset channels in 10 channel groups
- 2.4 GHz iSync - real-time transmitter synchronization and monitoring
- Automatic frequency setup
- Pilot tone technology (PLL) and noise squelch for interference-free operation
- High-definition LCD color display
- Multifunctional jogdial for menu settings
- Lock function avoids accidental changing of settings
- XLR and 6.3 mm jack output
- Mic/line selector switch
- Ground lift switch
- 2 detachable BNC antennas allow for use with external antenna divider
- USB port for software updates
- 2 receivers can share a single power adapter
- Delivery includes practical transport bag with jack cable and power adapter
- Matching transmitters optionally available
- 483 mm rack installation
- License-free and approved in large parts of the EU (please check on a country-by-country basis)
- Available frequency ranges: 518-548 MHz, 638-668 MHz, 823-832 MHz and 863-865 MHz
- Use a operating range up to 60m with line of sight
- (19") 48.3 cm rack installation 1 U
PSSO WISE Dynamic Wireless Microphone 518-548MHz
Hand-held microphone with PLL multifrequency transmitter
- Dynamic hand-held microphone with UHF pilot tone technology (PLL)
- Rugged, ergonomic aluminum housing
- Matches receivers WISE ONE and WISE TWO
- High-grade components and intelligent features ensure best performance and high reliability
- 2.4 GHz iSync - real-time synchronization and monitoring through receiver
- Editable user name and user color
- High-definition LCD screen
- RF output switchable 10mW/30mW/50 mW
- Gain level adjustable
- Lock function avoids accidental changing of settings
- Directly compatible with Shure's SM58 capsule
- License-free and approved in large parts of the EU (please check on a country-by-country basis)
- Available frequency ranges: 518-548 MHz, 638-668 MHz, 823-832 MHz and 863-865 MHz
- Polar pattern: Cardioid
- Use a operating range up to 60m with line of sight
PSSO WISE Bodypack 518-548MHz
Bodypack transmitter with PLL multifrequency transmitter
- Matches receivers WISE ONE and WISE TWO
- 2.4 GHz iSync - real-time synchronization and monitoring through receiver
- Editable user name and user color
- High-definition LCD screen
- RF output switchable
- Gain level adjustable
- Lock function avoids accidental changing of settings
- License-free and approved in large parts of the EU (please check on a country-by-country basis)
- Available frequency ranges: 518-548 MHz, 638-668 MHz, 823-832 MHz and 863-865 MHz
- Use a operating range up to 60m with line of sight
PSSO WISE Headset for Bodypack
Headset microphone for WISE bodypack transmitter
- Polar pattern: Omnidirectional
| Weight: | 3,50 kg |
| PSSO WISE TWO 2-Channel True Diversity Receiver 518-548MHz |
| Type: | Receiver |
| Power supply: | 100-240 V AC, 50/60 Hz
12-15 V DC 1,5 A |
| Power consumption: | 8 W |
| Power connection: | Mains input Coaxial power connector (M) power supply cord with AC adapter (provided) |
| Number of channels: | 2 |
| Frequency range: | 50 - 20000 Hz |
| S/N ratio: | >96 dB |
| THD: | <0,1 % at 1 kHz |
| Gain: | Microphone -32 dB to +4 dB
Output: -32 dB to +4 dB |
| Display type: | Multicolor LCD display |
| Control elements: | Power switch, groundlift selector, menu, encoder |
| Connections: | Antenna via 2 x BNC (F) 12-15 V
Antenna via 1 x SMA (F) mounting version
Output: mic/line via 2 x 3-pin XLR
Output: mic/line via 2 x 6.3 mm jack socket (mono) mounting version
Output: for audio/data link via 2 x BNC (F) |
| Channels: | Microphon chanal: 2 x mono with Mic-line switch via XLR or jack |
| Frequency band: | UHF 518 - 548 MHz |
| Frequency selection: | 100 Switchable frequencys
In 10 groups
Frequencies automatically scannable |
| Modulation: | FM |
| Range: | 60 m with line of sight |
| Switch: | Low cut switch |
| Diversity: | True diversity |
| Material: | Metal |
| Color: | Black |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Dimensions: | Width: 48 cm
Depth: 27 cm
Height: 4,3 cm |
| Weight: | 2,9 kg |
| PSSO WISE Dynamic Wireless Microphone 518-548MHz |
| Type: | Transmitter |
| Power supply: | 3 V DC |
| Capsule type: | Dynamic |
| Polar pattern: | Cardioid |
| Battery: | 2 x Mignon (AA) (not included) |
| Frequency range: | 50 - 18000 Hz |
| Gain: | -28 dB to +4 dB |
| Display type: | Multicolor LCD display |
| Frequency band: | UHF 518 - 548 MHz |
| Frequency selection: | Switchable frequencys |
| Modulation: | FM |
| RF power output: | 10 mW; 30 mW; 50 mW |
| Range: | 60 m with line of sight |
| Color code: | Color indicator and name adjustable |
| Switch: | On/off/mute switch |
| Material: | Aluminum |
| Dimensions: | Length: 26,5 cm
Diameter: Ø 5,2 cm |
| Weight: | 390 g |
| PSSO WISE Bodypack 518-548MHz |
| Type: | Pocket transmitter |
| Power supply: | 3 V DC |
| Battery: | 2 x Mignon (AA) (not included) |
| Frequency range: | 50 - 18000 Hz |
| Gain: | -32 dB to +4 dB |
| Display type: | Multicolor LCD display |
| Connections: | Microphone via 1 x Mini XLR (F) 3-pin 5 V |
| Frequency band: | UHF 518 - 548 MHz |
| Modulation: | FM |
| RF power output: | 50 mW; 30 mW; 10 mW |
| Range: | 60 m with line of sight |
| Color code: | Color indicator and name adjustable |
| Switch: | On/off switch; Mute control |
| Material: | Metal |
| Color: | Grey |
| Dimensions: | Width: 7 cm
Depth: 3 cm
Height: 13 cm |
| Weight: | 190 g |
| PSSO WISE Headset for Bodypack |
| Type: | Headset |
| Power supply: | 2-10 V DC |
| Cable length: | 1,5 m |
| Capsule type: | Electret |
| Polar pattern: | Omnidirectional |
| Frequency range: | 100 - 20000 Hz |
| S/N ratio: | >58 dB |
| Sensitivity: | -45 dB |
| Impedance: | 1 kOhm |
| Connections: | Mini XLR (F) 3-pin |
| Material: | Metal |
| Color: | Skin-colored |
| Dimensions: | Diameter: Ø 3,5 mm |
| Weight: | 20 g |
