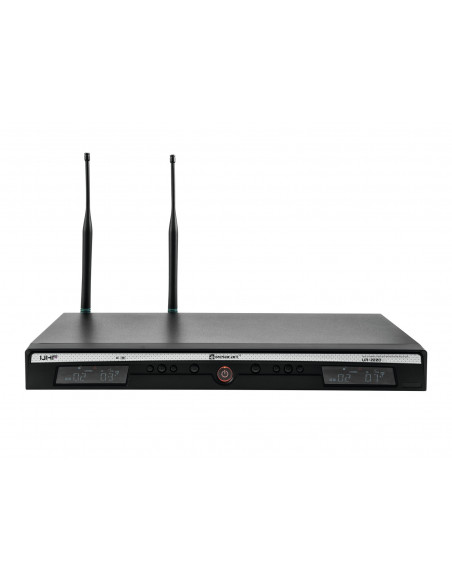

The UR-222D is an affordable and reliable UHF system for everyday use. The device works with 90 channel presets in 10 groups. 9 channels can be operated in parallel. True diversity receiver technology, pilot tone and adjustable noise squelch guarantee reliable transmission. Setup is quick and easy using auto-scan and infrared sync.
2-channel multifrequency wireless receiver with true diversity reception
- 2-channel multifrequency wireless receiver with high-quality true diversity reception
- 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Parallel operation of up to 9 systems is possible without any interference
- Pilot tone technology (PLL) for interference-free reception
- Automatic frequency scan (AFS) finds interference-free channels
- Easy and error-free synchronization between receiver and transmitter via infrared signal

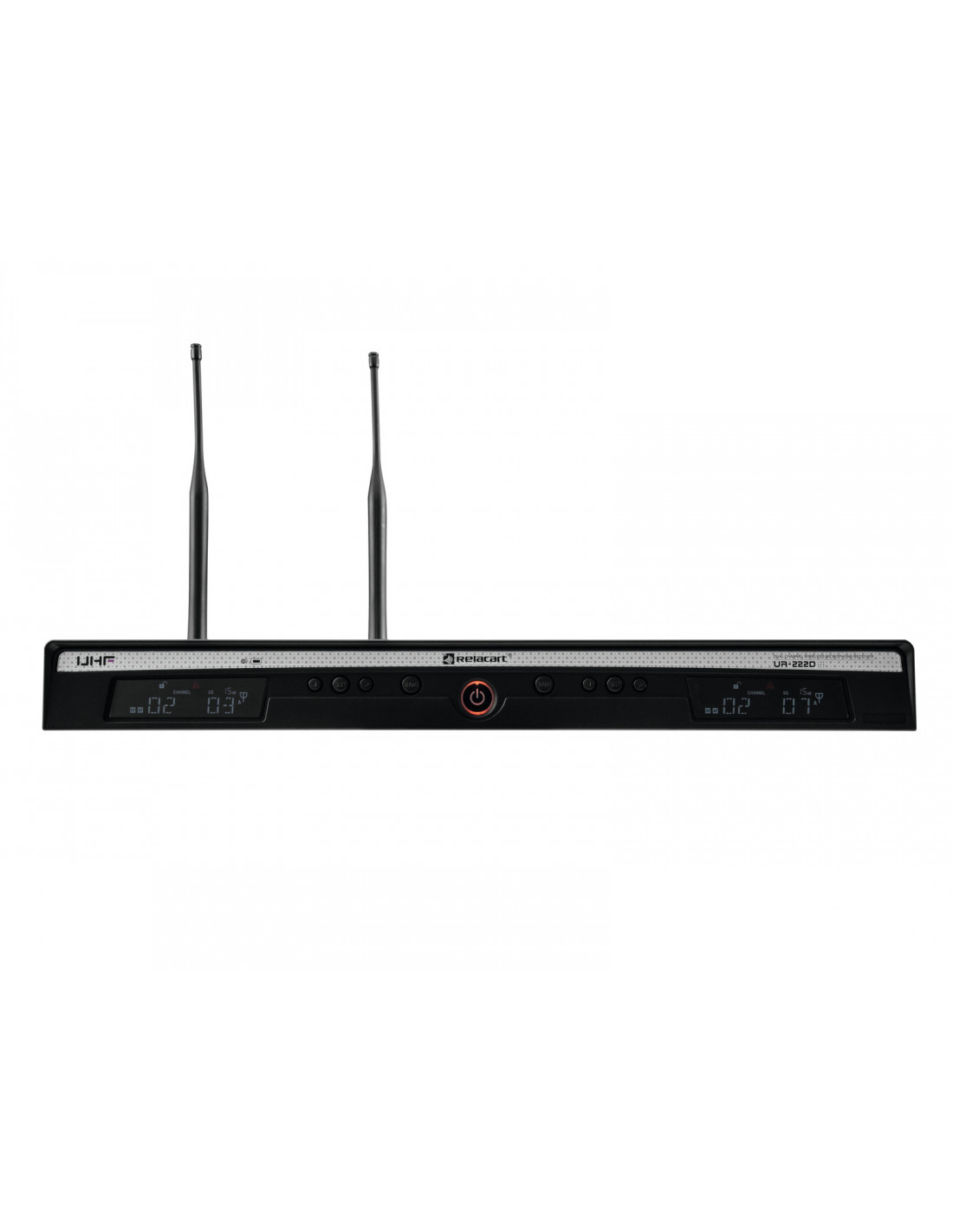

- LCD for battery status of the microphone, antenna A/B, RF reception level, AF audio level and frequency

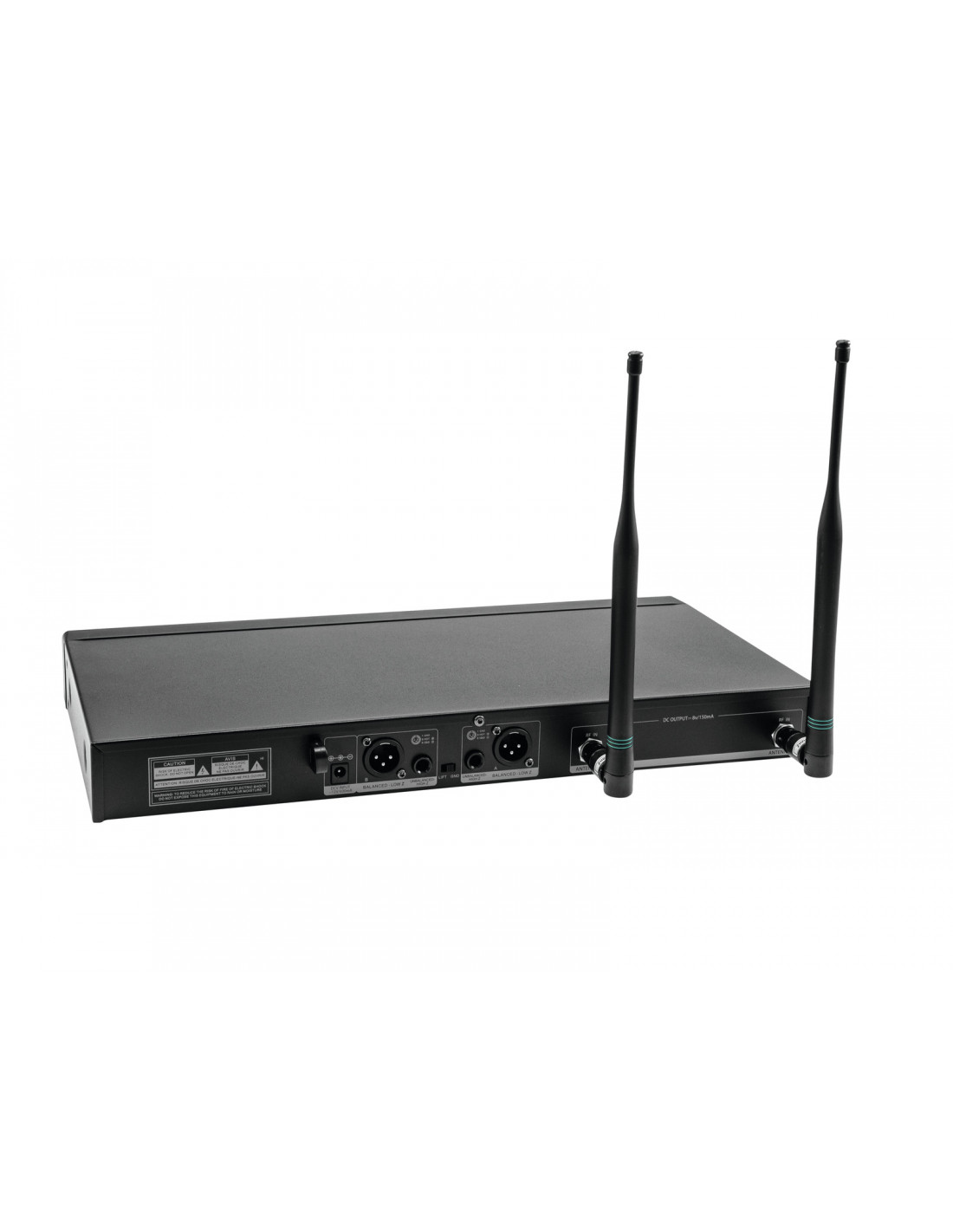

- XLR and 6.3 mm jack output
- 2 detachable BNC antennas allow for use with the R-14D antenna divider

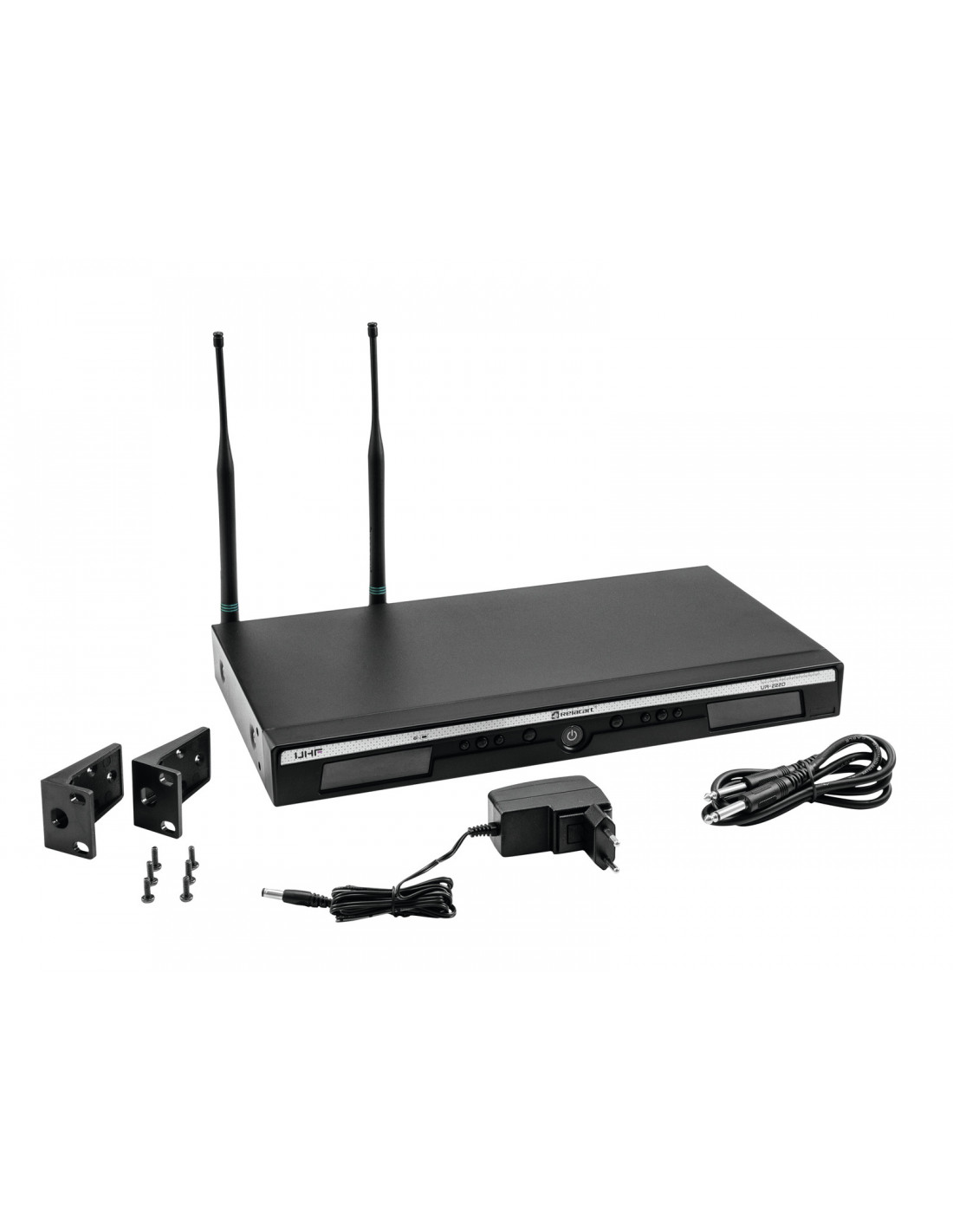

- Delivery includes practical transport bag with jack cable and power adapter
- Durable metal housing
- 483 mm rack installation possible with supplied mounting brackets
- Matching transmitters optionally available: hand-held microphone (UH-222D/C) and pocket transmitter (UT-222)
- License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
- Use a operating range up to 80m with line of sight
- Desktop console housing 1 U; (19") 48.3 cm rack installation (provided)
| Type: | Receiver |
| Power supply: | 100-240 V AC, 50/60 Hz
12 V DC 1 A |
| Power consumption: | 5 W |
| Power connection: | Mains input Coaxial power connector (M) power supply cord with AC adapter (provided) |
| Number of channels: | 2 |
| Frequency range: | 45 - 18000 Hz |
| S/N ratio: | >105 dB |
| Display type: | Multicolor LCD display |
| Control elements: | Navigation keys, menu, groundlift selector |
| Connections: | Output: line via 2 x 3-pin XLR
Output: line via 2 x 6.3 mm plug (unbal.)
Antenna via 2 x BNC (F) 8 V |
| Frequency band: | UHF 863 - 865 MHz; UHF 823 - 832 MHz |
| Frequency selection: | 90 Switchable frequencys
In 10 groups with up to 10 preset frequencies each |
| Modulation: | FM |
| Frequency stability: | ± 0,0005 % |
| Range: | 80 m with line of sight |
| Switching bandwidth: | 11 MHz |
| Diversity: | Antenna diversity |
| Material: | Metal |
| Housing design: | Desktop console housing 1 U
(19") 48.3 cm rack installation (provided) |
| Dimensions: | Width: 41 cm
Depth: 26 cm
Height: 4,6 cm |
| Weight: | 2,32 kg |
