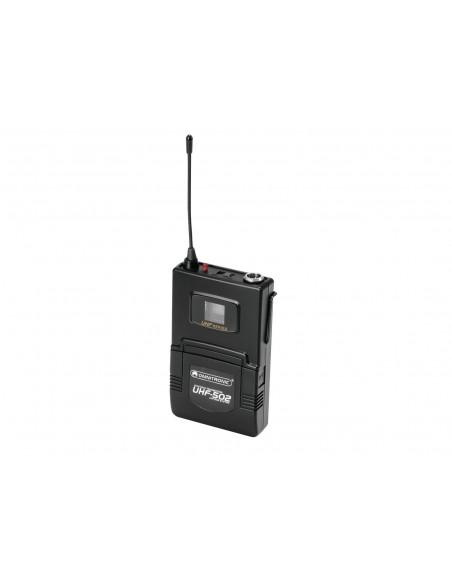

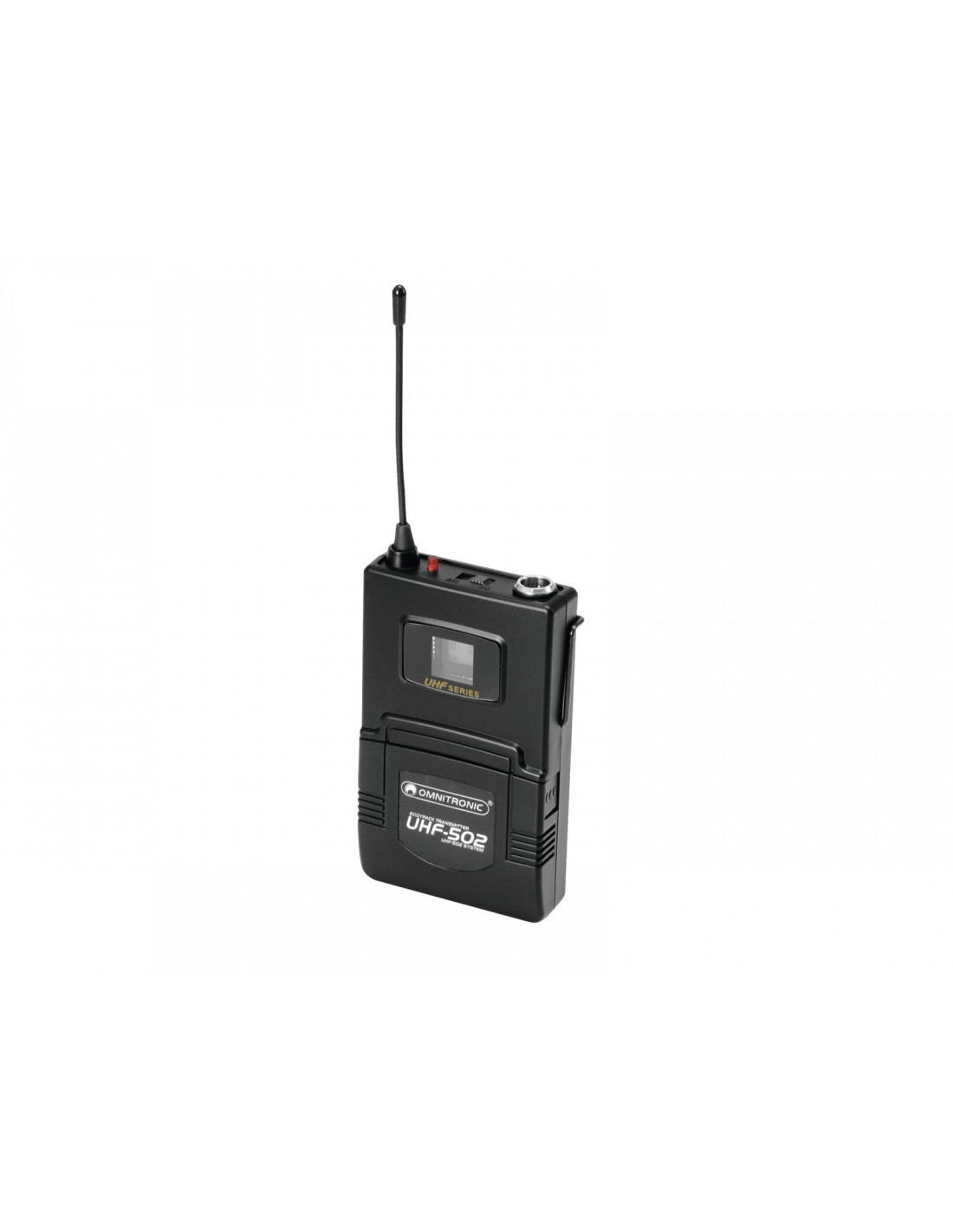

Bodypack transmitter with lavalier microphone
- Pocket transmitter for UHF-502 microphone system
- Incl. lavalier microphone
- Headset microphone optional
- Operation in the Duplex Gap 823-832 MHz
- Pilot tone technology (PLL) for interference-free operation
- Infrared interface for easy and error-free synchronization with the receiver via infrared signal
- LCD for battery capacity and transmission channel

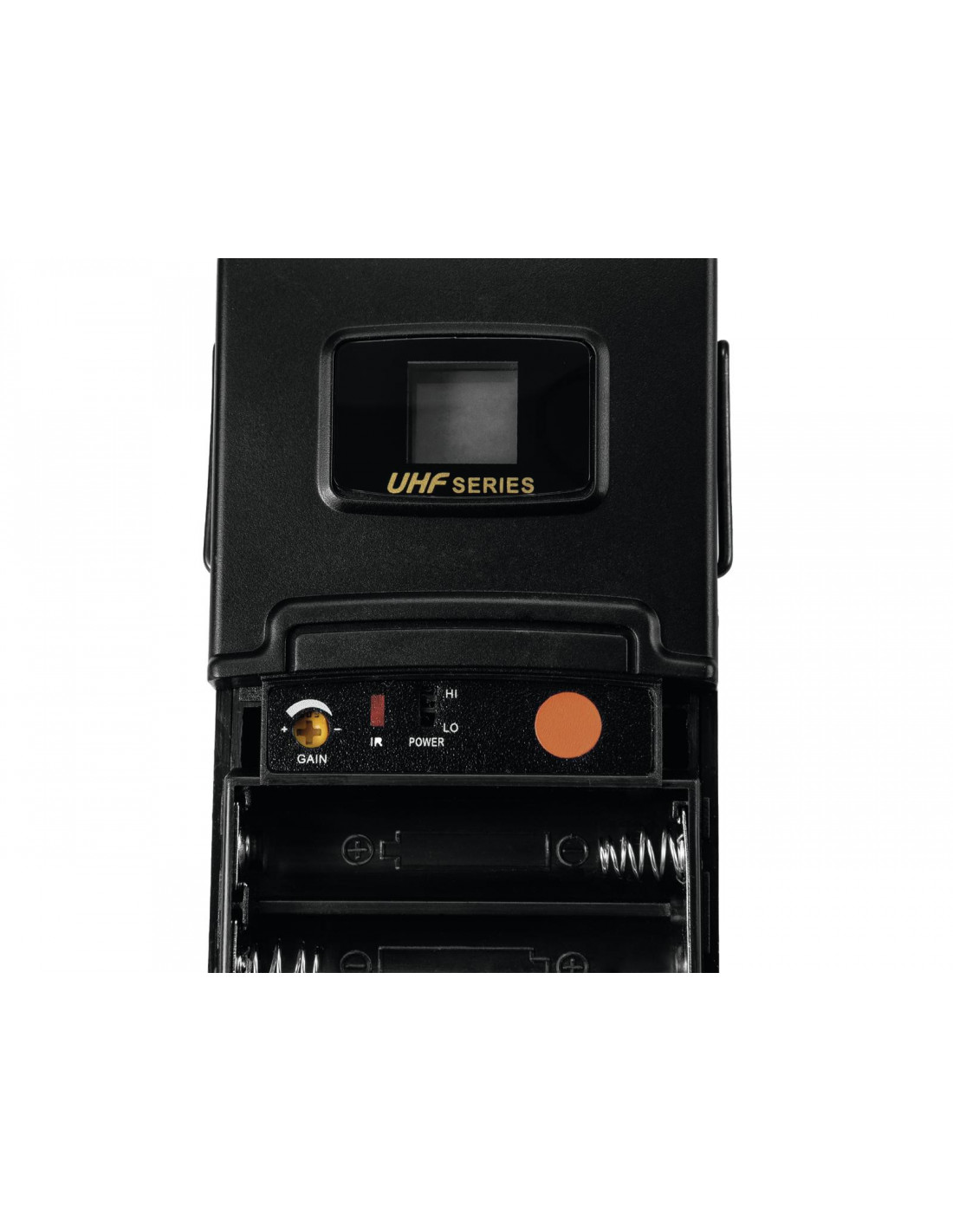

- Sensitivity adjustable
- Transmitting power 5 mW/10 mW, switchable
- LED battery indicator

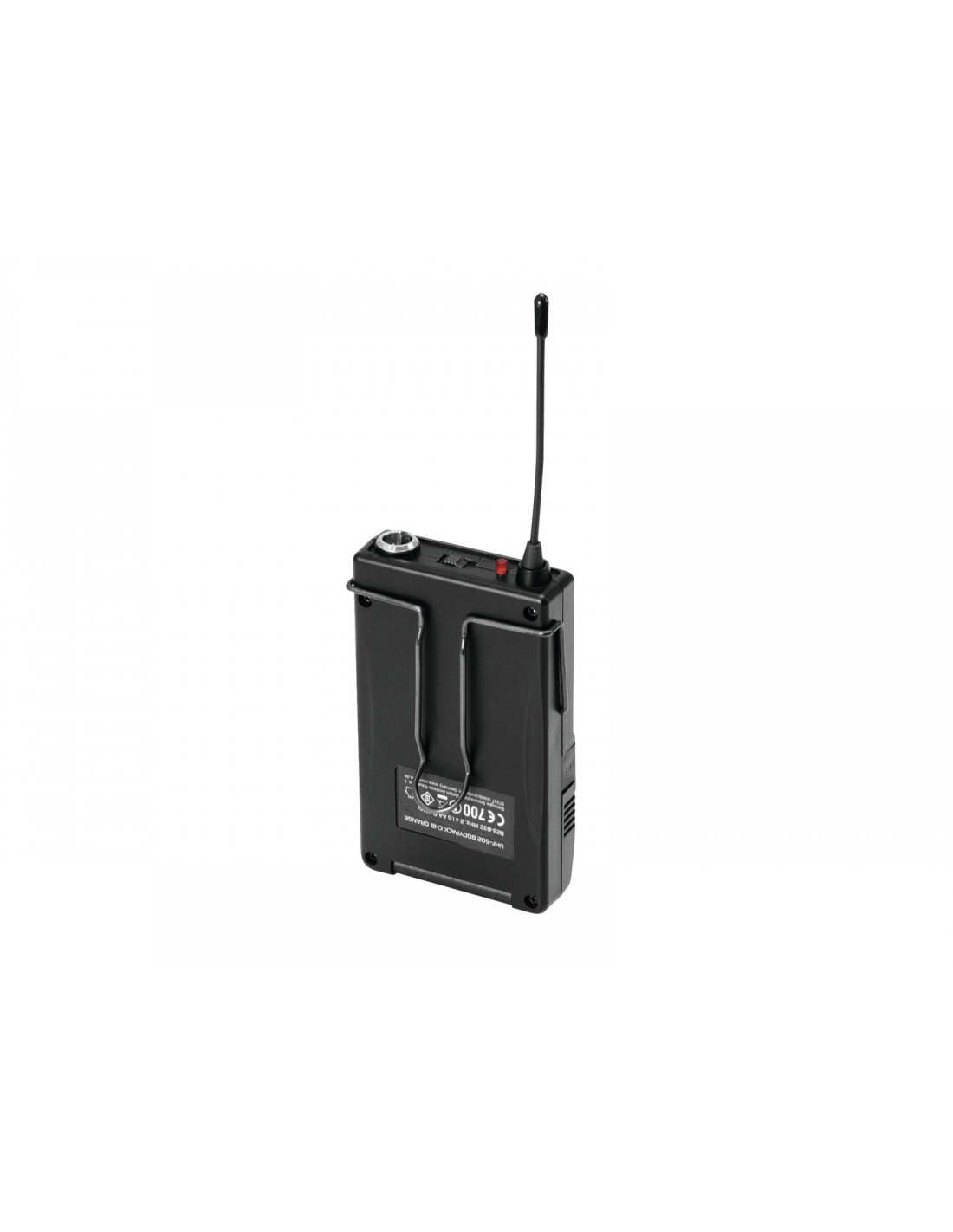

- Belt clip

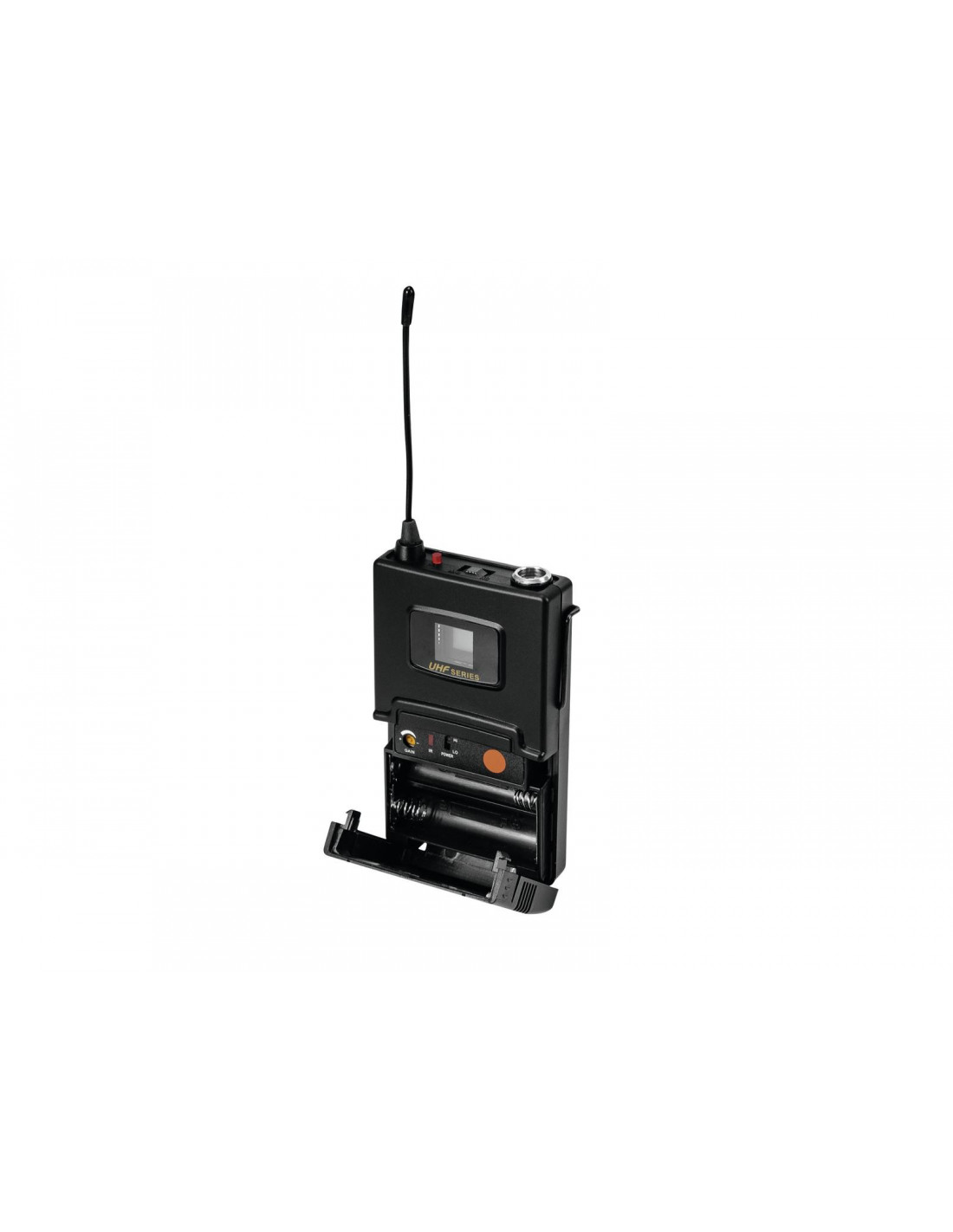

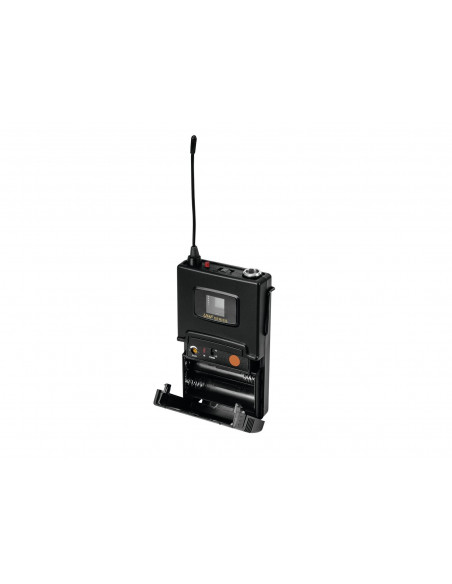

- Operation via 2 x 1.5 V batteries (type AA), not included
- License-free and approved in large parts of the EU (please check on a country-by-country basis)
transmitter
- Use a operating range up to 50m with line of sight
Microphone
| Type: | Bodypack with microphone |
| Weight: | 140 g |
| Transmitter |
| Type: | Pocket transmitter |
| Power connection: | Battery/battery pack |
| Battery: | 2 x Mignon (AA) (not included) |
| S/N ratio: | >90 dB |
| THD: | <1 % at 1 kHz |
| Output voltage: | 5 V |
| Connections: | Input: Microphone via Mini XLR (M) 3-pin mounting version |
| Frequency band: | UHF 823 - 832 MHz |
| Frequency selection: | 100 Switchable frequencys |
| Modulation: | FM |
| RF power output: | 5 mW (LO); 10 mW (HI) |
| Frequency stability: | ± 0,001 % |
| Range: | 50 m with line of sight |
| Color code: | CH A= green, CH B= orange, |
| Switch: | On/off switch |
| Dimensions: | Width: 6,6 cm
Depth: 2,2 cm
Height: 10,8 cm |
| Microphone |
| Type: | Lavalier microphone |
| Power supply: | 2-10 V DC |
| Cable length: | 1 m |
| Capsule type: | Electret
Size: Ø 5,2 mm x 9,7 mm |
| Polar pattern: | Cardioid |
| Frequency range: | 50 - 15000 Hz |
| S/N ratio: | >63 dB |
| Sensitivity: | -47 dB |
| Impedance: | 680 Ohm |
| Connections: | Output: 1 x Mini XLR (F) 3-pin |
