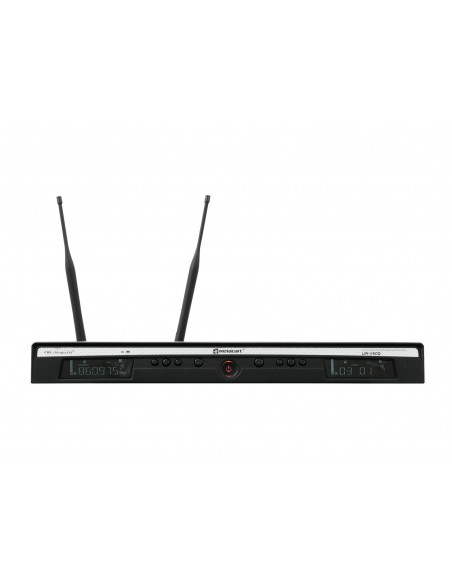

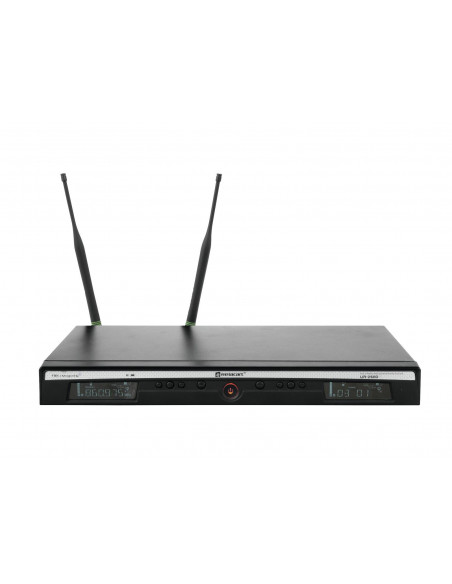

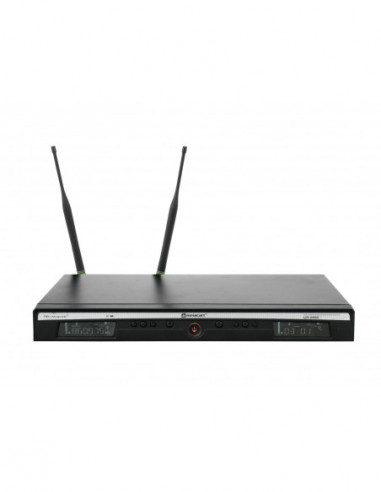

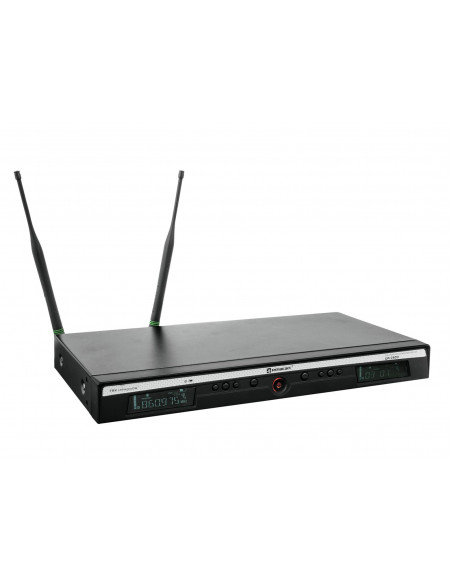

The UR-260D is a dual-channel true diversity UHF system with a host of innovative features. In addition to automatic frequency scanning for interference-free transmission, one also finds an intelligent feedback suppression system. With MagicEQ, various sound characteristics of world-known microphone capsules can be emulated or created yourself. The presets can be changed from a computer via software - even during live operation.
True diversity wireless receiver with DSP for microphone modeling and PC software
- 2-channel multifrequency wireless receiver with 24-bit processor for high-end audio quality
- Integrated MagicEQ enables amazing microphone modeling of hand-held microphones
- Choose from 7 presets based on popular microphone models (e835, beta58, e935, D5, SM57, N/D767a, SM58) and 3 user-definable presets
- Integrated Feedback Killer effectively eliminates feedback, providing maximum gain and increased clarity on every microphone
- DSP programming and management via Ethernet port and intuitively operated PC software
- High-quality antenna diversity reception
- 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Parallel operation of up to 9 wireless channels is possible without any interference
- Pilot tone technology (PLL) and noise squelch for interference-free operation
- Automatic frequency scan (AFS) finds interference-free channels
- Infrared interface for easy and error-free channel transfer to transmitters via infrared signal
- LCDs for battery status of the transmitters, antenna A/B, RF reception level, AF audio level and frequency

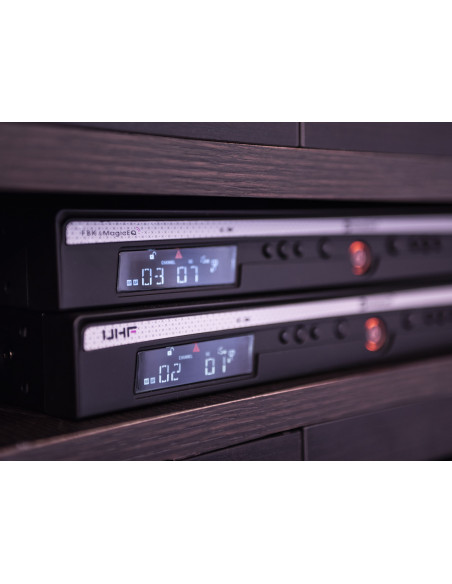

- Multiple units can be linked with network cables
- Lock function avoids accidental changing of settings
- XLR and 6.3 mm jack output
- 2 detachable BNC antennas allow for use with the R-14D antenna divider
- Matching hand-held microphone (UR-260D) optionally available
- Matching pocket transmitter UT-222 optionally available
- Delivery includes jack cable and power unit
- Durable metal housing
- 483 mm rack installation possible with supplied mounting brackets
- License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
- Digital signal processor 96kHz, 24 bit
- Use a operating range up to 80m
- The device can be connected via RJ-45 (F) mounting version to the PC in connection with RELACART Magic EQ software
- Desktop console housing 1 U; (19") 48.3 cm rack installation (provided)
| Type: | Receiver |
| Power supply: | 100-240 V AC, 50/60 Hz
12 V DC 1 A |
| Power consumption: | 12 W |
| Power connection: | Mains input Coaxial power connector (M) power supply cord with AC adapter (provided) |
| Number of channels: | 2 |
| Frequency range: | 45 - 18000 Hz |
| S/N ratio: | >100 dB |
| THD: | <0,5 % at 1 kHz |
| Network connection: | Protocol: Ethernet TCP/IP via 1x RJ-45 (F) mounting version |
| DSP: | Digital signal processor 96kHz, 24 bit |
| Display type: | Multicolor LCD display |
| Control elements: | Power switch, groundlift selector, navigation keys |

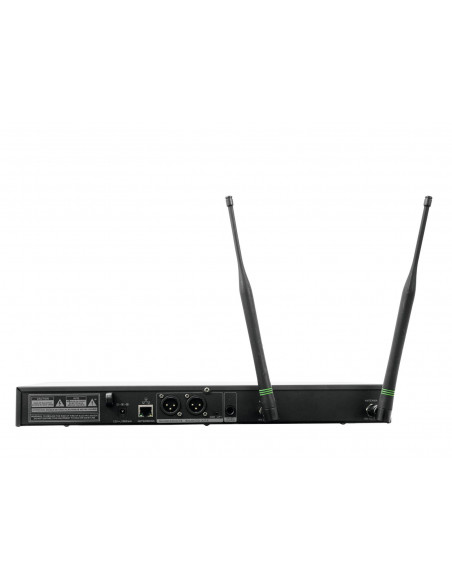

| Connections: | Antenna via 2 x BNC (F) 8 V
Output: Microphone via 2 x 3-pin XLR
Output: line via 1 x 6.3 mm plug (unbal.) |
| Frequency band: | UHF 863 - 865 MHz; UHF 823 - 832 MHz |
| Frequency selection: | 90 Switchable frequencys
In 10 groups with up to 10 preset frequencies each |
| Modulation: | FM |
| Frequency stability: | ± 0,0005 % |
| Range: | 80 m |
| Switching bandwidth: | 11 MHz |
| Switch: | On/off switch |
| Diversity: | Antenna diversity |
| Material: | Metal |
| Color: | Black |
| PC connect: | RELACART Magic EQ software via RJ-45 (F) mounting version |
| Housing design: | Desktop console housing 1 U
(19") 48.3 cm rack installation (provided) |
| Dimensions: | Width: 41 cm
Depth: 22,5 cm
Height: 4,3 cm |
| Weight: | 2,40 kg |
