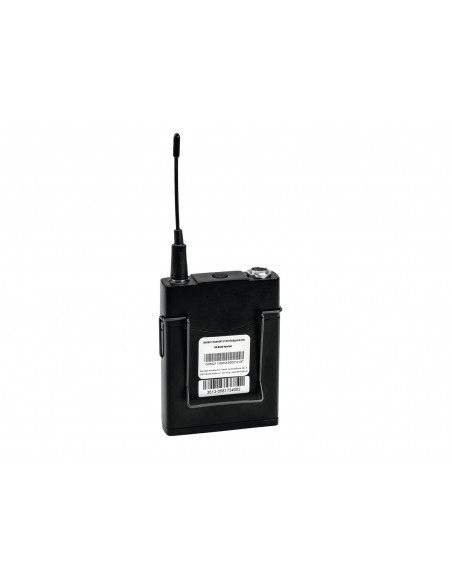

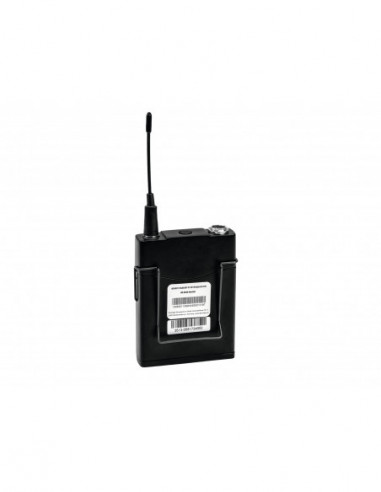

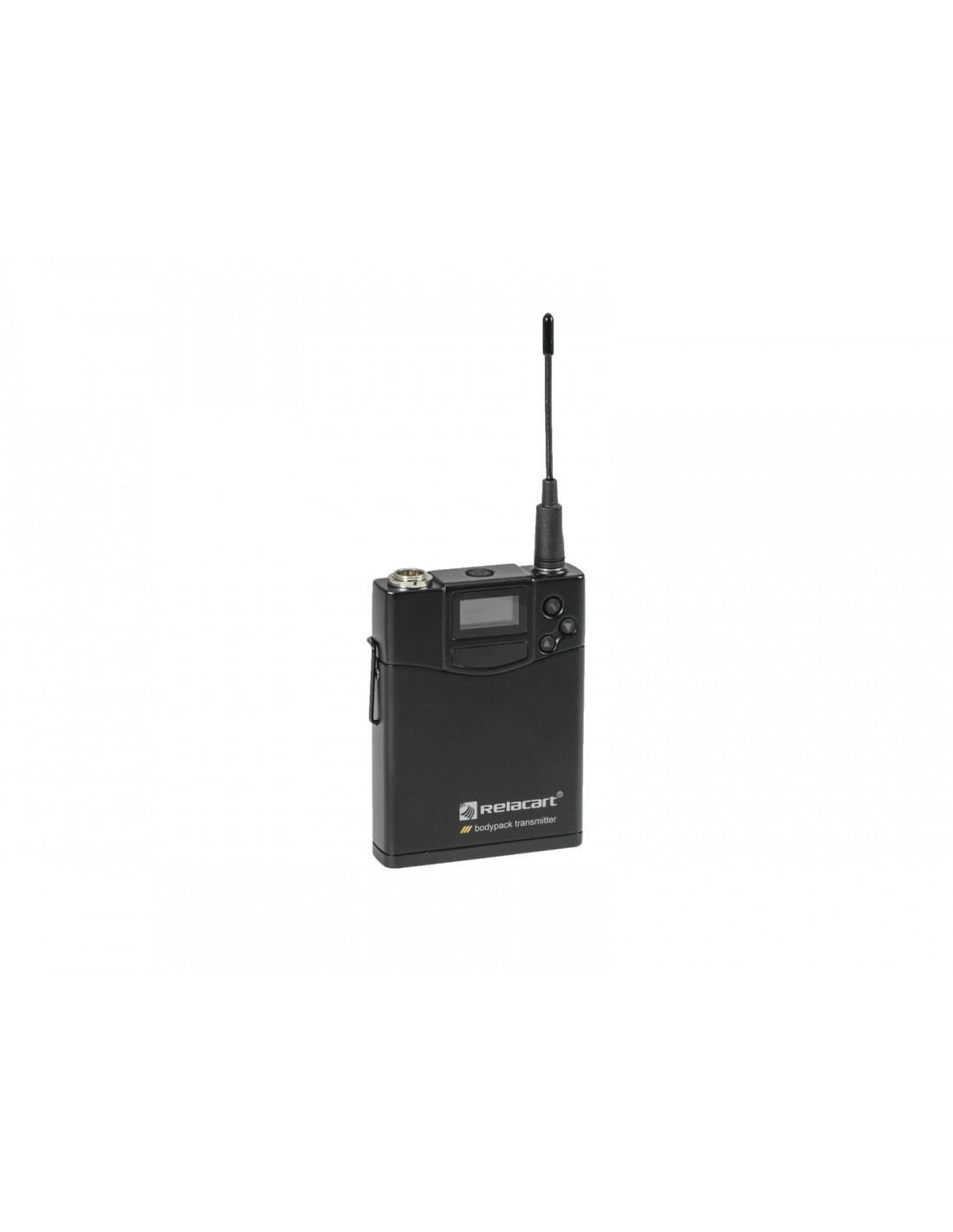

Bodypack transmitter with PLL multifrequency transmitter, 823-832 + 863-865 MHz
- Pocket transmitter for receivers UR-222S/D and UR-260D
- Durable aluminum alloy housing, applicable for touring

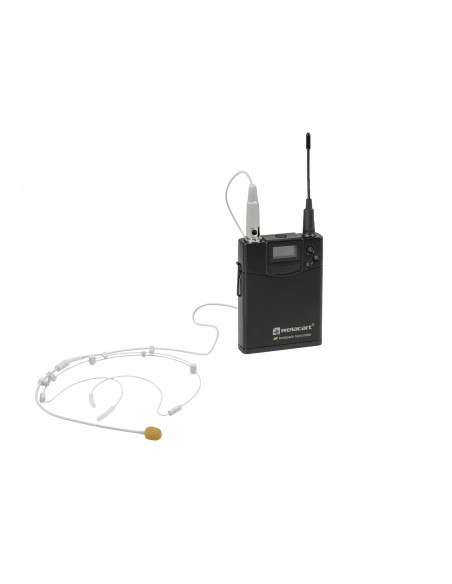

- Incl. headset microphone HM-800S
- Lavalier microphone optional
- Pilot tone technology (PLL) for interference-free operation
- 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Parallel operation of up to 9 systems is possible without any interference
- Infrared interface for easy and error-free synchronization with the receiver via infrared signal

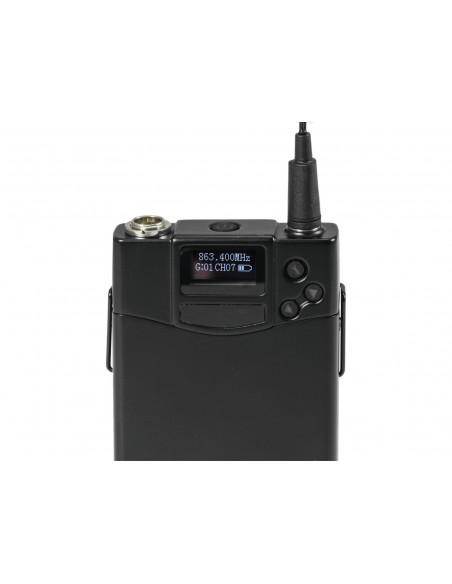

- OLED for battery status, frequency, channel and group
- Mute function
- Adjustable input gain
- RF output power Hi/Low adjustable
- Lock function avoids accidental changing of settings
- Long battery life for up to 11 hours continuous operation
- License-free and approved in the EU (please check on a country-by-country basis)
transmitter
- Use a operating range up to 80m
Microphone
- Polar pattern: Omnidirectional
| Transmitter |
| Type: | Bodypack with microphone |
| Power supply: | 3 V DC |
| Power connection: | Battery/battery pack |
| Battery: | 2 x Mignon (AA) (not included) |
| Gain: | -12 dB to +0 dB |
| Display type: | OLED display |
| Connections: | Output: Mini XLR (M) 4-pin mounting version |
| Frequency band: | UHF 823 - 832 MHz; UHF 863 - 865 MHz |
| Frequency selection: | 90 Switchable frequencys
In 10 groups with up to 10 preset frequencies each |
| Modulation: | FM |
| RF power output: | 10 mW (LO); 40 mW (HI) |
| Range: | 80 m |
| Switching bandwidth: | 11 MHz |
| Switch: | On/off/mute switch |
| Material: | Aluminum |
| Color: | Black |
| Dimensions: | Width: 6,6 cm
Depth: 2,3 cm
Height: 8,4 cm |
| Weight: | 190 g |
| Microphone |
| Type: | Headset |
| Power supply: | 2-10 V DC |
| Cable length: | 1,2 m |
| Capsule type: | Condenser
Size: Ø 5 mm x 6 mm |
| Polar pattern: | Omnidirectional |
| Frequency range: | 50 - 20000 Hz |
| Sensitivity: | -47 dB |
| Impedance: | 1800 Ohm |
| Connector type: | Mini XLR (F) 4-pin |
| Material: | Metal |
| Color: | Skin-colored |
| Weight: | 18 g |
