- 5500 ANSI Lumens Brightness
- Up to 7,000 Hours Lamp Life (Eco2 Mode)
- WXGA (1280 x 800) Native Resolution
- 16:10 Widescreen Format Aspect Ratio
- 4.8 kg in Weight
- Dimensions: 389 x 125 x 332 mm (with legs at shortest position)
- 16000:1 Contrast Ratio
- 3LCD Technology
- 1.08 - 1.76:1 Lens Throw Ratio
- Projection Screen Size: 30" - 300" Diagonal
- ±35° Horizontal Keystone Correction
- ±35° Vertical Keystone Correction
- Built-in 10W mono Speaker
- Manufacturer's 3 Year Warranty

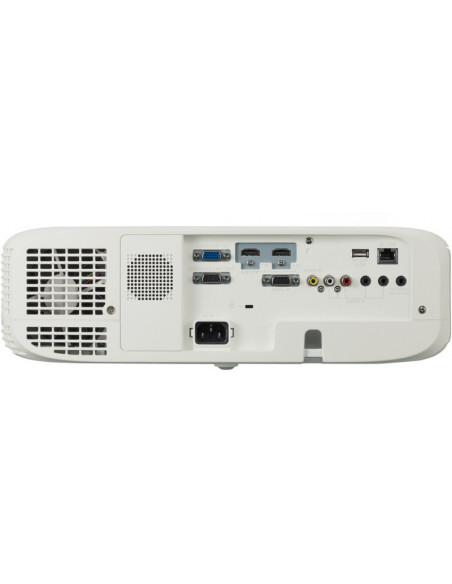

Connections
- HDMI 19-pin x 2 (Deep Color, compatible with HDCP)
- COMPUTER IN D-sub 15-pin (female) x 1 (RGB/Y/PB(CB)/PR(CR))
- COMPUTER IN/MONITOR OUT D-sub 15-pin (female) x 1 (RGB/Y/PB(CB)/PR(CR)) (input/output switching)
- VIDEO IN Pin jack x 1
- AUDIO IN M3 stereo mini jack x 2, Pin jack (L/R) x 1
- AUDIO OUT M3 stereo mini jack x 1 (monitor out: variable)
- SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
- USB Type A for DC Output x 1 (power supply, DC 5 V, max 2 A)
- LAN: RJ-45 x 1 for network connection, 10Base-T/100Base-TX, compatible with PJLink™
Included Accessories

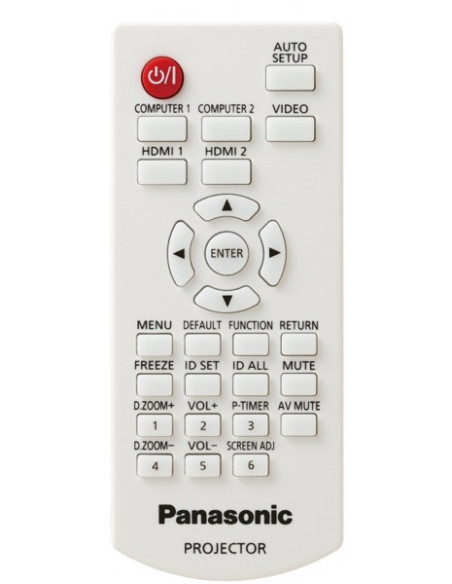

- Wireless remote control unit
- Power cord with power cord holder
- Software CD-ROM (Operating instructions, Multi Monitoring and Control Software, Logo Transfer Software)
- Batteries (AAA type)
- RGB cable
- Lens cap
6-Colours Adjustment and Colour Correction Functions
Correct slight colour variations in the reproduction range of individual units set up for multi-projection. This is particularly useful for side-by-side configurations delivering ultra-wide-screen pictures. Very large images can be seamlessly presented in auditoriums and boardrooms.
Efficient Low-Maintenance Design
Less maintenance is not only good for your budget, but also the environment. Air filter replacement cycle is at a class-leading 7,000 hours, and the unit can be washed and reused twice to minimize waste. Lamp life is also pushed out to 7,000 hours in ECO2 mode, meaning part refreshment can be performed together with filter maintenance to reduce downtime.
Daylight View Basic
Panasonic technology assures sharp and comfortably viewed images even with the blinds open by enhancing fine details (particularly in dark areas of the image) that are normally difficult to see in bright rooms. A built-in sensor measures ambient light while Daylight View Basic adjusts half-tone colour and brightness to suit ambient illumination*. (* With Daylight View Basic set to AUTO mode.)
1.6x Zoom Lens and Lens Shift Function
Zoom lens allows you to project from wide range of distances from tabletops or ceiling. Use vertical lens shift to quickly adjust image position without distortion.
Auto Screen Image Rotation
Images are automatically rotated depending on installation orientation—upside down on the ceiling or set on a table—using a built-in angle sensor.
Easy Geometric Adjustment Function
Horizontal, vertical, and corner keystone correction adjusts the image shape for clear visibility when projecting off-axis or from an unusual angle. Curved Screen Correction allows for the projection of natural, distortion-free images onto curved or cylindrical surfaces.
