DMX recorder for 2 universes
- Wireless DMX recorder and Art-Net node
- 2 DMX universes (1024 DMX channels)
- Real-time recording and playback of light shows via DMX or WiFi
- Records any Art-Net and DMX source
- Built-in access point
- Direct operation via Android and iOS apps (e. g. Aurora DMX, Photon, ArtNetDmxRemote)
- Art-Net in/out via WiFi or LAN
- 8 memory locations with up to 20 hours recording capacity each
- All recordings are stored on included 16 GB SD card
- 2 recording modes: time recording or step-by-step recording
- 2 playback modes: solo run or loop run
- Dimmer and speed fader
- DMX merger (2 in > 1 out) with HTP, LTP, override and backup modes
- DMX splitter (1 in > 2 out)

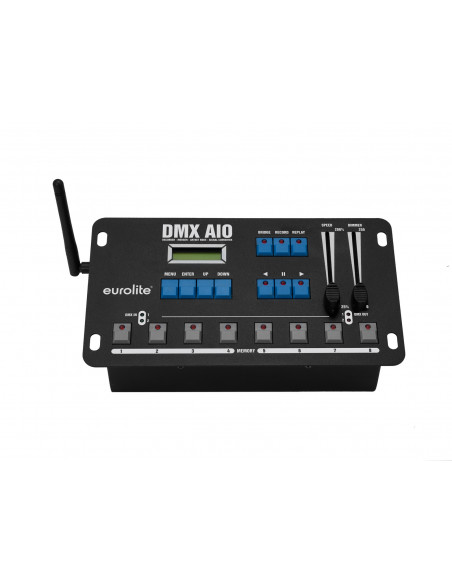

- Control panel with LC display for easy configuration
- Power supply via P-Con jack or USB port
- Rugged black metal housing
- Controlling by DMX
- The device can be connected via USB to the PC
| Power supply: | 100-240 V AC, 50/60 Hz
Or
5 V DC 500 mA |
| Power consumption: | 4 W |
| Power connection: | Mains input P-Con (blue), mounting version power supply cord with safety plug (provided)
Mains input USB C (F) mounting version power supply cord for USB A mains connection (not included) |
| Power output: | 1 x P-Con (gray), mounting version |

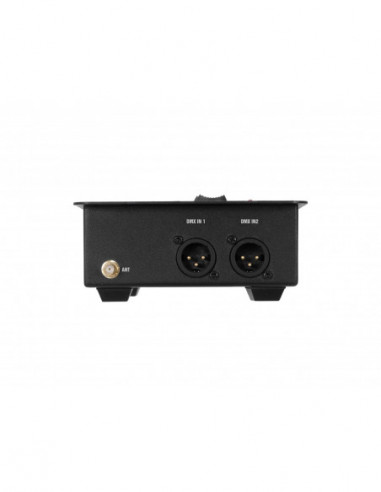

| DMX input: | 2 x 3-pin XLR (M) mounting version |
| DMX output: | 2 x 3-pin XLR (F) mounting version |
| Network connection: | 1x RJ-45 (F) mounting version |
| Control: | DMX |
| USB port: | USB 2.0, Typ B |
| PC connect: | Via USB |
| Dimensions: | Width: 22,7 cm
Depth: 13 cm
Height: 7 cm |
| Weight: | 1,04 kg |
