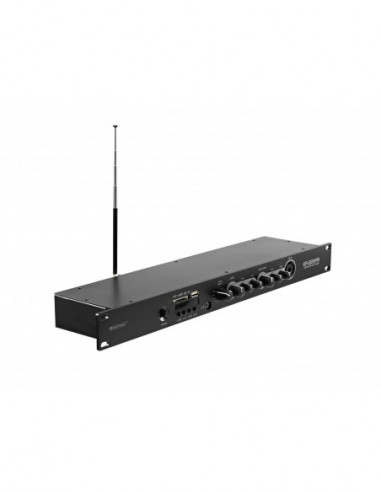

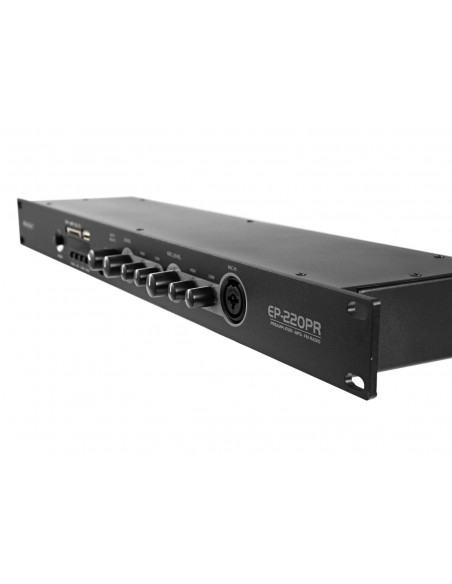

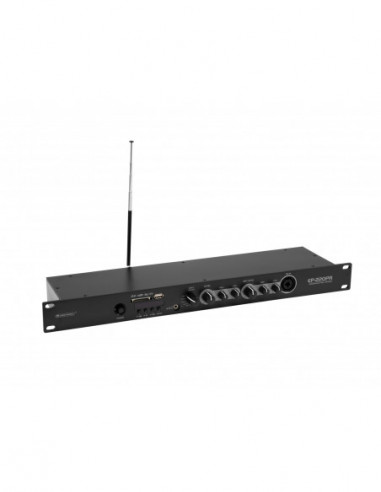

Universal 19" preamplifier with audio player, Bluetooth and FM radio
- For quick-access music playback control in restaurants, gyms and retail locations
- Built-in audio player with Bluetooth receiver
- Stream music wirelessly from your mobile devices (e.g. smartphone, tablet) via Bluetooth
- USB 2.0 input and SD card slot
- 5 stereo line inputs
- 4 RCA L/R connectors on the back panel and 3.5 mm connector on the front panel
- Audio source selector
- Controls for volume, bass and treble
- 1 microphone input with controls for volume, bass and treble on the front panel
- 3 stereo master outputs
- (19") 48.3 cm rack installation 1 U
Audio player
- Bluetooth: Use a operating range up to 10m
| Power supply: | 115/230 V AC, 50/60 Hz |
| Power consumption: | 5 W |
| Power connection: | Mains input IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >100 dB |
| THD: | <0,1 % at 1 kHz |
| Impedance: | Input 10 kOhm , unbal.
Input 20 kOhm , bal. |
| Equalizer: | Master: 1 x 2-band tone control stereo |
| Connections: | Input: line via 4 x RCA (F) mounting version
Input: Microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line via 1 x 3.5 mm jack (stereo) mounting version
Output: line via 1 x stereo RCA
Output: line via 1 x 3-pin XLR
Output: line via 1 x 6.3 mm jack socket (stereo) mounting version |
| Input channels: | 5 x stereo via RCA or jack plug or player, channel control via Rotary dial
1 x mono via XLR or jack, channel control via Rotary dial |
| Input sensitivity: | 1 V |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Dimensions: | Width: 48,3 cm
Depth: 12,8 cm
Height: 4,45 cm |
| Weight: | 1,87 kg |
| Audio player |
| Audio player: | USB + SD + Bluetooth + FM Radio |
| Format: | WAV; MP3; WMA |
| Carrier frequency: | 2,4 GHz |
| Available storage media: | USB devices/SD cards max. 32GB (FAT 16/32) |
| Range: | 10 m Bluetooth |
