OMNITRONIC Entertainment Mixer SeriesThe modern entertainment industry, especially hotels, bars or theme parks, requires very high standards in quality and features for sound devices.The OMNITRONIC EM-series is especially designed for this industry and offers the highest flexibility and quality in very small mixer casings.The EM-series offers a variety of connection possibilities and also convinces by an ergonomic design and easy use.The special housing design and the state-of-the-art construction are further reasons which make the EM-series the first choice for installers.

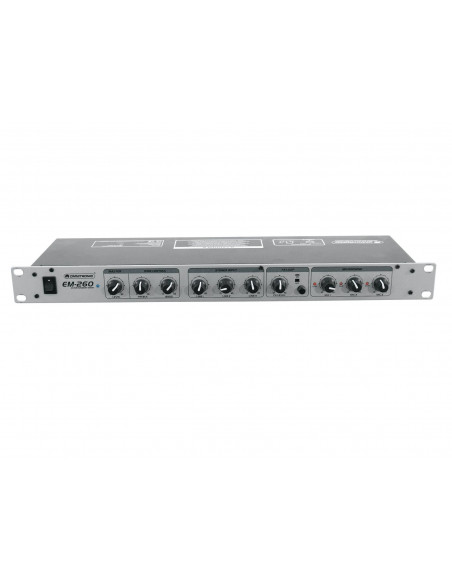

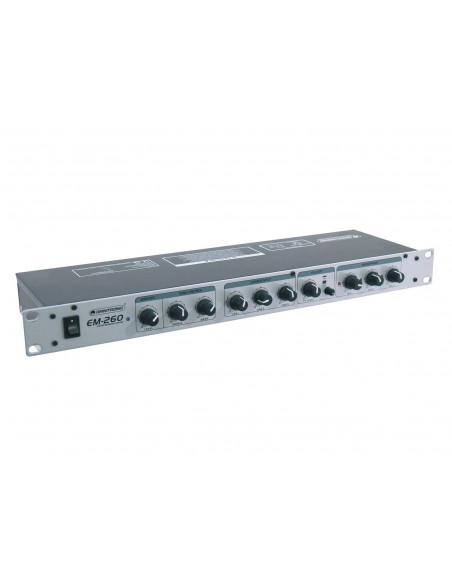

6-channel microphone/line mixer
- 6 inputs (3 x mic/line and 3 x line) for mixing to 1 stereo output
- Ideal e.g. for karaoke when microphones need to mixed with CDs
- 3 mono input channels mic/line (XLR, bal.), switchable
- 3 stereo line input channels (RCA)
- Clip LED for each microphone channel
- Each microphone input with optional 12 V phantom power
- FX send/return with FX level control
- Stereo master out (6.3 mm jack) with 2-band equalizer (highs and lows) and level control
- Stereo record output (RCA)
- Rack installation, 1 U
- (19") 48.3 cm rack installation 1 U
| Power supply: | 115/230 V AC, 50/60 Hz |
| Power consumption: | 35 W |
| Protection class: | Class I |
| Power connection: | Mains input IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range: | 20 - 20000 Hz |
| Phantom power: | 12 V DC |
| Housing color: | Silver |
| Control elements: | Phantom power switch, power switch, FX send/returne control |
| Status LED: | Power, clip |

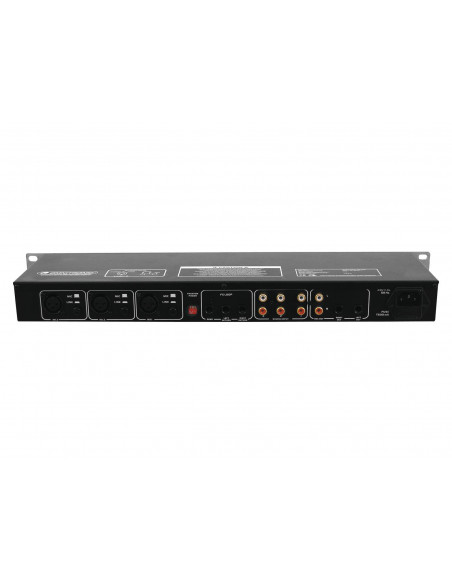

| Connections: | Input: mic/line via 3 x 3-pin XLR
Input: line via 3 x stereo RCA
Input: FX via 2 x 6.3 mm jack socket (mono) mounting version
Output: rec. via 1 x stereo RCA
Output: master via 2 x 6.3 mm jack socket (mono) mounting version
Output: FX via 1 x 6.3 mm jack socket (stereo) mounting version |
| Channels: | Input chanel: 3 x stereo via RCA, channel control via Rotary dial, 2-band tone control EQ 100Hz/10kHz
Microphon chanal: 3 x mono with Mic-line switch via XLR, channel control via Rotary dial
Master output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial |
| Max. level: | Input: Microphone +14 dB
Input: line +24 dB |
| Material: | Metal |
| Color: | Silver |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Dimensions: | Width: 48,3 cm
Depth: 12,3 cm
Height: 4,45 cm |
| Weight: | 2,20 kg |
