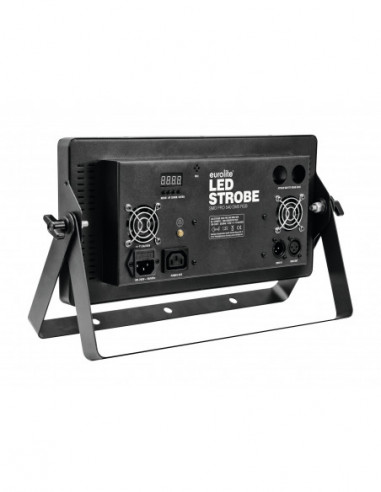

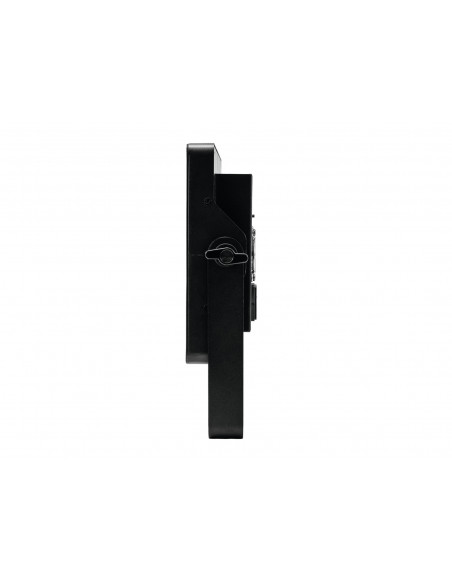

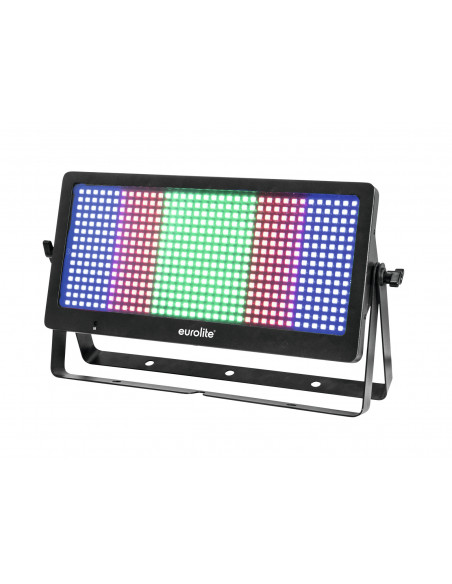

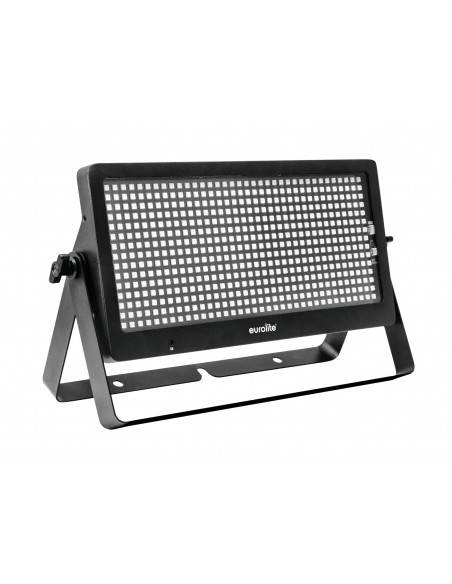

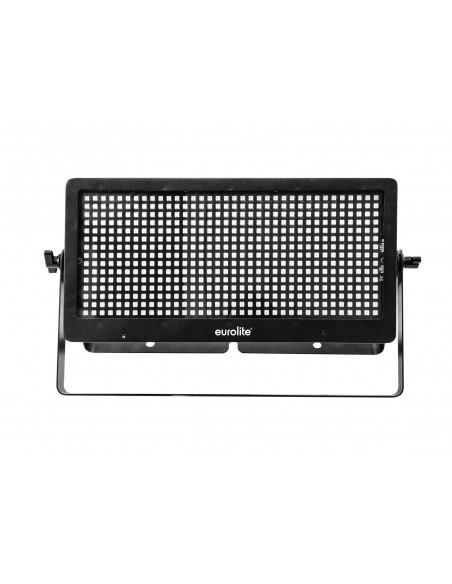

The LED Strobe SMD PRO 540 DMX RGB combines three functions in one fixture: It is equipped with 540 bright RGB SMD LEDs for both dynamic strobe effects and slower blinder effects. Depending on the selected DMX mode, the color LEDs can be split in up to 6 individual control segments which can be used to create amazing color effects. You can choose from 17 preset colors. The built-in SMD LEDs are flicker-free and therefore the effect can also be used in a TV studio.The fixture has 3-pin DMX connectors as well as a P-Con input and output to connect it to the mains. For a structured and versatile use, you can choose from 8 different DMX modes with 2, 3, 4, 5, 7, 9, 18 or 22 DMX channels respectively. Addressing and settings can be made via the built-in control unit or from a distance via the included IR remote control.
Multifunctional strobe/flood/blinder with 540 bright SMD RGB LEDs
- 3 effects in one device: strobe, blinder and wash light
- 540 bright RGB LEDs, 0.2 W each
- 6 segments
- 5 built-in auto and music show programs for dynamic effects
- Strobe effect 0-20 Hz
- Direct color selection for 17 preset colors
- Stepless RGB color mixing
- Electronic dimmer (0-100%)
- Control panel with LED display for easy configuration
- Convenient wireless control via included IR remote control
- Swivel mounting bracket
- Additional bracket for floor use
- Mains input and output for power linking up to 8 units
- LED: 540 x SMD 3in1 TCL RGB (homogenous color mix)
- Can be operated in 2; 3; 4; 5; 7; 9; 18; 22 CH mode
- Controlling by stand-alone; DMX; IR remote control; Sound to light via Microphone; Master/slave function
- Preprogrammed in Light´J; LED PC-Control 512
- Flicker-free projection
- Effect: Strobe effect
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 120 W |
| IP classification: | IP20 |
| Protection class: | Class I |
| Power connection: | Mains input IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x IEC connector (F) mounting version |
| Lamp type: | LED |
| LED: | 540 x SMD 3in1 TCL RGB (homogenous color mix) |
| Flash rate: | 0 - 20 Hz |
| DMX channels: | 2; 3; 4; 5; 7; 9; 18; 22 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Control: | Stand-alone; DMX; IR remote control; Sound to light via Microphone; Master/slave function; Light´J; LED PC-Control 512 |
| Display type: | 4 digits 7-segment LED display |
| Dimensions: | Width: 43 cm
Depth: 6 cm
Height: 25,5 cm |
| Weight: | 3,46 kg |
| Remote control |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
