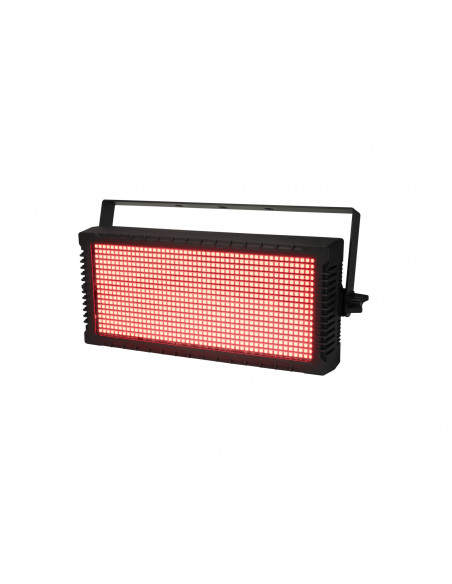

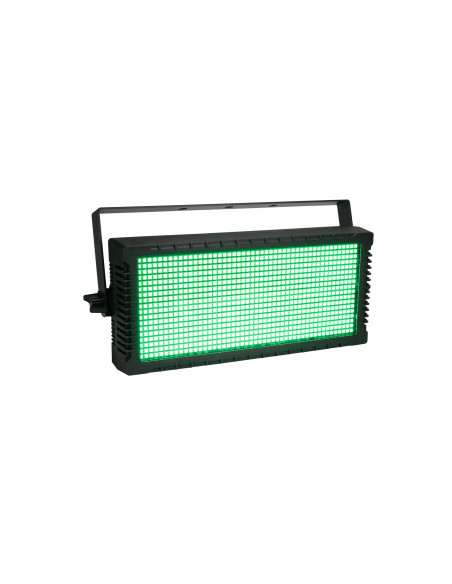

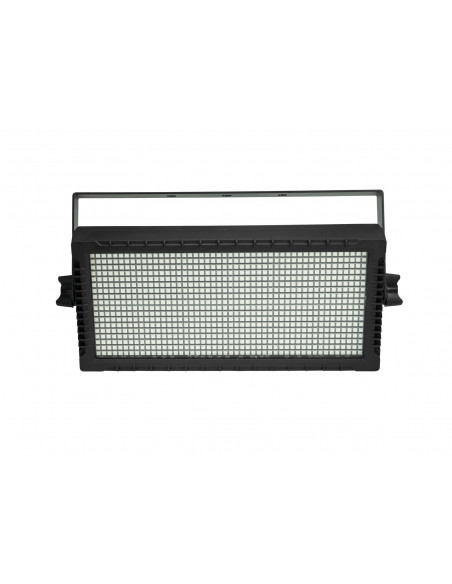

3in1 LED effect light with RGB color mixing
- 3 effects in one device: strobe, blinder and wash light
- 864 bright SMD 5050 3in1 TCL RGB LEDs, 0.2 W each
- 18 individually controllable segments (illumination units with 48 LED each)
- Auto, sound, master/slave and DMX mode
- Built-in auto and music show programs
- Strobe effect 0-20 Hz
- Strobe effect 0-20 Hz
- Stepless color blend, color change, color fade, dimmer and strobe effect
- Control panel with LC display for easy configuration
- 5, 13 or 54 DMX channels selectable

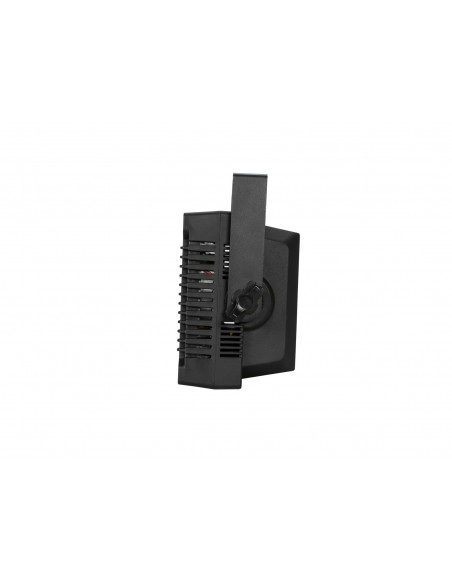

- Swivel mounting bracket
- Mains input and output for power linking up to 6 units
- LED: 864 x SMD 5050 0,2 W 3in1 TCL RGB (homogenous color mix)
- Can be operated in 5; 13; 54 CH mode
- The device is cooled by temperature-controlled fan
- Controlling by stand-alone; DMX; Sound to light
- Flicker-free projection
- Effect: Strobe effect
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 175 W |
| IP classification: | IP20 |
| Protection class: | Class II |

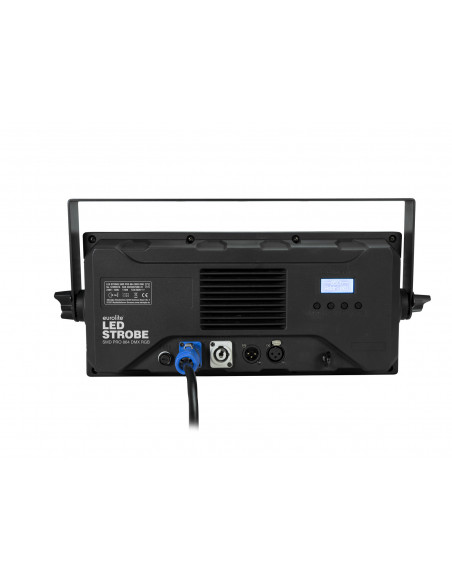

| Power connection: | Mains input P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | P-Con (gray), mounting version |
| Fuse: | T 2 A Fuse replaceable |
| Lamp type: | LED lamp |
| LED: | 864 x SMD 5050 0,2 W 3in1 TCL RGB (homogenous color mix) |
| DMX channels: | 5; 13; 54 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Temperature-controlled fan |
| Control: | Stand-alone; DMX; Sound to light |
| Beam angle (1/2 peak): | 120° |
| Display type: | Monochrome LCD display |
| Dimensions: | Width: 46,0 cm
Depth: 13,5 cm
Height: 22,5 cm |
| Weight: | 4,51 kg |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
