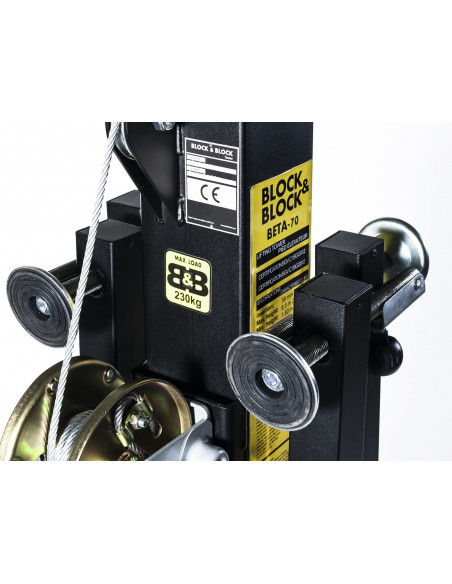

BLOCK AND BLOCK BETA-70 Truss lifter 230kg 6.5m
BLOCK AND BLOCK BETA-70 Truss lifter 230kg 6.5m
BLOCK AND BLOCK BETA-70 Truss lifter 230kg 6.5m
BLOCK AND BLOCK BETA-70 Truss lifter 230kg 6.5m
BLOCK AND BLOCK BETA-70 Truss lifter...
BLOCK AND BLOCK BETA-70 Truss lifter...
BLOCK AND BLOCK BETA-70 Truss lifter...
BLOCK AND BLOCK BETA-70 Truss lifter...

BLOCK AND BLOCK BETA-70 Truss lifter 230kg 6.5m

59000412
1 146,34 €





High-quality truss lift for loads up to 230 kg, made in EU

  • Five-part telescopic ground support
  • 6 mm steel rope
  • Safety bolts to lock the different sections at different heights
  • Locking bolts in the base area to lock the booms
  • Booms with adjustable spindle and steel plate with non-slip rubber base
  • Corrosion protection through epoxy coating
  • Water level to ensure a vertical position
  • Earthing connection
  • Transport rolls to move the lift when retracted
  • AL-KO COMPAC 900 winch: Maximum load 900 kg with automatic holding brake. CE declaration of conformity in compliance with the harmonized standards DIN EN 13157, EN 12100 I and II, EC Machinery Directive 2006/42/CE
  • Galvanized steel ropes 6x19+1, manufactured in compliance with the standard 13414-1:2004, tensile strength 1770N/mm2
  • Material: Carbon steel S-275-J0H, manufactured in compliance with the standards EN10219 and EN10305.5
  • Made in Europe; with BGV-C1 test certificate



Maximum carrying capacity: 230 kg
Minimum load: 25 kg
Nominal tensile strenght of rope: 1770 N/mm²
Height: Maximum: 650 cm above 5 sections
Minimum: 180 cm
Attachment system: 38mm (BLOCK AND BLOCK)
Steel rope: Ø 6 mm
Type (general stands): Truss lifter
Material: Steel (powder-coated)
Transport dimensions: 1,85 m x 46 cm x 48 cm
Base area: Ø 2,52 m
Weight: 97,50 kg
