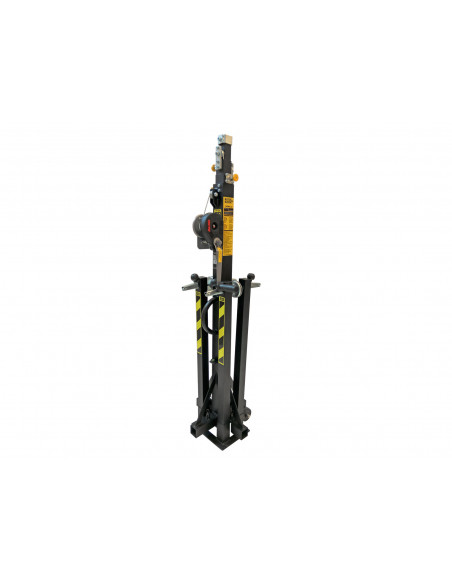

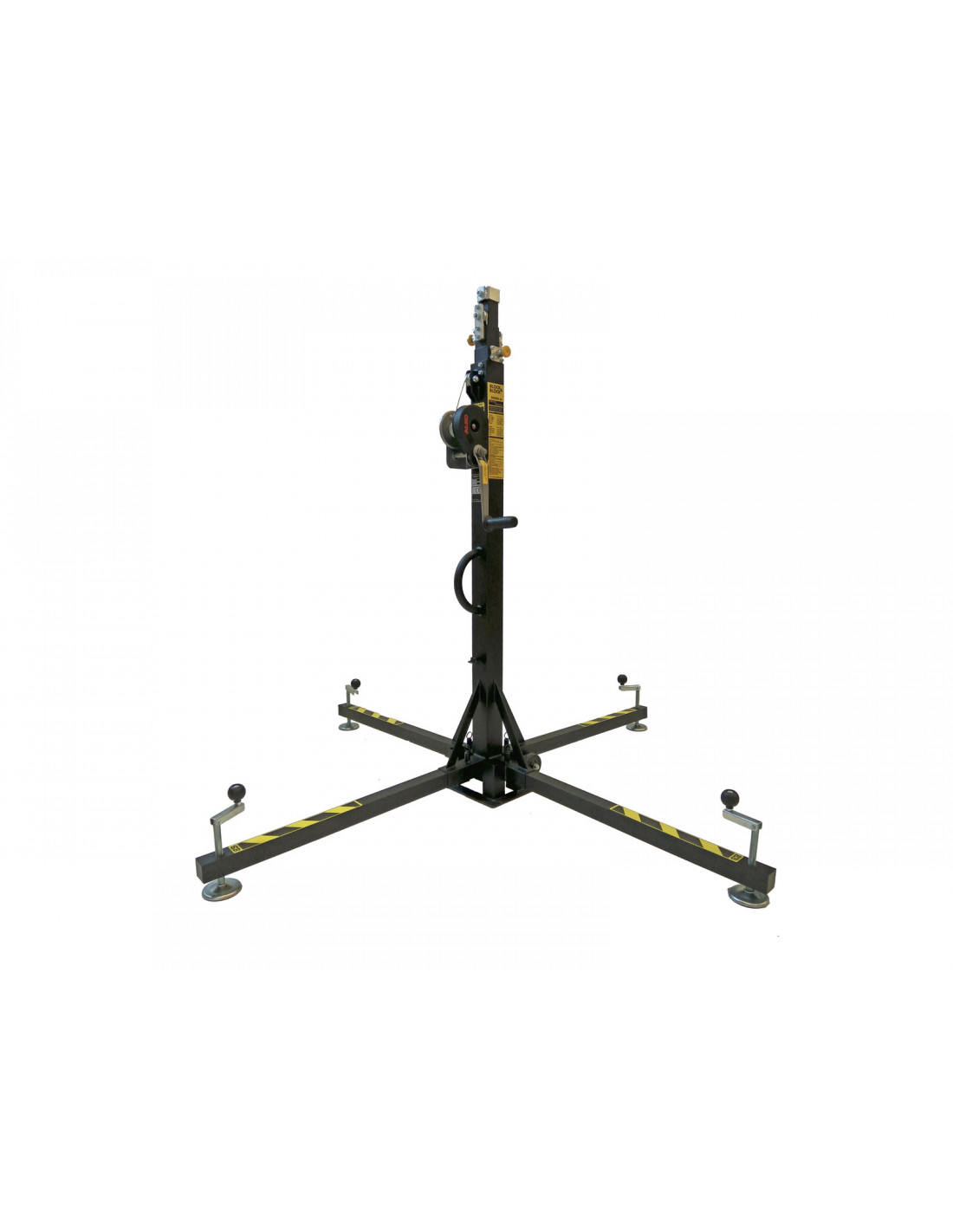

High-quality truss lift for loads up to 150 kg, made in EU
- Four-part telescopic ground support
- 4 mm steel rope
- Safety bolts to lock the different sections at different heights

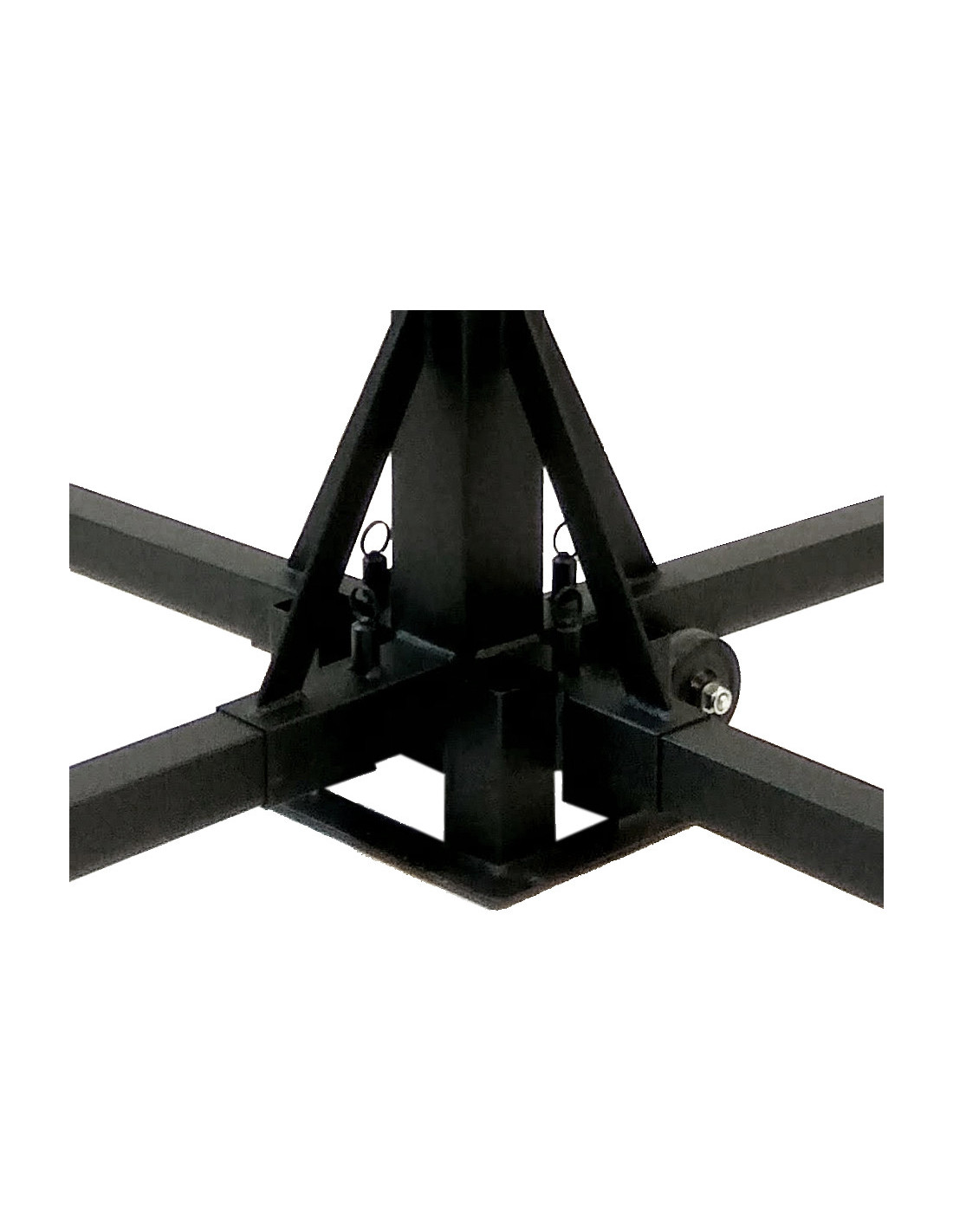

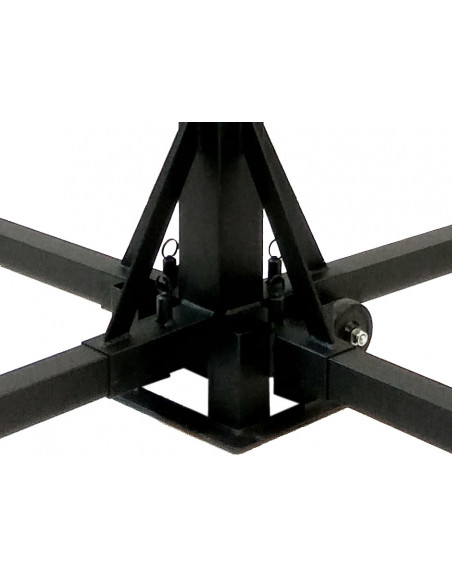

- Locking bolts in the base area to lock the booms
- Booms with adjustable spindle and steel plate with non-slip rubber base
- Corrosion protection through epoxy coating
- Water level to ensure a vertical position
- Earthing connection
- Transport rolls to move the lift when retracted

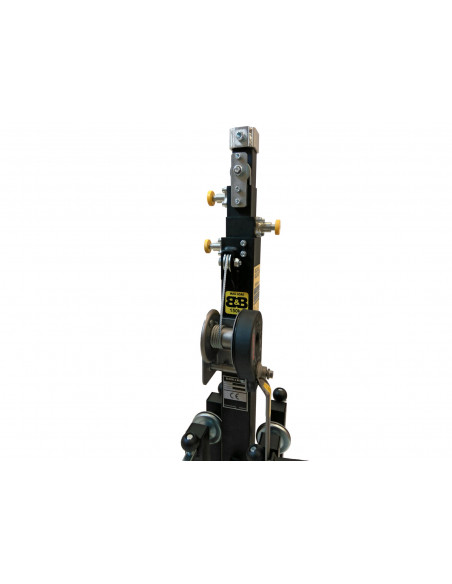

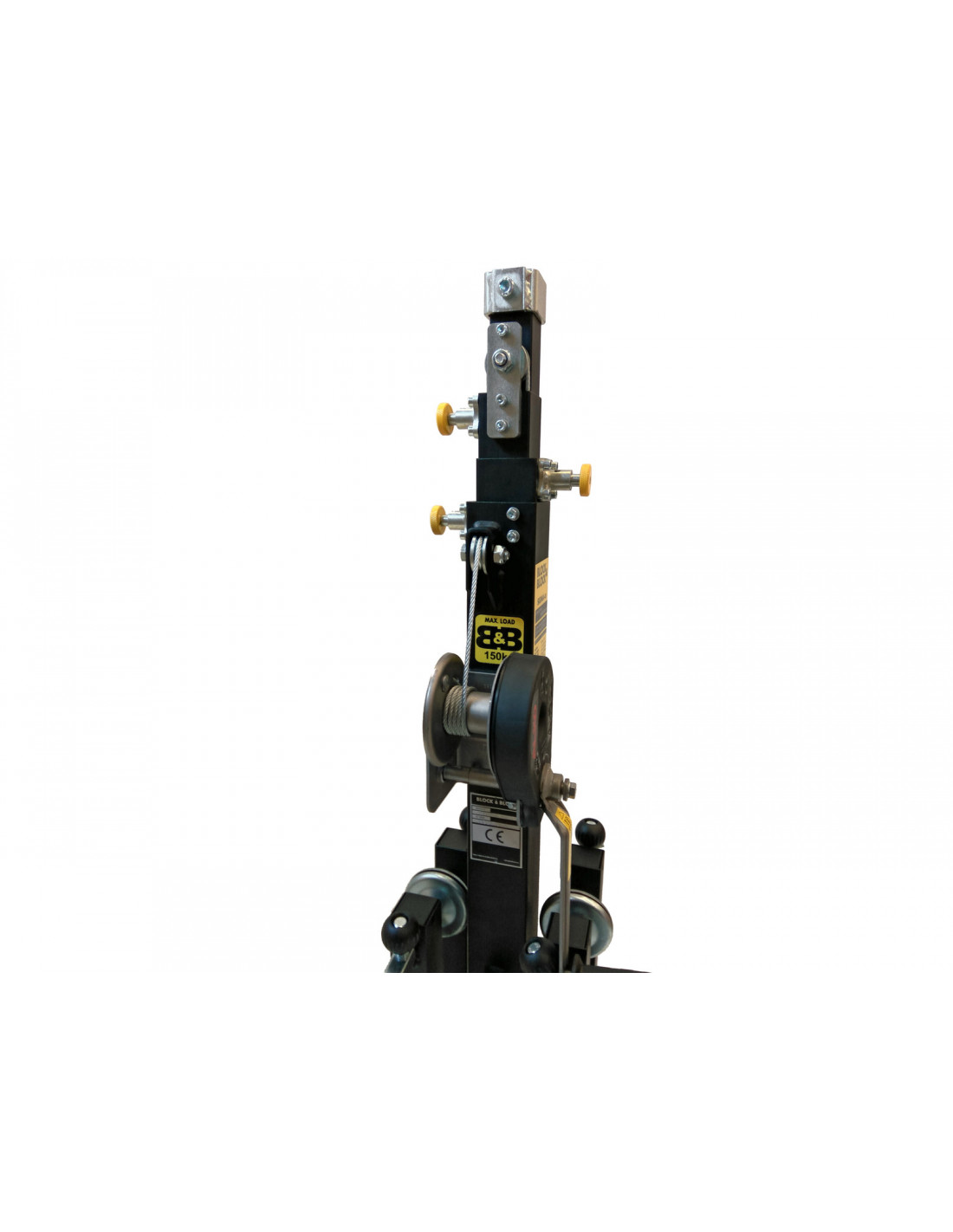

- AL-KO 351 PLUS winch: Maximum load 350 kg with automatic holding brake. CE declaration of conformity in compliance with the harmonized standards DIN EN 13157, EN 12100 I and II, EC Machinery Directive 2006/42/CE
- Galvanized steel ropes 6x19+1, manufactured in compliance with the standard 13414-1:2004, tensile strength 1770N/mm2
- Material: Carbon steel S-275-J0H, manufactured in compliance with the standards EN10219 and EN10305.5
- Made in Europe; with BGV-C1 test certificate
Maximum carrying capacity: | 150 kg |
Minimum load: | 25 kg |
Nominal tensile strenght of rope: | 1770 N/mm² |
Height: | Maximum: 470 cm Minimum: 149 cm |
Attachment system: | Ø 35mm |
Steel rope: | Ø 4 mm |
Type (general stands): | Truss lifter |
Material: | Steel (powder-coated) |
Base area: | Ø 1,77 m |
Weight: | 35,25 kg |
