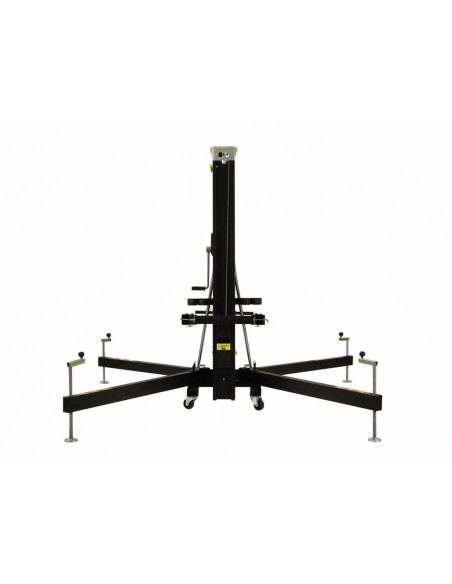

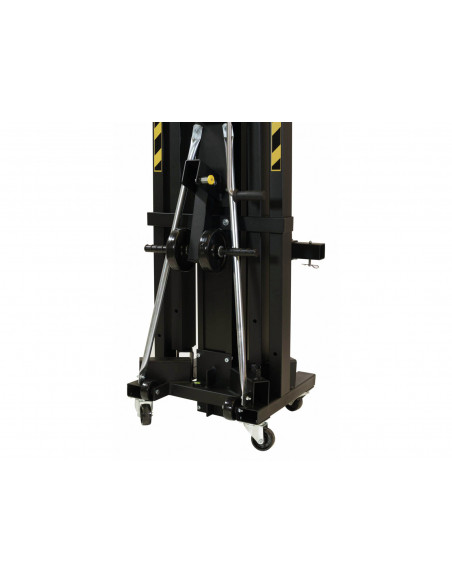

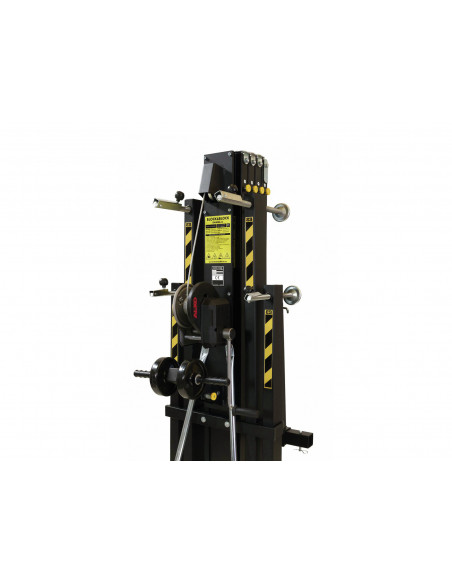

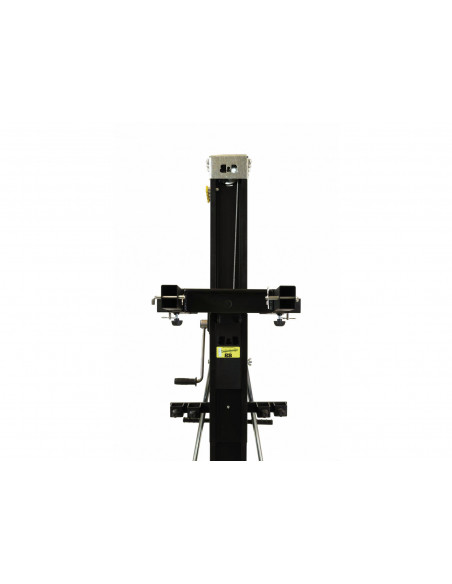

BLOCK AND BLOCK GAMMA-50 Truss lifter 300kg 6.2m

59000430
2 849,59 €




High-quality truss lift for loads up to 300 kg, made in EU

  • Five-part telescopic ground support
  • 6 mm steel rope
  • Safety bolts to lock the different sections at different heights
  • Locking bolts in the base area to lock the booms
  • Booms with adjustable spindle and steel plate with non-slip rubber base
  • Corrosion protection through epoxy coating
  • Water level to ensure a vertical position
  • Earthing connection
  • Transport rolls to move the lift when retracted
  • AL-KO COMPAC 900 winch: Maximum load 900 kg with automatic holding brake. CE declaration of conformity in compliance with the harmonized standards DIN EN 13157, EN 12100 I and II, EC Machinery Directive 2006/42/CE
  • Galvanized steel ropes 6x19+1, manufactured in compliance with the standard 13414-1:2004, tensile strength 1770N/mm2
  • Material: Carbon steel S-275-J0H, manufactured in compliance with the standards EN10219 and EN10305.5
  • Made in Europe; with BGV-C1 test certificate


Maximum carrying capacity:300 kg
Minimum load:40 kg
Nominal tensile strenght of rope:1770 N/mm²
Height:Maximum: 620 cm above 5 sections
Minimum: 30 cm
Steel rope:Ø 6 mm
Type (general stands):Truss lifter
Material:Steel (powder-coated)
Transport dimensions:19 cm x 61 cm x 68 cm
Base area:Ø 2,1 m
Weight:140,50 kg
