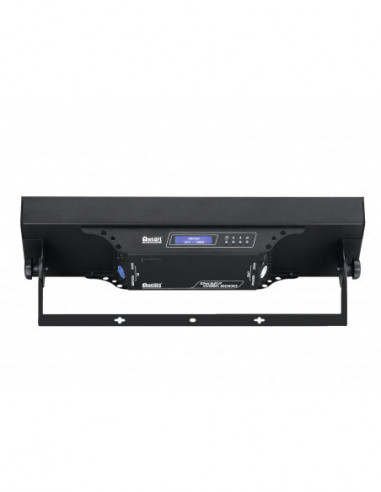

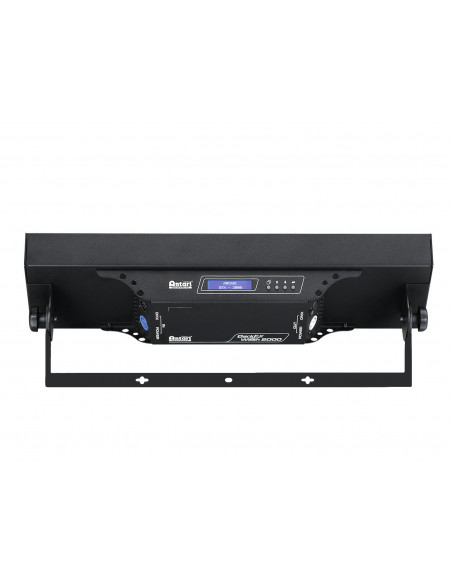

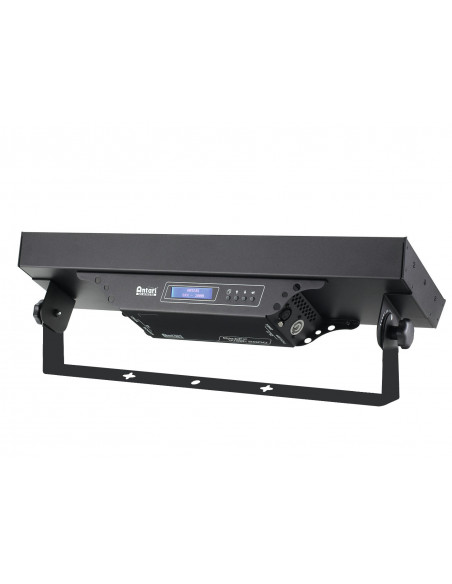

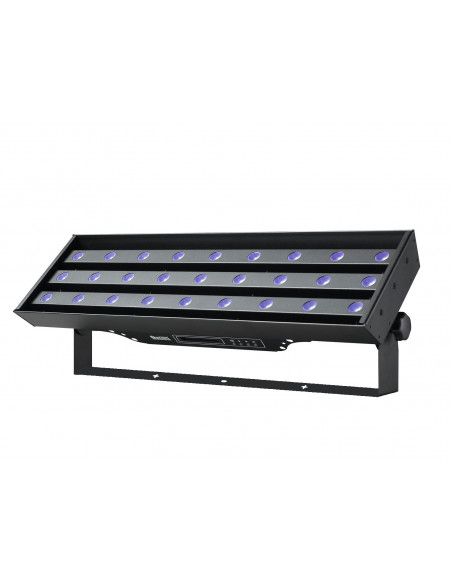

The Antari DarkFX Wash 2000 is an efficient high-output and low-power consumption UV LED wash panel that delivers a peak wavelength of 365 nm and radiant flux output of 20,290 mW at full intensity with minimum visible light. This ensures all UV-reactive materials reflect perfectly with stunningly bright and vivid colors. Equipped with 27 x 1.9 W high-power UV LEDs arranged into 3 modular arrays, it features a 25° narrow beam angle, flicker-free operation, and special optics to prevent wear degradation from high UV exposure. This IP20-rated LED panel has been designed for indoor use only and comes with an aluminium housing with an adjustable bracket for versatile mounting options. The DarkFX Wash 2000 is operated in one of two modes: Either in DMX mode with 2 channels via the 5-pin XLR connectors or in stand-alone mode via the LCD display and the 4 operating buttons. Use the powerCON input to connect it to the mains.
PRO DMX UV spot with 27 x 1.9 W UV LED, deep wavelength (365 nm)
- High-efficiency UV LED
- Peak wavelength at 365 nm
- Minimum visible light
- High output at full intensity
- Special optics will not degrade due to high UV exposure
- Swivel mounting bracket
- Control panel with LC display for easy configuration
- PowerCon input and output
- LED: 27 x high-power 1,9 W ultra violet (UV)
- Can be operated in 1; 2 CH mode
- Controlling by stand-alone; DMX
- Flicker-free projection
- Effect: UV effect
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 55 W |
| IP classification: | IP20 |
| Power connection: | Mains input PowerCON (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x PowerCON (gray) |
| Lamp type: | LED lamp |
| LED: | 27 x high-power 1,9 W ultra violet (UV) |
| DMX channels: | 1; 2 |
| DMX input: | 1 x 5-pin XLR (M) mounting version |
| DMX output: | 1 x 5-pin XLR (F) mounting version |
| Control: | Stand-alone; DMX |
| Beam angle: | 25° |
| Beam angle (1/2 peak): | 25° |
| Wavelength: | 365 nm |
| Housing color: | Black |
| Material: | Metal |
| Dimensions: | Width: 60 cm
Depth: 17,4 cm
Height: 17,9 cm |
| Weight: | 6,35 kg |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
