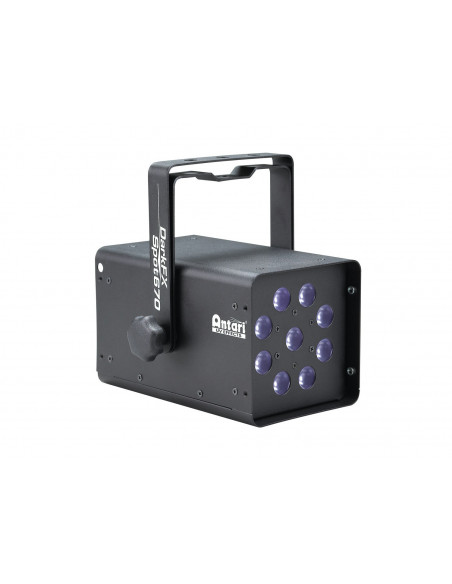

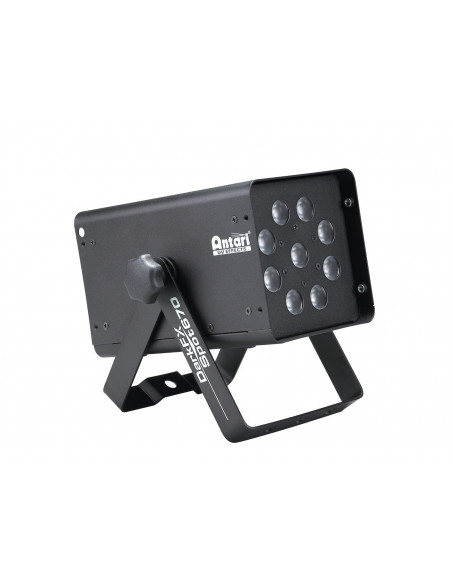

The Antari DarkFX Spot 670 is an efficient high-output and low-power consumption UV LED spot that delivers a peak wavelength of 365nm and radiant flux output of 6760 mW at full intensity with minimum visible light. This ensures all UV-reactive materials reflect perfectly with stunningly bright and vivid colors. Equipped with 9 x 1.9 W high-power UV LEDs, it features a 15° narrow beam angle, flicker-free operation, and special optics to prevent wear degradation from high UV exposure. This IP20-rated LED spot comes with an aluminium housing with an adjustable brackets for versatile mounting options. The DarkFX Spot 670 is operated in one of two modes: Either in DMX mode with 2 channels via the 5-pin XLR connectors or in stand-alone mode via the LCD display and the 4 operating buttons. Use the powerCON input to connect it to the mains.
PRO DMX UV spot with 9 x 1.9 W UV LED, deep wavelength (365 nm)
- High-efficiency UV LED
- Peak wavelength at 365 nm
- Minimum visible light
- High output at full intensity
- Special optics will not degrade due to high UV exposure
- Narrow beam angle

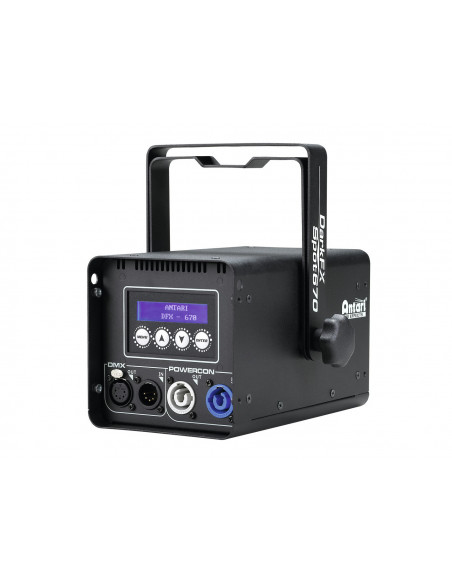

- Control panel with LC display for easy configuration
- PowerCon input and output
- LED: 9 x high-power 1,9 W ultra violet (UV)
- Can be operated in 1; 2 CH mode
- Controlling by stand-alone; DMX
- Flicker-free projection
- Effect: UV effect
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 20 W |
| IP classification: | IP20 |
| Power connection: | Mains input PowerCON (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x PowerCON (gray) |
| Lamp type: | LED lamp |
| LED: | 9 x high-power 1,9 W ultra violet (UV) |
| DMX channels: | 1; 2 |
| DMX input: | 1 x 5-pin XLR (M) mounting version |
| DMX output: | 1 x 5-pin XLR (F) mounting version |
| Control: | Stand-alone; DMX |
| Beam angle: | 15° |
| Beam angle (1/2 peak): | 15° |
| Wavelength: | 365 nm |
| Housing color: | Black |
| Material: | Metal |
| Dimensions: | Width: 12,5 cm
Depth: 20,5 cm
Height: 12,5 cm |
| Weight: | 2,86 kg |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
