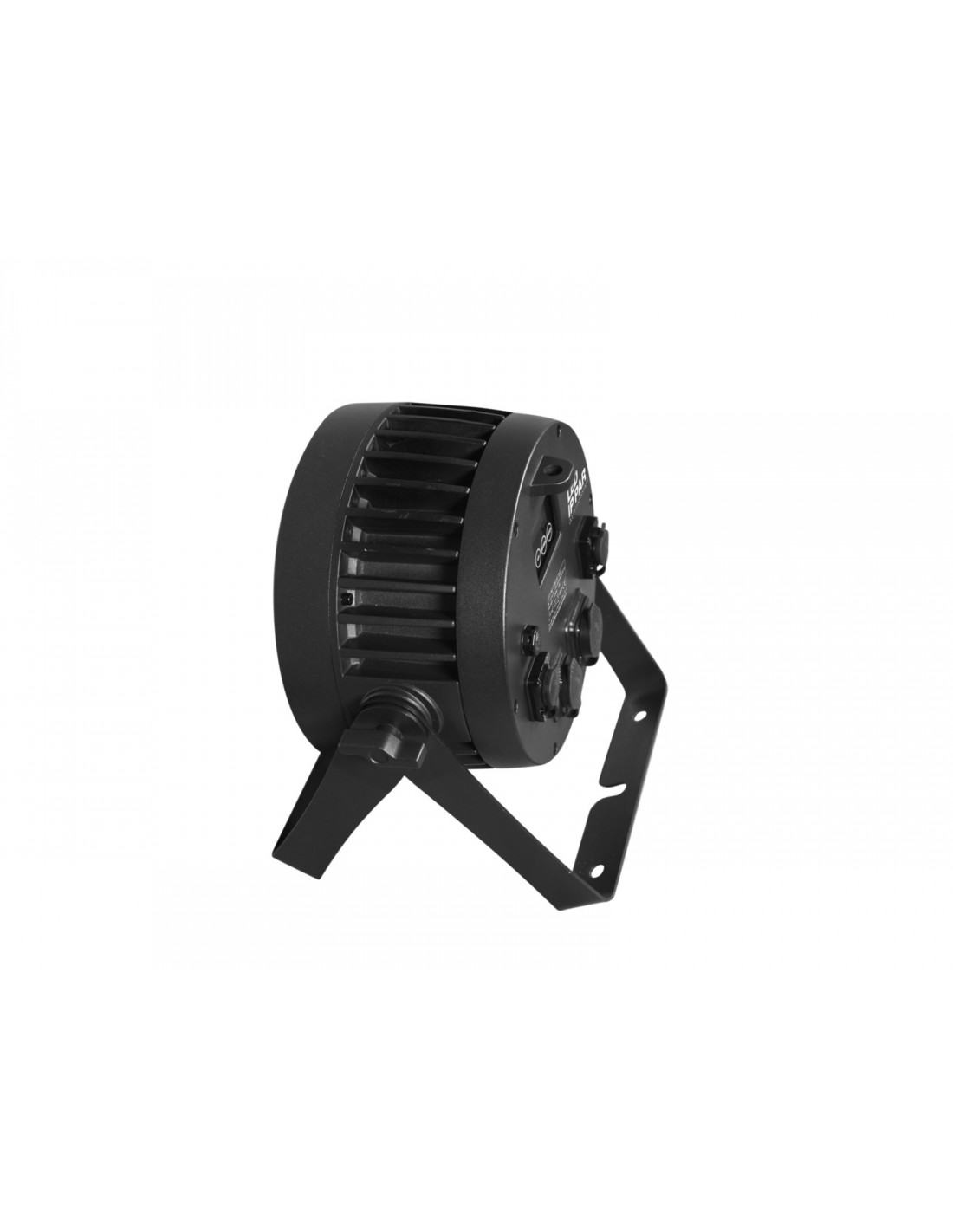

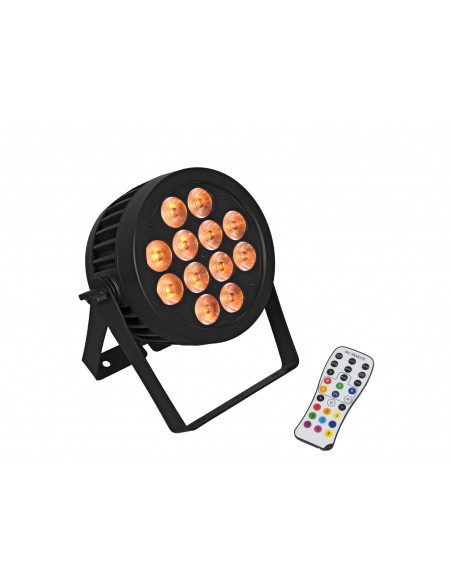

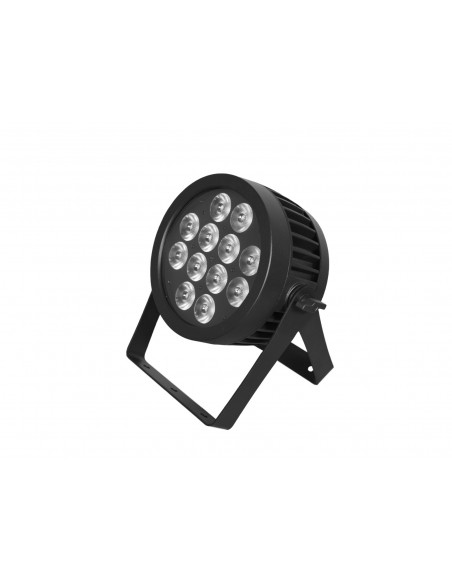

Weather-proof (IP65) spotlight with 12 x 7in1-LED and RGBA/CW/WW+UV color mixing
- 12 high-power 9W RGBA/CW/WW+UV LEDs (7in1)
- 15° beam angle
- Diffuser covers with 40° and elliptical 15° x 60° beam angle optional
- For indoor and outdoor use (IP65)
- Auto, master/slave and DMX mode
- Built-in auto show programs
- Direct color selection for 28 preset colors
- Stepless color blend, color change, color fade, dimmer and strobe effect

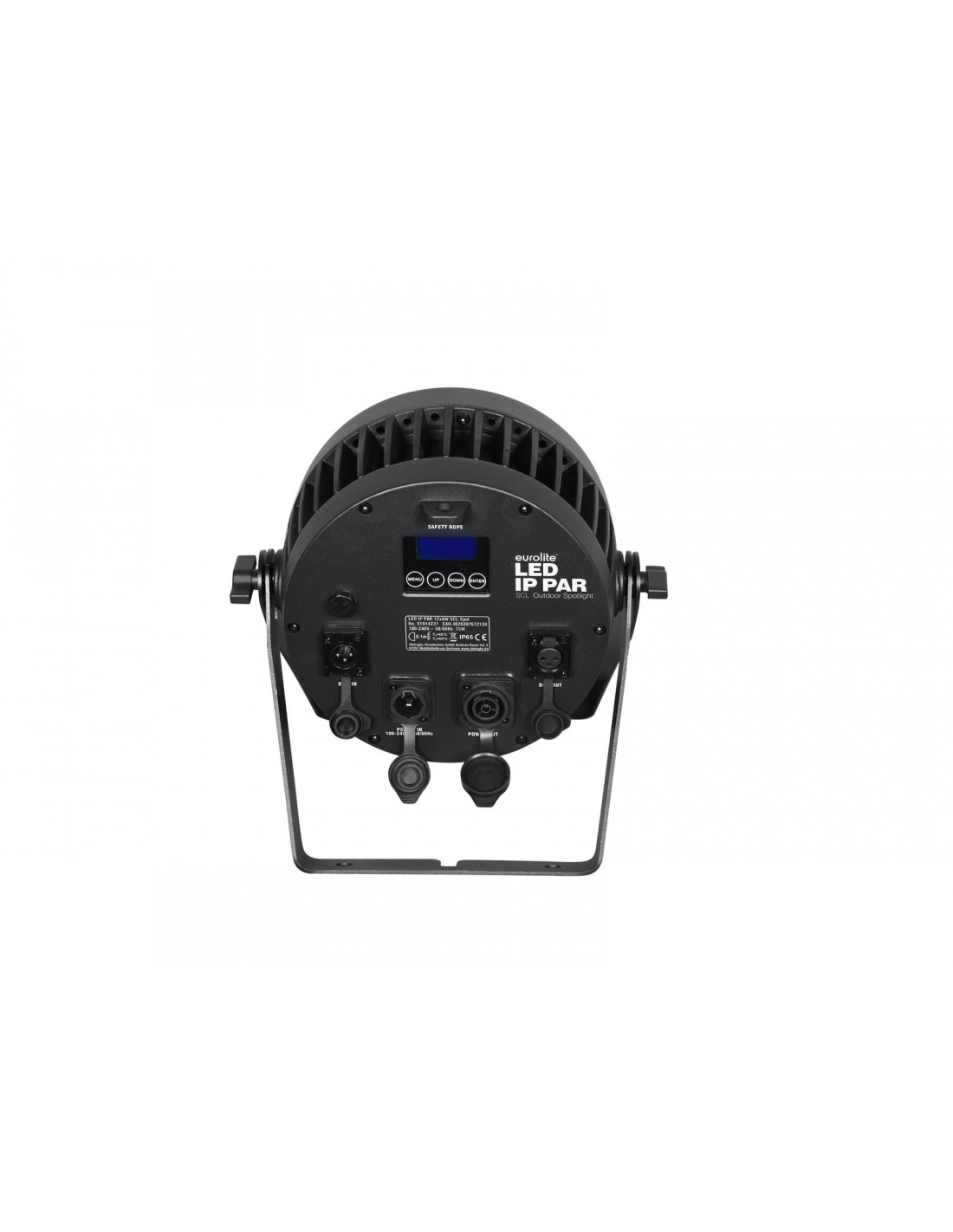

- Control panel with LC display for easy configuration
- Convenient wireless control via included IR remote control
- Swivel mounting bracket
- Additional bracket for floor use
- Mains input and output for power linking up to 8 units
- LED: 12 x COB (chip-on-board) 9 W 7in1 SCL RGB/CW/WW/A/UV (homogenous color mix)
- Can be operated in 3; 5; 7; 9; 13 CH mode
- The device is cooled by passive convection
- Controlling by DMX; IR remote control; stand-alone
- Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW
- Flicker-free projection
- Suitable for outdoor use
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 75 W |
| IP classification: | IP65 |
| Protection class: | Class I |
| Power connection: | Mains input IP T-Con (M) mounting version power supply cord with safety plug |
| Power output: | IP T-Con (F) mounting version |
| Lamp type: | LED lamp |
| LED: | 12 x COB (chip-on-board) 9 W 7in1 SCL RGB/CW/WW/A/UV (homogenous color mix) |
| DMX channels: | 3; 5; 7; 9; 13 |
| DMX input: | 3-pin XLR (M) mounting version IP |
| DMX output: | 3-pin XLR (F) mounting version IP |
| Cooling: | Passive convection |
| Control: | DMX; IR remote control; stand-alone; Light´J; LED PC-Control 512; EASY SHOW |
| Beam angle: | 15° |
| Beam angle (1/2 peak): | 15° |
| Beam angle (1/10 peak): | 29° |
| Housing color: | Black |
| Dimensions: | Width: 28,5 cm
Depth: 15,3 cm
Height: 31,35 cm |
| Weight: | 5,20 kg |
| Noise classification: | Class 0 (no noise at all) |
| Remote control |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese (provided) |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
