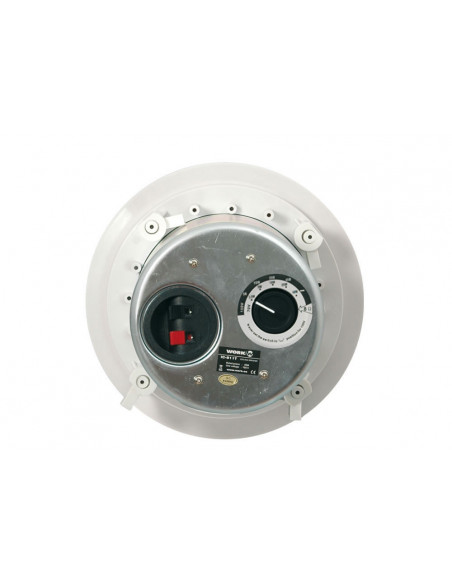

Designed for commercial audio applications, these three ceiling speakers take advantage of a high quality coaxial transducer to provide quality sound results.
Their power tap selector makes them suitable for high impedance (70 V, 100 V) voltage line and low impedance (8 ohm) installations. The transformer is contained within a metal can enclosure to improve response.
- Type: Two way ceiling speakers.
- Elements: 6" woofer + 0.5" TWT.
- Power taps (100 V line): 30 W (333 ohm) / 15 W (666 ohm) / 7.5 W (1k3 ohm) / 3.8 W (2k6 ohm).
- Power taps (70 V line): 30 W (163 ohm) / 15 W (326 ohm) / 7.5 W (653 ohm) / 3.8 W (1k3 ohm) / 1.9 W (2k6 ohm).
- Power taps (low impedance): 30 W at 8 ohm.
- Frequency response: 90 Hz - 20 kHz.
- Sensitivity (1W/1m): 88 dB.
- Max SPL: 102 dB.
- RAL colour code: RAL 9016.
- Material (housing): ABS plastic.
- Material (grille): Powder coated iron mesh.
- Mounting dimensions (Ø x D): 200 x 30 mm (max ceiling thickness).
- Dimensions (Ø x D): Ø 230 x 150 mm.
- Weight: 2.3 kg.
