Coluna Amplificada.
IC 6 Pro A é uma coluna de encastrar de 2 vias com 25 W (8 ohm) graças a um amplificadorn class D integrado. Suporta entrada balanceada para uma optimizaçao de sinal proveniente de instalaçoes com grandes distancias de cablagem.

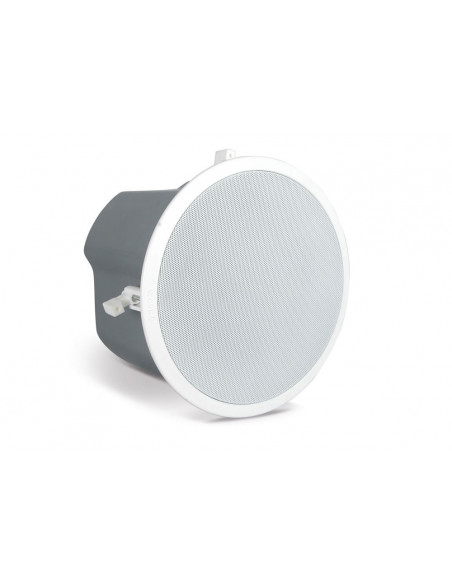

IC 6 Pro A is an innovative ceiling speaker that includes a 25 W amplifier and which is controlled by DMX. IC 6 Pro A can cover many zones (512 zones per universe). This is a convenient solution for integrators in order to control each speaker independently from the others, using a DMX console.
Taking advantage of digital control.

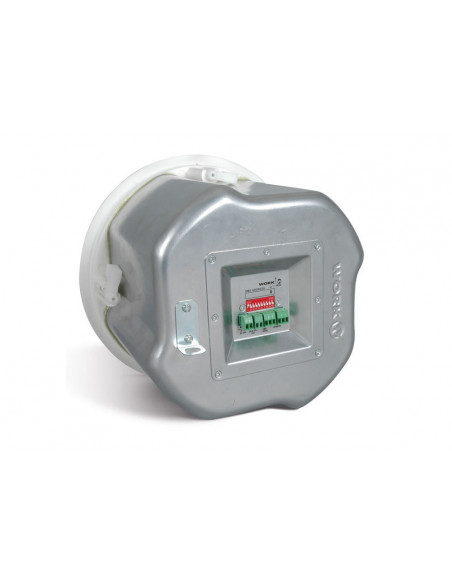

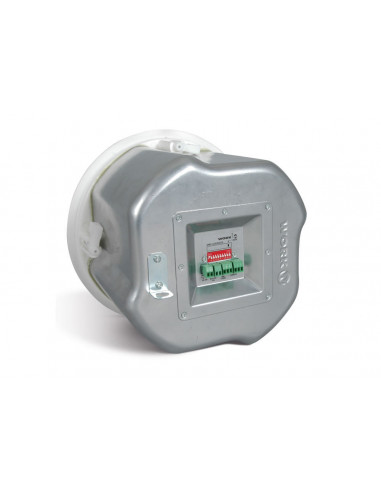

DMX is a protocol that has been initially designed for lighting consoles, but it is also well-known by integrators because it is compatible with the most common control devices (Creston, AMX, etc.). Each IC 6 Pro A uses a DMX channel for volume control and to switch on/off the amplifier (Standby mode for energy savings). A DIP switch is available on rear panel to select the start DMX address.
Type: Self-powered two way ceiling speaker.
Elements: 6.5" woofer + ¾" TWT.
Amplifier power: 25 W at 8 ohm.
Frequency response: 60 Hz - 20 kHz.
Input impedance: 10 kohm.
Sensitivity (1W/1m): 88 dB.
Max SPL: 102 dB.
RAL colour code: RAL 9003.
Material (housing): ABS plastic.
Material (grille): Powder coated iron mesh.
Mounting dimensions (Ø x D): 220 x 30 mm (max. ceiling thickness).
Dimensions (Ø x D): 241 x 171 mm.
Weight: 2.8 kg.
