OMNITRONIC WMR-1M UHF-Receiver, mono

Referência 13072231

45,62 €

Wireless mono audio transmission system, 823-832 MHz

Wireless audio transmission system with UHF PLL technology
For wireless transmission of audio line and microphone signals with one transmitter and one or more receivers
Duplex gap 823-832 MHz
Compatible with MOM-10BT4 system
Parallel use of up to 4 transmitters possible
16 channels selectable
Audio line output and earphone connection via 3.5 mm jack
Volume level control
Operation via 2 batteries or rechargeable batteries size AA
Built-in charging function via micro USB port with LED indicator
Supports operation and simultaneous charging
Robust metal fixing clip

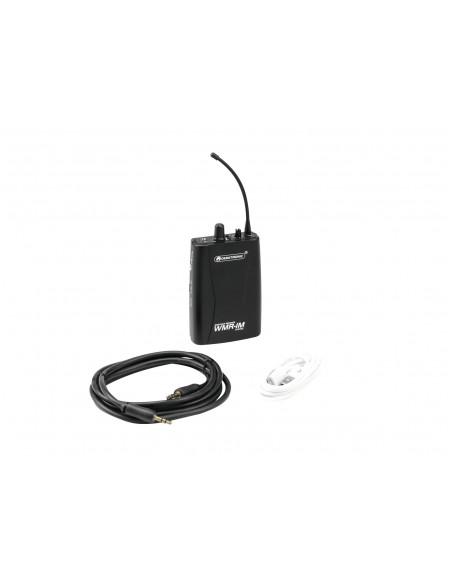

Incl. USB charging cable and 3.5 mm audio cable
License-free and approved in large parts of the EU
Use a operating range up to 50m

Power supply:	5 V DC 3 V DC
Power connection:	Mains input micro USB (F) mounting version included Battery/battery pack
Battery:	2 x Mignon (AA) included
S/N ratio:	>80 dB
Connector type:	3.5 mm jack (mono) mounting version
Control elements:	Level control, power switch, frequency selector switch
Status LED:	Signal, power
Connections:	Output: line via 1 x 3.5 mm jack (mono) mounting version 1 V Output: headphones via 1 x 3.5 mm jack (stereo) mounting version
Frequency band:	UHF 823 - 832 MHz
Frequency selection:	16 Switchable frequencys
Pilot frequency:	32,768 khz
Modulation:	FM
Frequency stability:	± 0,01 %
Range:	50 m
Switch:	On/off switch
Material:	Plastic
Color:	Black
Dimensions:	Width: 6,7 cm Depth: 3,0 cm Height: 11,2 cm
Weight:	210 g
