OMNITRONIC WMR-2M UHF Receiver, mono

Referência 13072228

51,48 €

Wireless mono audio transmission system, 823-832 MHz + 863-865 MHz

Wireless audio transmission system with UHF PLL technology
For wireless transmission of audio line and microphone signals with one transmitter and one or more receivers
Compatible with wireless modules and microphones of the MOM and DAD series
16 channels selectable
Parallel use of up to 4 transmitters possible
Audio line output and earphone connection via 3.5 mm jack
Volume level control
Built-in charging function via micro USB port with LED indicator
Supports operation and simultaneous charging
Robust metal fixing clip

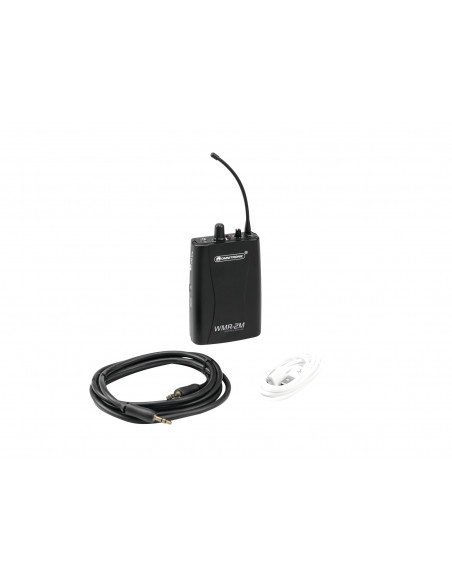

Incl. USB charging cable and 3.5 mm audio cable
WM-2M camera tripod optional
License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
Use a operating range up to 50m

Type:	Audio transmission
Power supply:	3 V DC Or 5 V DC
Power connection:	Battery/battery pack Mains input micro USB (F) mounting version included
Battery:	2 x Mignon (AA) (not included)
S/N ratio:	>80 dB
Control elements:	, frequency selector switch, level control
Status LED:	Power, signal
Connections:	Output: line via 1 x 3.5 mm jack (mono) mounting version 0,75 V Output: headphones via 1 x 3.5 mm jack (mono) mounting version 1 V
Frequency band:	UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency selection:	16 Switchable frequencys
Pilot frequency:	32,768 khz
Modulation:	FM
Frequency stability:	± 0,01 %
Range:	50 m
Switch:	On/off switch
Material:	Plastic
Color:	Black
Dimensions:	Width: 6,7 cm Depth: 3,0 cm Height: 11,2 cm
Weight:	130 g
Receiver
Weight:	80 g
