Wireless mono audio transmission system, 823-832 MHz + 863-865 MHz
- Wireless audio transmission system with UHF PLL technology
- For wireless transmission of audio line and microphone signals with one transmitter and one or more receivers
- Compatible with wireless modules and microphones of the MOM and DAD series
- 16 channels selectable
- Parallel use of up to 4 transmitters possible
- Volume level control
- Operation via 2 batteries or rechargeable batteries size AA
- Built-in charging function via micro USB port with LED indicator
- Supports operation and simultaneous charging
- Robust metal fixing clip

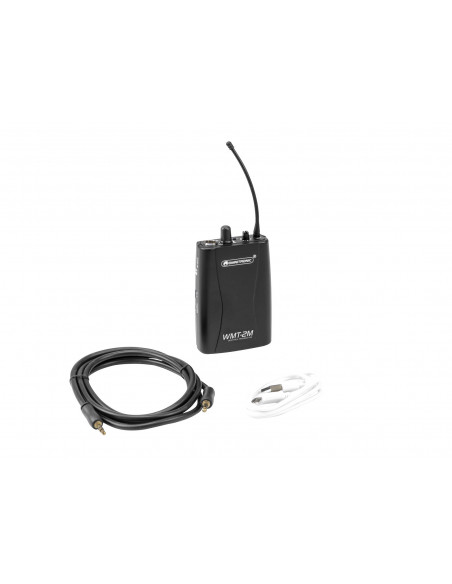

- Incl. USB charging cable and 3.5 mm audio cable
- Incl. lavalier microphone
- WM-2M camera tripod optional
- License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
transmitter
- Use a operating range up to 50m
| Type: | Bodypack with microphone |
| Weight: | 150 g |
| Transmitter |
| Type: | Pocket transmitter |
| Power supply: | Or
5 V DC
3 V DC |
| Power connection: | Mains input micro USB (F) mounting version included
Battery/battery pack |
| Battery: | 2 x Mignon (AA) (not included) |
| S/N ratio: | >90 dB |
| Connections: | Input: Microphone via 1 x Mini XLR (M) 3-pin mounting version
Input: line via 1 x 3.5 mm jack (stereo) mounting version |
| Frequency band: | UHF 863 - 865 MHz; UHF 823 - 832 MHz |
| Frequency selection: | Switchable frequencys |
| Pilot frequency: | 32,768 khz |
| Modulation: | FM |
| RF power output: | 10 mW |
| Frequency stability: | ± 0,01 % |
| Range: | 50 m |
| Switch: | On/off switch |
| Material: | Plastic |
| Color: | Black |
| Dimensions: | Width: 6,7 cm
Depth: 3,0 cm
Height: 11,2 cm |
| Weight: | 80 g |
| Microphone |
| Type: | Lavalier microphone |
| Power connection: | Mini XLR (F) 3-pin |
| Capsule type: | Condenser |
