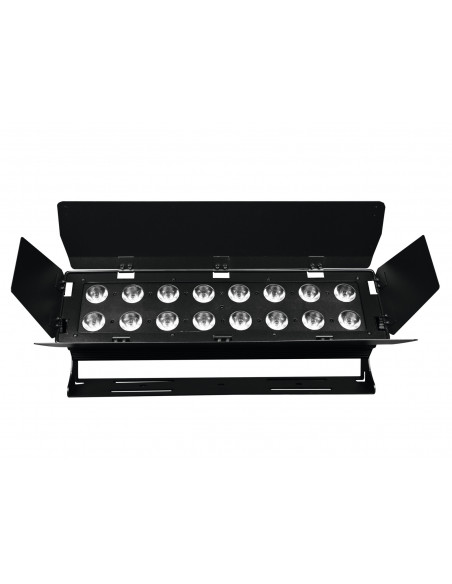

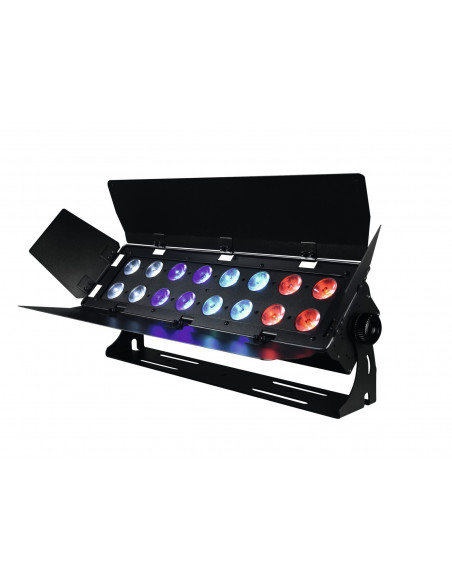

Light effect bar with RGBAW+UV color mixing, with 5-pin QuickDMX connector
- 16 high-power 12 W RGBAW+UV LEDs (6in1)
- 4 segments for dynamic running lights
- Built-in auto and music show programs
- Direct color selection for 26 preset colors
- Variable color temperature 2700-8000 K
- Stepless color blend, color change, color fade, dimmer and strobe effect
- 4 barn doors to avoid blinding the audience and for protection during transport

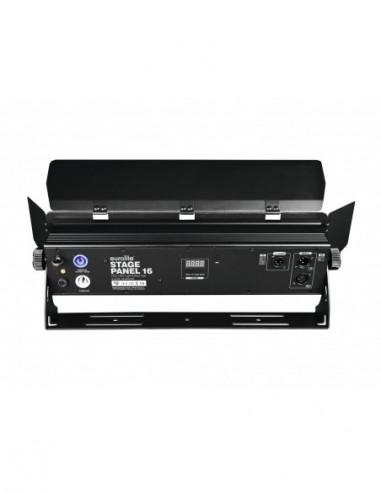

- Control panel with LED display for easy configuration

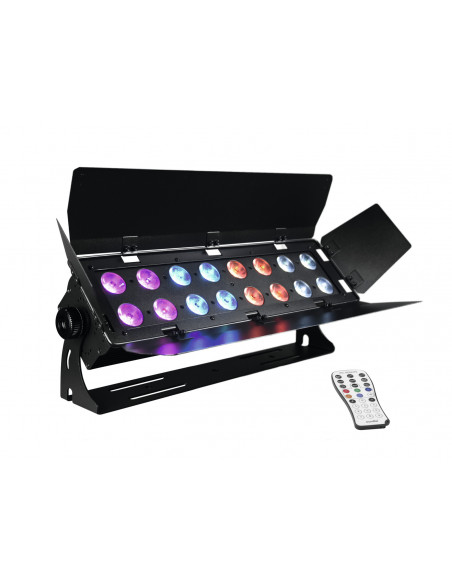

- Convenient wireless control via included IR remote control
- Supports QuickDMX - the wireless DMX system from Eurolite
- Built-in phantom-powered socket for QuickDMX receivers (accessories)
- Swivel mounting bracket
- Mains input and output for power linking up to 8 units
- LED: 16 x high-power 12 W 6in1 HCL RGBWA/UV (homogenous color mix)
- Can be operated in 2; 3; 5; 6; 8; 11; 24; 32 CH mode
- The device is cooled by passive convection
- Controlling by stand-alone; DMX; IR remote control; Sound to light via Microphone; QuickDMX via 5-pin XLR (M) mounting version (optional); Master/slave function
- Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE
- Flicker-free projection
- Effect: Strobe effect; UV effect
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 70 W |
| IP classification: | IP20 |
| Protection class: | Class I |
| Power connection: | Mains input P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: | 1 x P-Con (gray), mounting version |
| Lamp type: | LED lamp |
| LED: | 16 x high-power 12 W 6in1 HCL RGBWA/UV (homogenous color mix) |
| Flash rate: | 0 - 20 Hz |
| DMX channels: | 2; 3; 5; 6; 8; 11; 24; 32 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Passive convection |
| Control: | Stand-alone; DMX; IR remote control; Sound to light via Microphone; QuickDMX via 5-pin XLR (M) mounting version (optional); Master/slave function; Light´J; LED PC-Control 512; EASY SHOW; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE |
| Beam angle: | 23° |
| Beam angle (1/2 peak): | 23° |
| Beam angle (1/10 peak): | 42° |
| Housing color: | Black |
| Dimensions: | Width: 59,1 cm
Depth: 19,9 cm
Height: 30,3 cm |
| Weight: | 5,35 kg |
| Remote control |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
