Powerful active PA system with DSP, Bluetooth, 700 W (15" sub, 8" tops)
- Provides perfect sound and good level stability in various kinds of mobile PA applications up to medium-sized party events - ideal for solo entertainers, bands and mobile discos

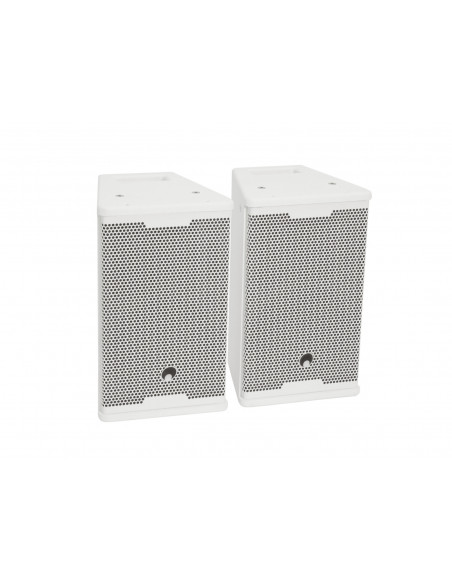

OMNITRONIC MAXX-1508 2-Way Top 2x white
2 x 8" passive full-range speaker, 150 W RMS
- 2-way bass-reflex system with 8" bass-midrange speaker and 1" compression driver
- Serve as a mobile 2.1 system together with the MAXX-1508 subwoofer
- With passive 2-way crossover, PTC tweeter protection
- Speaker connection
- Stable MDF enclosures (16 mm) with scratch-resistant lacquer surface, steel grille and recessed handle
- Flange for stand installation
- M8 threaded inserts for suspended installation
- Applications: standing, as monitor, on a subwoofer or speaker stand, suspended
OMNITRONIC MAXX-1508DSP 2.1 Active Subwoofer white
Powerful 15" active subwoofer with DSP and Bluetooth, 700 watts
- 15" subwoofer with Class D amplifier in bassreflex cabinet
- Amplifier power: 400 W RMS + 2 x 150 W RMS for two satellites
- Serves as a mobile 2.1 system together with MAXX-1508 2-way tops
- Balanced signal input XLR/6.3 mm jack L/R
- Additional stereo RCA input, with level switch
- Parallel XLR line output L/R
- Integrated Bluetooth audio streaming for your smartphones and tablets
- 3 EQ presets with indicators, DSP-controlled
- Signal limiter, DSP-controlled
- Separate volume control for subwoofer and satellites
- Stereo/mono selection
- Built-in fast charger (5 V/2 A) for convenient charging of your mobile USB devices
- MPX/MDF enclosure (16 mm) with scratch-resistant lacquer surface and steel grille
- M20 metal flange for mounting a satellite speaker
- Castors available as accessory
- Delivery includes two speaker cables
- Digital signal processor
- Controlling by Bluetooth
- With Wheels optional
| Weight: |
46,60 kg |
| OMNITRONIC MAXX-1508 2-Way Top 2x white |
| Rated power: |
150 W RMS |
| Program power: |
300 W |
| Frequency range: |
120 - 18000 Hz |
| Sensitivity: |
92 dB |
| Max. SPL: |
116 dB |
| Dispersion angle: |
90° x 60° |
| Impedance: |
4 ohms |
| Flying points: |
5 x M8 thread |
| Connections: |
Input: speakers via 1 x speaker built-in socket (F) |
| Speakers: |
1 x woofer (8") approx. 20 cm
1 x compression tweeter highs (1") approx. 2,5 cm |
| Type of speaker: |
Compact cabinet speaker |
| Material: |
, 16 mm; MDF (Medium-density fibreboard) |
| Dimensions: |
Width: 25,5 cm
Depth: 24,1 cm
Height: 42,1 cm |
| Weight: |
17,60 kg |
| OMNITRONIC MAXX-1508DSP 2.1 Active Subwoofer white |
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
800 W |
| Rated power: |
400 W RMS LF; 2 x 150 W RMS HF |
| Frequency range: |
Bass 35 - 120 Hz
Top 120 - 18000 Hz |
| Sensitivity: |
95 dB |
| Max. SPL: |
120 dB |
| DSP: |
Digital signal processor |
| Control: |
Bluetooth |
| Attachment system: |
M20 thread |
| Circuitry: |
Class D |
| Connections: |
Input: stereo via 1 x stereo RCA
Input: stereo via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Output: line via 1 x 3-pin XLR
Output: speakers via speaker built-in socket (F) |
| Input channels: |
1 x stereo via XLR or RCA or bluetooth, channel control via Rotary dial |
| Speakers: |
1 x woofer (15") approx. 38 cm with ferrit magnet |
| Type of speaker: |
Subwoofer |
| Type: |
Vented |
| Transport aid: |
Wheels optional |
| Material: |
Birch multiplex, 16 mm; MDF (Medium-density fibreboard) |
| Dimensions: |
Width: 45,4 cm
Depth: 57 cm
Height: 53,4 cm |
| Weight: |
30,00 kg |
