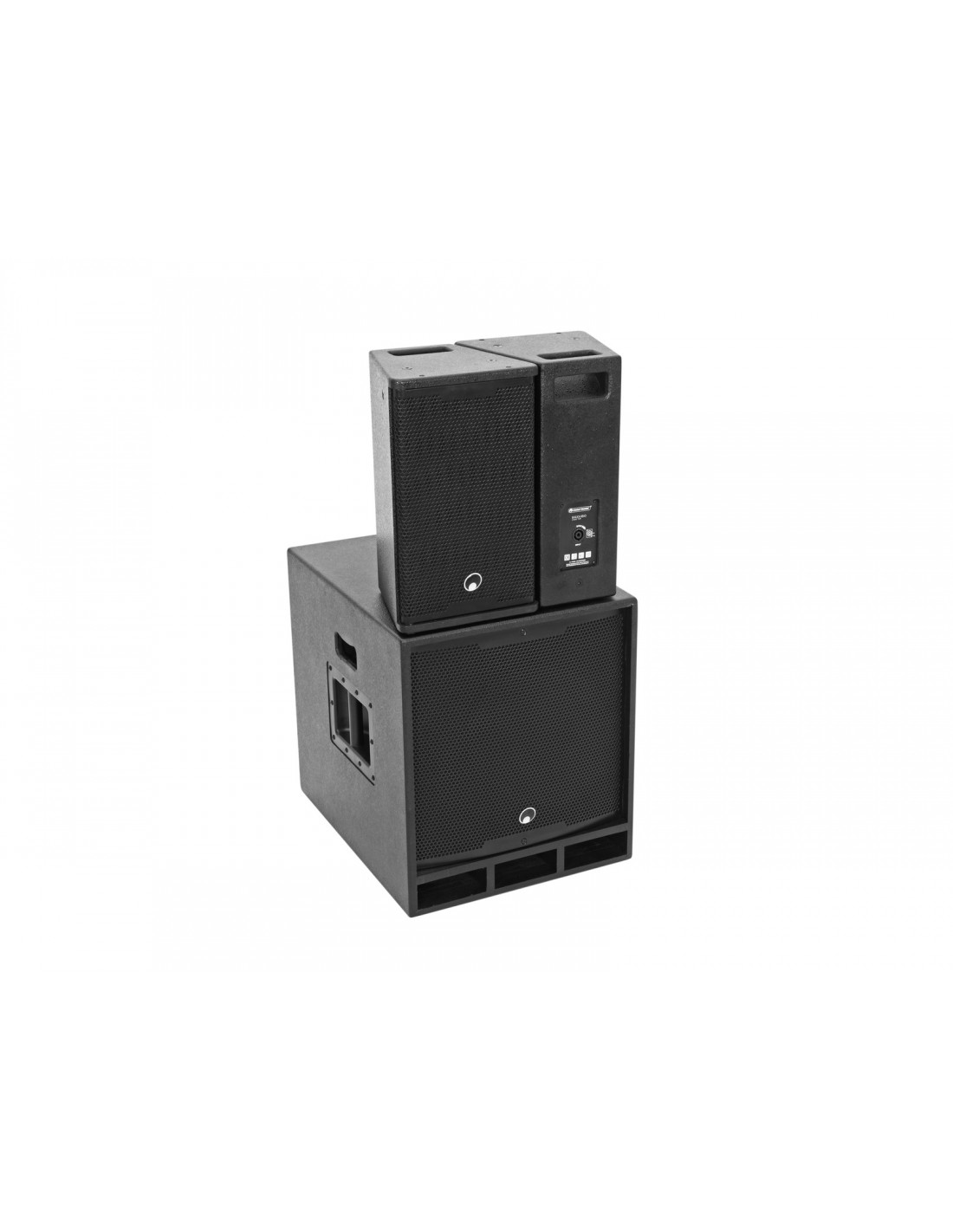

The MAXX-1810DSP is an active 2.1 PA system with 800 watts of continuous power (1600 watts peak) and 123 dB maximum SPL capability. It provides perfect sound and good level stability in various kinds of mobile PA applications.The high-power 18" subwoofer with power-efficient Class D amplifier in a bass reflex cabinet delivers powerful, dry bass. The two satellite loudspeakers with 10" bass/midrange drivers and 1" compression drivers are equipped with a passive 2-way crossover including PTC tweeter protection and ensure a well-rounded sound experience.Equipped with a DSP (digital signal processor) which enables convenient application presets for quick sound contouring, the MAXX-1810DSP offers combined XLR and 6.3 mm inputs with XLR parallel output (for linking additional systems), and an additional RCA input with level adjustment. Enjoy music wirelessly from your smartphone or any other Bluetooth device via the integrated Bluetooth audio receiver and charge them at the same time via the integrated powerbank. The MAXX-1810DSP subwoofer's professional hardware includes a rugged multiplex/MDF enclosure, scratch-resistant lacquer, steel grille and ergonomically shaped handles. Swivel castors for easy transport are optionally available. Matching speaker stands, distance tubes, and stand forks are also available as accessories.
Powerful active PA system with DSP, Bluetooth, 800 W (18" sub, 10" tops)
- Provides perfect sound and good level stability in various kinds of mobile PA applications up to medium-sized party events - ideal for solo entertainers, bands and mobile discos
OMNITRONIC MAXX-1810 2-Way Top 2x
2 x 10" passive full-range speaker, 150 W RMS
- 2-way bass-reflex system with 10" bass-midrange speaker and 1" compression driver
- Serve as a mobile 2.1 system together with the MAXX-1508 subwoofer
- With passive 2-way crossover, PTC tweeter protection
- Speaker connection
- Stable MDF enclosures (16 mm) with scratch-resistant lacquer surface, steel grille and recessed handle
- Flange for stand installation
- M8 threaded inserts for suspended installation
- Applications: standing, as monitor, on a subwoofer or speaker stand, suspended
OMNITRONIC MAXX-1810DSP 2.1 Active Subwoofer
High-power 18" active subwoofer with DSP and Bluetooth, 800 watts
- 18" subwoofer with Class D amplifier in bassreflex cabinet
- Amplifier power:500 W RMS + 2 x 150 W RMS for two satellites
- Serves as a mobile 2.1 system together with MAXX-1810 2-way tops
- Balanced signal input XLR/6.3 mm jack L/R
- Additional stereo RCA input, with level switch
- Parallel XLR line output L/R
- Integrated Bluetooth audio streaming for your smartphones and tablets
- 3 EQ presets with indicators, DSP-controlled
- Signal limiter, DSP-controlled
- Separate volume control for subwoofer and satellites
- Stereo/mono selection
- Built-in fast charger (5 V/2 A) for convenient charging of your mobile USB devices
- MPX/MDF enclosure (16 mm) with scratch-resistant lacquer surface and steel grille
- M20 metal flange for mounting a satellite speaker
- Castors available as accessory
- Delivery includes two speaker cables
- Digital signal processor
- Controlling by Bluetooth
- With Wheels optional
| Weight: |
57,40 kg |
| OMNITRONIC MAXX-1810 2-Way Top 2x |
| Rated power: |
2 x 150 W RMS |
| Program power: |
300 W |
| Frequency range: |
90 - 18000 Hz |
| Sensitivity: |
93 dB |
| Max. SPL: |
119 dB |
| Dispersion angle: |
90° x 60° |
| Impedance: |
4 ohms |
| Connections: |
Input: speakers via 1 x speaker built-in socket (F) |
| Speakers: |
1 x woofer (10") approx. 25 cm
1 x compression tweeter highs (1") approx. 2,5 cm |
| Type of speaker: |
Compact cabinet speaker |
| Dimensions: |
Width: 28,5 cm
Depth: 28,8 cm
Height: 46,6 cm |
| Weight: |
20,95 kg |
| OMNITRONIC MAXX-1810DSP 2.1 Active Subwoofer |
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
800 W |
| Rated power: |
500 W RMS LF; 2 x 150 W RMS HF |
| Frequency range: |
Bass 32 - 190 Hz
Top 90 - 18000 Hz |
| Sensitivity: |
99 dB |
| Max. SPL: |
123 dB |
| DSP: |
Digital signal processor |
| Control: |
Bluetooth |
| Circuitry: |
Class D |
| Connections: |
Input: stereo via 1 x stereo RCA
Input: stereo via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Output: line via 1 x 3-pin XLR
Output: speakers via speaker built-in socket (F) |
| Input channels: |
1 x stereo via XLR or RCA or bluetooth, channel control via Rotary dial |
| Speakers: |
1 x woofer (18") approx. 45 cm with ferrit magnet |
| Type of speaker: |
Subwoofer |
| Type: |
Vented |
| Transport aid: |
Wheels optional |
| Material: |
Birch multiplex; MDF (Medium-density fibreboard) |
| Dimensions: |
Width: 50,4 cm
Depth: 60,8 cm
Height: 46,6 cm |
| Weight: |
36,45 kg |
