Active speaker with 15" woofer, 1,75" driver, LF: 300 W RMS, HF: 60 W RMS
- Active 15/2 full range system for mobile live and DJ applications
- DSP-controlled biamp amplifier (LF class D, HF class A/B)
- Application presets for quick sound contouring:
- LIVE (linear adjustment)
- MUSIC (slight low and high frequency boost)
- SPEECH (optimized speech intelligibility)
- DJ (increased presence and bass)
- TRIPOD (for stand mounting)
- MONITOR (for use as a floor monitor)
- WALL (for wall mounting)
- 24-bit DSP with adjustable high-pass filter, parametric 3-band EQ and signal delay
- Built-in Bluetooth player for audio streaming from compatible Bluetooth devices such as smartphones, tablets and notebooks
- 2-way bassreflex enclosure with 38 cm woofer and 4 cm titanium driver

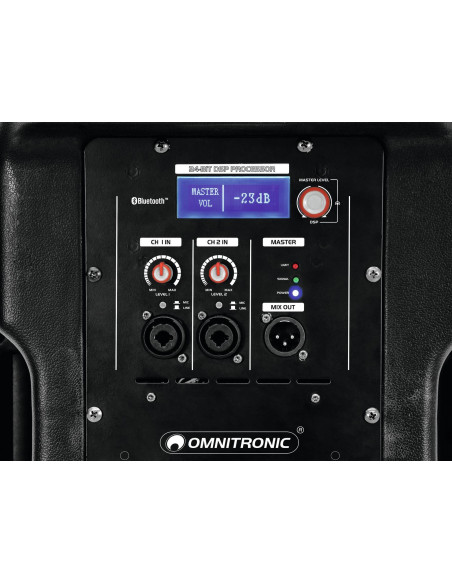

- Alphanumeric LCD with blue backlight
- 2 mic/line inputs (XLR/6.3 mm jack) with separate level controls
- Parallel XLR output for linking further active speaker systems
- Limiter for overload protection
- Master volume/DSP push control
- Power, signal and limit LED
- Stable plastic housing with protective grille and handles
- 36 mm flange for stand installation
- Applications: standing, as floor monitor, on a speaker stand or wall holder
- Controlling by Bluetooth
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
Max. 800 W |
| Power connection: |
Mains input IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Rated power: |
300 W RMS LF; 60 W RMS HF |
| Program power: |
600 W |
| Frequency range: |
50 - 20000 Hz |
| Sensitivity: |
96 dB |
| Max. SPL: |
121 dB |
| Control: |
Bluetooth |
| Attachment system: |
Ø 35mm |
| Circuitry: |
Class D Biamp |
| Equalizer: |
Master: 1 x 3-band tone control |
| Connections: |
Output: line via 1 x 3-pin XLR |
| Input channels: |
2 x mono with Mic-line switch via 3-pin XLR/6.35mm jack (F) combination socket (mounting version), channel control via Rotary dial |
| Speakers: |
1 x woofer (15") approx. 38 cm
Voice coil compression tweeter highs (1.75") approx. 4.5 cm |
| Type of speaker: |
Compact cabinet speaker |
| Type: |
Vented |
| Dimensions: |
Width: 37 cm
Depth: 45 cm
Height: 70 cm |
| Weight: |
19,65 kg |
