Aktive speaker, 12" woofer, 1" driver, 140 W RMS
- Class A/B circuitry: optimum sound and power at low weight and compact dimensions
- 2-way bass-reflex system with 30 cm woofer and 2.5 cm tweeter
- 2 mic inputs with separate level controls
- Line input, RCA
- Master control with 2-way tone control, clip and power LED
- Line output for linking further active speaker systems

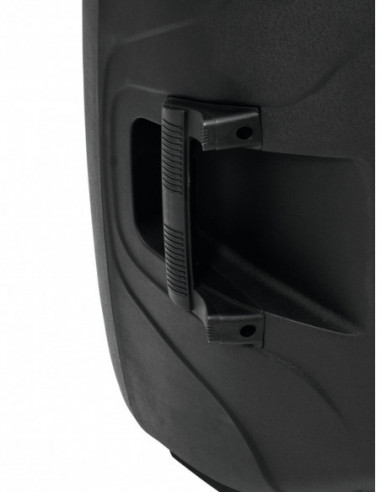

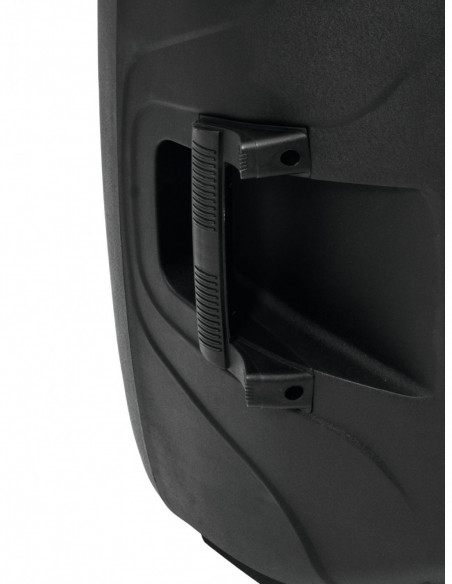

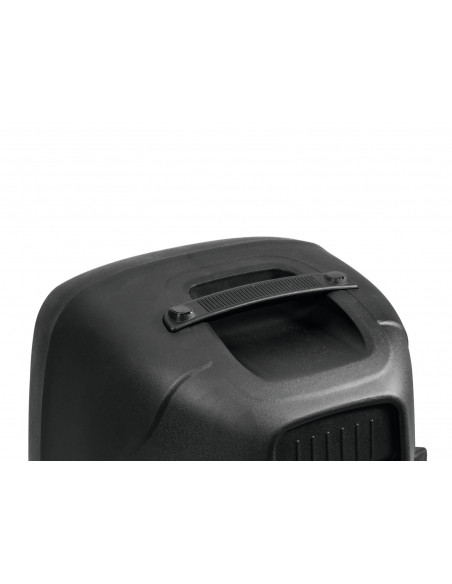

- Light-weight plastic cabinet with metal grille and carrying handles
- 2 wheels for easy transport
- Flange for stand installation
- Can be used as floor monitor, standing, on a speaker stand or wall holder
- For mobile live and DJ applications
| Power supply: |
230 V AC, 50 Hz |
| Power connection: |
Mains input IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Rated power: |
140 W RMS |
| Program power: |
280 W |
| Frequency range: |
50 - 20000 Hz |
| Max. SPL: |
120 dB |
| Attachment system: |
Ø 35mm |
| Equalizer: |
Master: 1 x 2-band tone control |

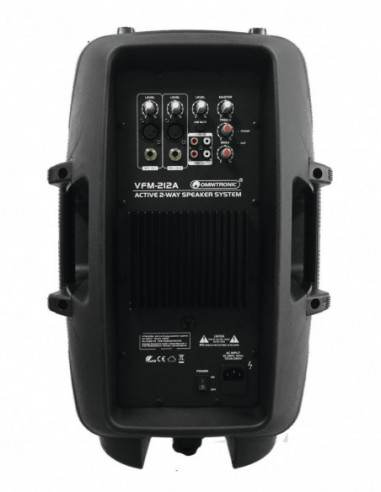

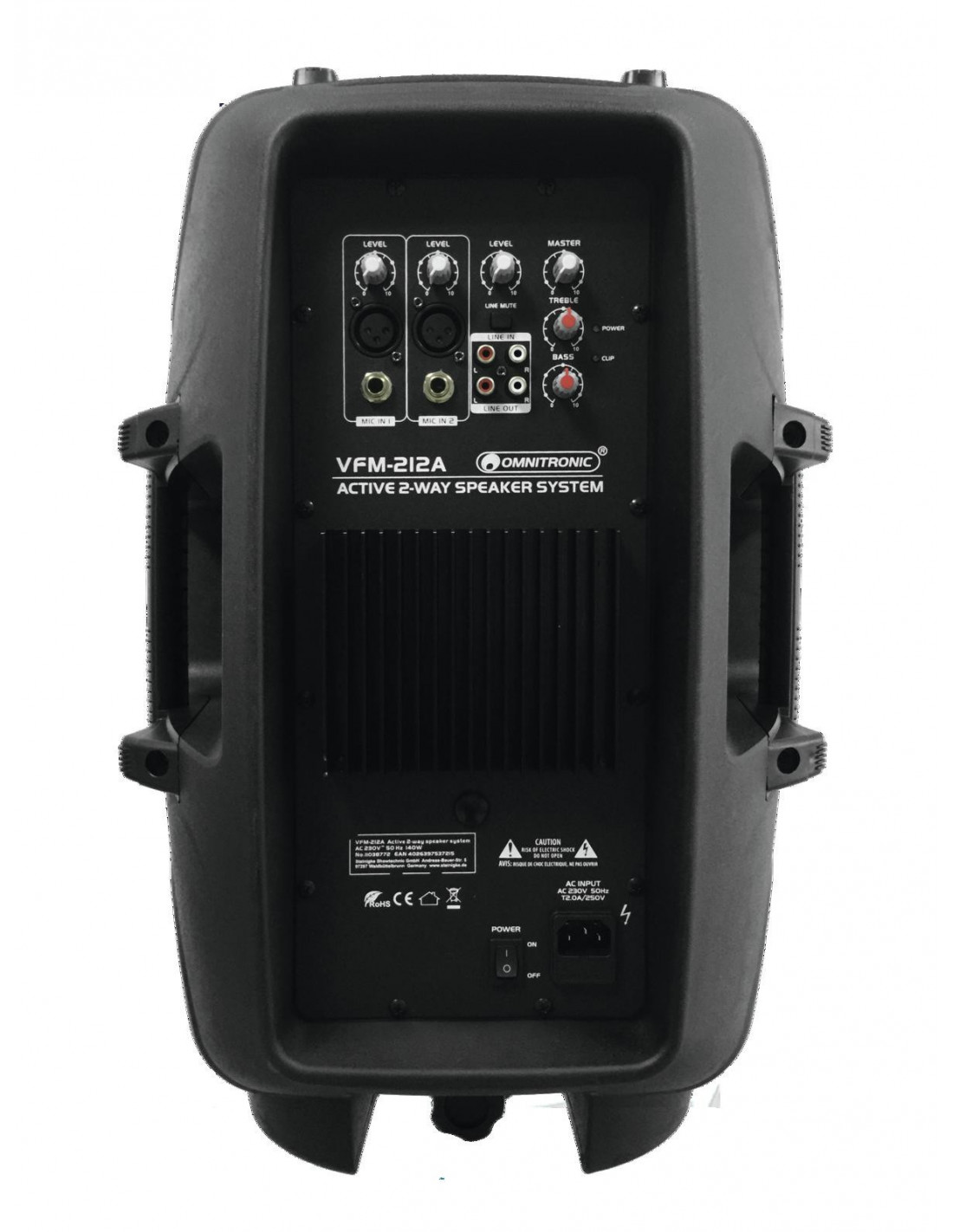

| Connections: |
Input: Microphone via 2 x 3-pin XLR
Input: Microphone via 2 x 6.3 mm plug (unbal.)
Input: line via 1 x stereo RCA
Output: line via stereo RCA |
| Input channels: |
2 x mono via XLR or jack, channel control via Rotary dial
1 x stereo with Line-player switch via RCA or player, channel control via Rotary dial |
| Speakers: |
1 x compression tweeter highs (1") approx. 2,5 cm with ferrit magnet
Voice coil compression tweeter highs (1") approx. 2,5 cm
Horn vent (1") approx. 2,5 cm
1 x woofer (12") approx. 30 cm with ferrit magnet
Voice coil lows (1.5") approx. 4 cm |
| Type of speaker: |
Compact cabinet speaker |
| Dimensions: |
Width: 42 cm
Depth: 34,2 cm
Height: 63 cm |
| Weight: |
10,50 kg |
