- Sensitivity (1W @ 1m): 125 dB, 2x speaker cables to connect subwoofer to tops with a length of 10 m, all patch cables for connecting the top are included with delivery
- 208 SUBWOOFER: Equipment: 2x 8" woofer, Bluetooth receiver, SNR:> 100 dB, DSP presets, connections: 2x XLR/jack combo input, 2x XLR line output, 2x speaker twist outputs, housing: 15 mm plywood with textured paint, 2x M20 speaker flanges, dimensions: 26.5 x 56 x 46 cm, weight: 20.1 kg
- 104 TOP PART: Equipment:1x 4" woofer, coaxial 1" tweeter, beam angle: 90°, housing: 12 mm plywood with textured paint, dimensions: 23 x 13 x 16.5 cm each, weight: 3.6 kg each

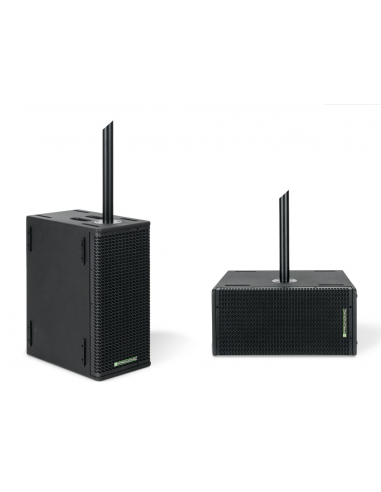

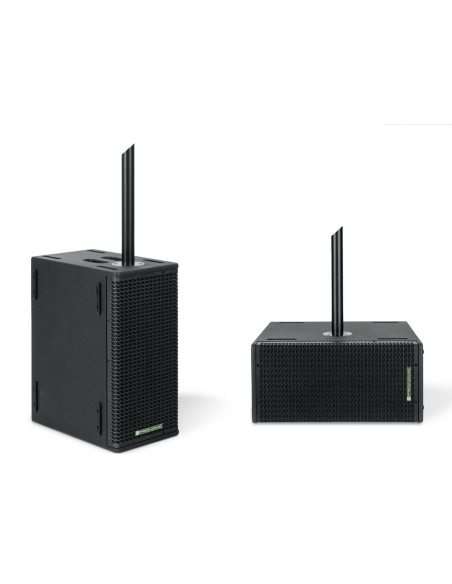

- DISTANCE BAR: Distance bar made of steel, screwable with M20 thread, height adjustable from 75-135 cm, max.load capacity: 40 kg
The V-Array series from Pronomic offers professional active systems for a wide range of applications. The active subwoofers supply the passive top parts, which, as a special feature, can be adjusted in angle. The adjustable arrangement allows you to target your sound to your audience. From solo entertainers to event technicians, you have the right setup for every need.
V-Array Compact Twin Set

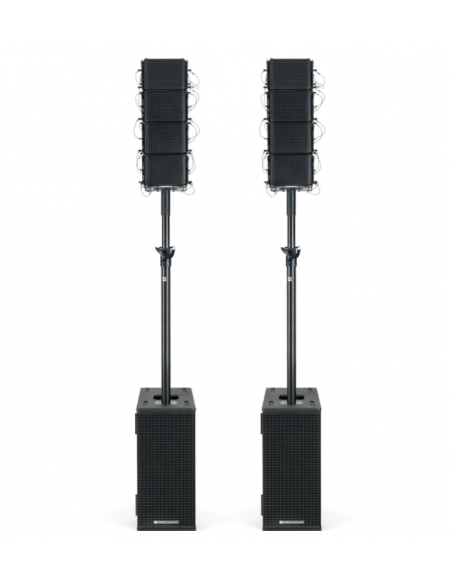

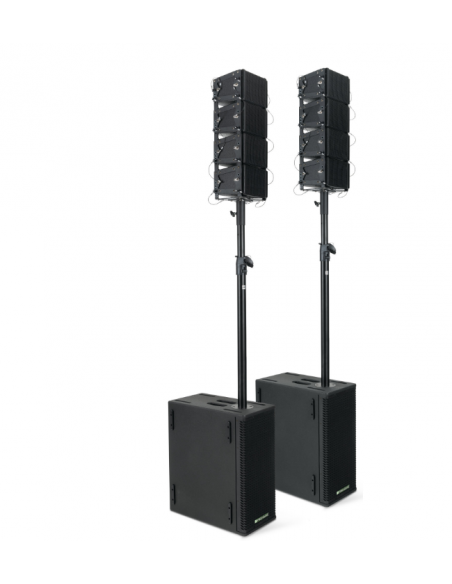

The compact set consists of two subwoofers and 4 tops. With the distance bar, you can use it in a classic 2.2 configuration and can also be used on small stages. With optional stands, the tops can also be used independently of the subs. All cables to connect the Individual components are included in delivery.
208 SA Subwoofer
The subwoofer with a 15 mm plywood housing has two speakers, each 8" (20.5 cm) in diameter, each of which runs on a Class D power amplifier. The load outputs for the tops are in speaker twist format and can be used with a stereo or a mono signal. For quick adaptation to the current application, the subwoofer has 5 DSP presets, and the built-in Bluetooth® receiver can even be used to play music wirelessly during breaks.
104 TP Tops

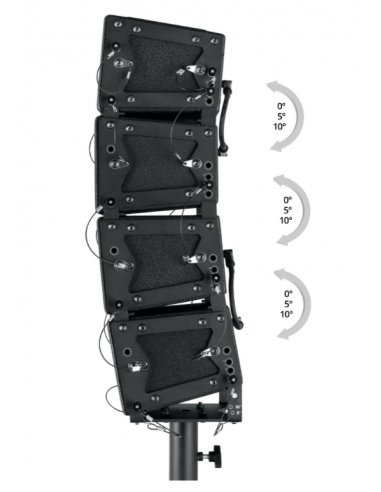

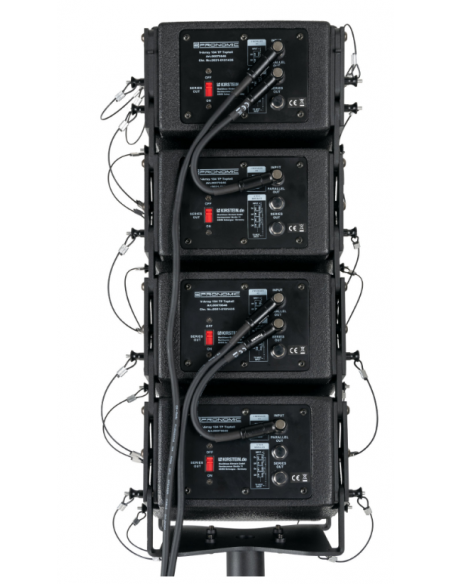

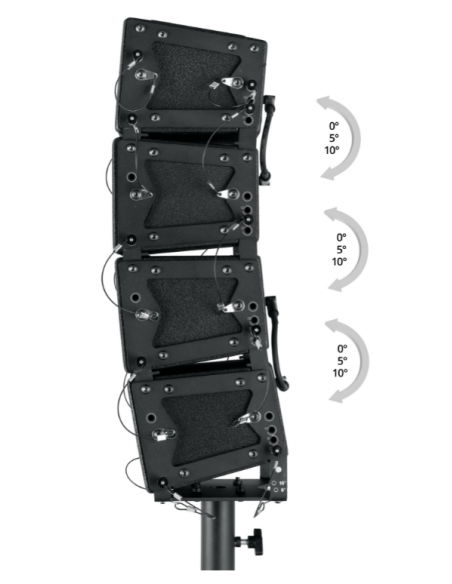

The passive 2-way tops each have a 4" (10 cm) membrane and a coaxially arranged 1" tweeter. A special feature of the Pronomic V-Arrays: All top parts have a connection mechanism that allows connection of several elements to each other and adjustment of their angle (in 5° increments). For help with finding your own configuration, operating instructions are included.
Convincing sound and professional features!
