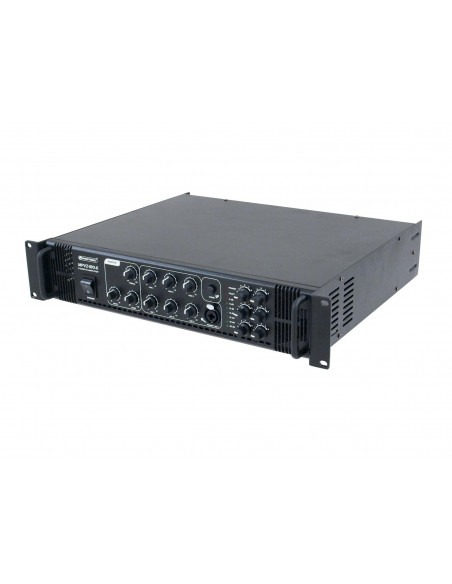

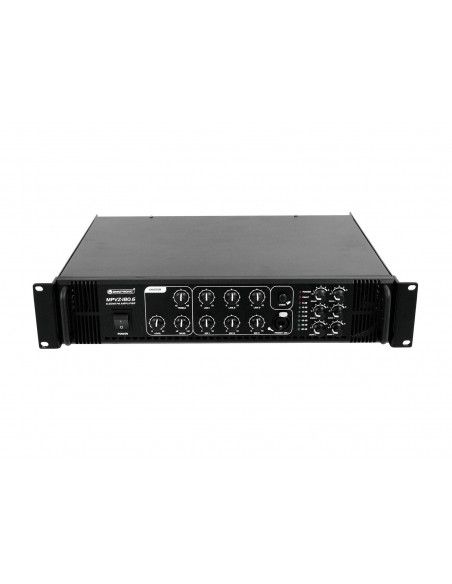

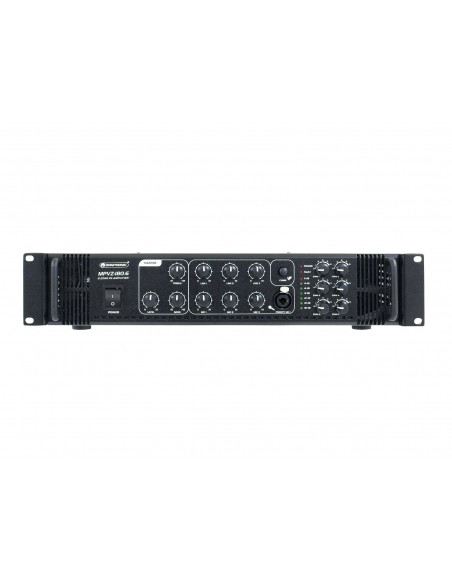

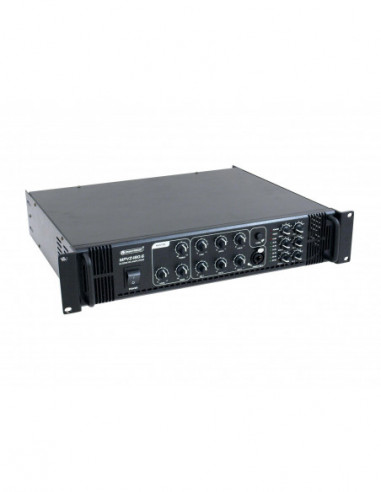

6-zone PA mono mixing amplifier, 180 W, zones switchable
- Comfortable control of PA speakers via 6-zone technology
- 6 PA zone outputs with separate 5-step level controls
- Master PA output (70 V and 100 V)
- Output for low-impedance speakers (4-16 ohms)
- 2 rear microphone inputs (6.3 mm jack, unbal.)
- 1 front microphone input (combination XLR/6.3 mm jack, unbal.) with adjustable priority circuit
- All microphone inputs with separate level controls
- 3 line inputs (stereo RCA) with separate level controls
- 1 line output (stereo RCA)
- Chime, switchable
- Treble and bass control for the output signal
- 7-fold LED level display
- Master control for the output signal
- Protection circuits with LED indication: over current, short circuit, turn-on delay
- The device is cooled by cooling fan
- (19") 48.3 cm rack installation 2 U
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 360,00 W |
| Output power: | 180 W RMS |
| Power connection: | Fixed power supply cord with safety plug |
| Frequency range: | 80 - 16000 Hz |
| S/N ratio: | >75 dB Microphone
>85 dB line |
| THD: | <0,5 % at 1 kHz |
| Cooling: | Cooling fan |
| Impedance: | Public address systems 100V; 4-16 ohms |
| Zone output: | 6 adjustable zones |
| Circuitry: | Class AB |
| Controls: | Current limiting; short-circuit; power on/off transient |
| Equalizer: | Master: 1 x 2-band tone control mono |
| Status LED: | Power, fault, level meter |

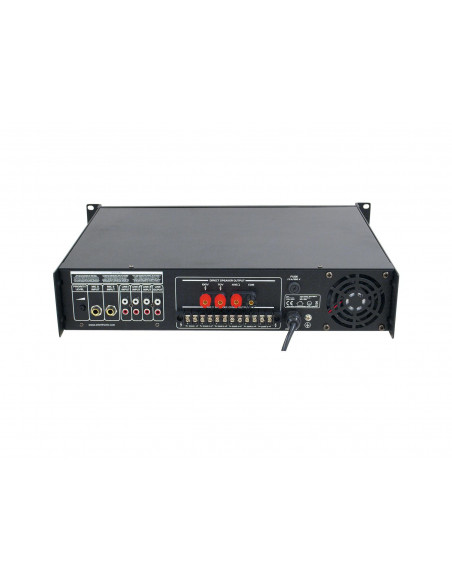

| Connections: | Input: Microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: Microphone via 2 x 6.3 mm plug (unbal.)
Input: line via 3 x stereo RCA 0,3 V
Output: line via 1 x stereo RCA
Output: speakers via screw terminal |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Dimensions: | Width: 48,3 cm
Depth: 38,5 cm
Height: 8,9 cm |
| Weight: | 10,30 kg |
