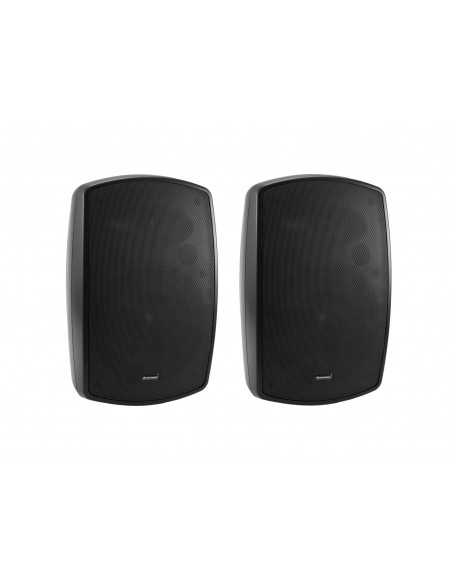

Weatherproof wall speaker pairThe OD-8T 100 V sound reinforcement speakers with excellent sound quality are ideal for indoor and outdoor use.The weatherproof 2-way system in a plastic housing is equipped with a 20 cm woofer, a 2.5 cm dome tweeter with silk membrane and a 100 V transformer with 4 power taps.The swivel and tilt mounting bracket allows easy wall and ceiling mounting at any angle.
Weatherproof wall speaker pair (IP65) with 8" woofers and 50 W RMS
- 100 V PA speaker systems with an excellent sound for general applications
- 2-way system with 20 cm woofer (8") and 2.5 cm silk dome tweeter (1")
- Weatherproof (IP65) plastic cabinet with metal grille and cover for the connectors
- 100 V transformer with 4 power taps (6.25, 12.5, 25 or 50 W)
- Power selector switch with 8 ohms operating position

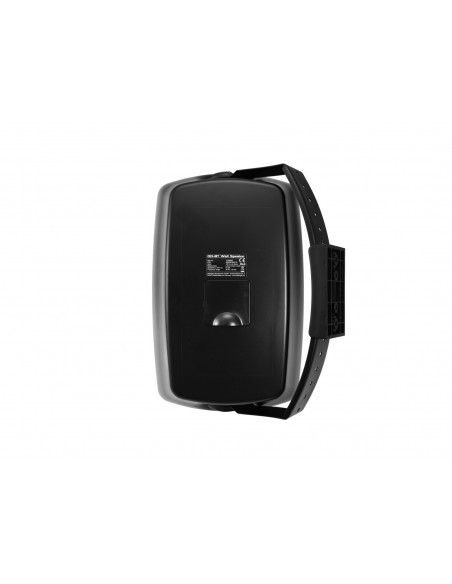

- Panning and tilting mounting bracket allows ceiling or wall installation in most varying angles

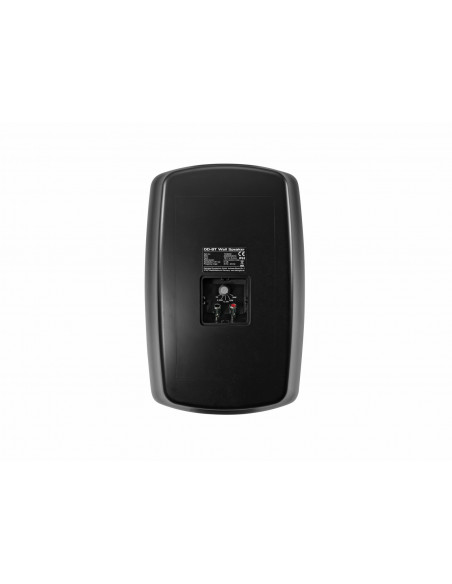

- Connection via pole terminals
- Packed as a pair
- For indoor and outdoor PA applications
- Suitable for outdoor use
| Power supply: |
100 V DC |
| IP classification: |
IP65 |
| Rated power: |
50 W RMS |
| Program power: |
100 W |
| Sensitivity: |
91 dB |
| Max. SPL: |
111 dB |
| Dispersion angle: |
170° x 170° |
| Impedance: |
8 ohms; Public address systems 100V |
| Attachment system: |
Panning and tilting mounting bracket for ceiling or wall installation in most varying angles |
| Power tapping: |
6,25W; 12,5W; 25W; 50W RMS via Selector switch switchable |
| Connections: |
Input: speakers via screw terminal |
| Speakers: |
1 x woofer (8") approx. 20 cm
1 x horn (1") approx. 2,5 cm |
| Type of speaker: |
Compact cabinet speaker; On-ceiling/on-wall speaker |
| Dimensions: |
Width: 24 cm
Depth: 24,5 cm
Height: 38 cm |
| Weight: |
10,30 kg |
