The wireless PA system MES-15BT2 is a combination of a 2-way speaker system with 38 cm woofer and a3-channel power mixer with connections for microphones and line sources such as notebooks and CDplayers. The amplifier supplies a power of 90 W maximum. Stream your music wirelessly from yoursmartphone or tablet via Bluetooth to the system's built-in audio player, which also offers slots for USBstorage devices and SD(HC) memory cards and convenient control via IR remote control. The PA systemfeatures two wireless single antenna receivers operating with the fixed UHF frequencies 830 and 864 MHz.Delivery includes matching dynamic hand-held microphones which serve for wireless signal transmission ofspeech and vocals to the receiving units. The compact PA system is a perfect partner for all mainsindependent and wireless applications such as sales presentations, conferences, gyms etc. The optionalbattery allows for 4-5 hours of entertainment. Alternatively, the unit can be operated with mains voltage(230 V) or via 12 V direct current from an external source (e.g. car battery). The light-weight black plasticenclosure features a flange for speaker stand installation and two wheels and a retractable pulling handle fortrolley-like mobility.
Portable 15" PA system with 2 UHF receiver units, audio player and Bluetooth
- Portable PA system for mobile use
- Ideal for mains independent and wireless applications, e.g. at sales events, lectures and gyms
- 3-channel power mixer (45 W RMS) and 2-way speaker system with a 38 cm woofer (15")
- MP3 player with Bluetooth receiver, IR remote control and volume control
- SD card slot and USB input
- Enjoy music wirelessly from mobile Bluetooth devices such as smartphones, tablets and notebooks
- UHF receiver units and 2 matching wireless microphones
- Mains operation or battery operation for up to 4-5 hours of music playing
- Integrated automatic charging of the battery
- Lead acid battery optionally available (13106993)
- 2 mono microphone channels
- 1 stereo input channel for line signal sources e.g. CD players and notebooks
- Adjustable reverb effect for wireless microphones/microphone channels
- Graphic 5-band EQ, master volume control
- 2 master outputs (mono)
- Terminals for external 12V battery operation (e.g. car battery)
- Light-weight black plastic enclosure with metal grille, monitor shape and carrying handles
- Flange for stand installation

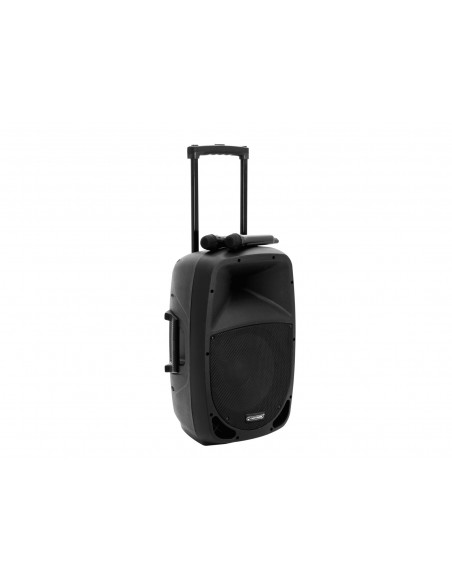

- Two wheels and retractable pulling handle for trolley-like mobility
- License-free in large parts of the EU
- Controlling by Bluetooth built-in
- With Trolley
Audio player
- Controlling by IR remote control included
- Bluetooth: Use a operating range up to 10m
Microphone
- Polar pattern: Cardioid
- Use a operating range up to 30m
| Power supply: | 230 V AC, 50 Hz
Or
12 V DC |
| Power consumption: | 75 W |
| Output power: | Max. 90 W
45 W RMS |
| Power connection: | Mains input IEC connector (M) mounting version power supply cord with safety plug (provided)
Battery/battery pack (optional)
Mains input Spring terminal built-in |
| Battery pack type: | 1 x lead 12 V, 7000 mAh, 84 Wh |
| Battery pack: | Battery operation up to 5h
Recharging time 11h |
| Frequency range: | 60 - 19000 Hz |
| Sensitivity: | 90 dB (1W/1m) |
| Max. SPL: | 110 dB |
| Control: | Bluetooth built-in |
| Control elements: | Audio player, "ECHO" effect control |
| Equalizer: | Master: 1 x Graphic equalizer 5-band stereo
Centre frequency: 100Hz/330Hz/1,1kHz/3,3kHz/6,8kHz |
| Status LED: | Power, clip, Microphone, Battery level indicator |
| Connections: | Antenna via 2 x BNC (F)
Input: Microphone via 2 x 6.3 mm jack socket (mono) mounting version
Input: line via 1 x stereo RCA
Output: master via 1 x stereo RCA |
| Frequency selection: | Fixed frequencies |
| Speakers: | 1 x woofer (15") approx. 38 cm
1 x horn (1") approx. 2,5 cm |
| Type of speaker: | Compact cabinet speaker |
| Transport aid: | Trolley |
| Material: | Plastic |
| Color: | Black |
| Weight: | 13,10 kg |
| Audio player |
| Control: | IR remote control included |
| Audio player: | USB + SD + Bluetooth |
| Format: | MP3, WMA; WAV |
| Frequency band: | 2.4 GHz |
| Available storage media: | USB devices/SD cards max. 32GB (FAT 32) |
| USB port: | Typ A |
| Range: | 10 m Bluetooth |
| Microphone |
| Power supply: | 3 V DC |
| Power connection: | Battery/battery pack |
| Capsule type: | Dynamic |
| Polar pattern: | Cardioid |
| Battery: | 2 x Mignon (AA) (not included) |
| Carrier frequency: | 830 MHz; 864 MHz |
| RF power output: | 10 mW |
| Frequency stability: | ± 0,005 % |
| Range: | 30 m |
| Material: | Plastic |
| Dimensions: | Length: 25,5 cm
Diameter: Ø 5,2 cm |
| Weight: | 200 g |
| Remote control |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
