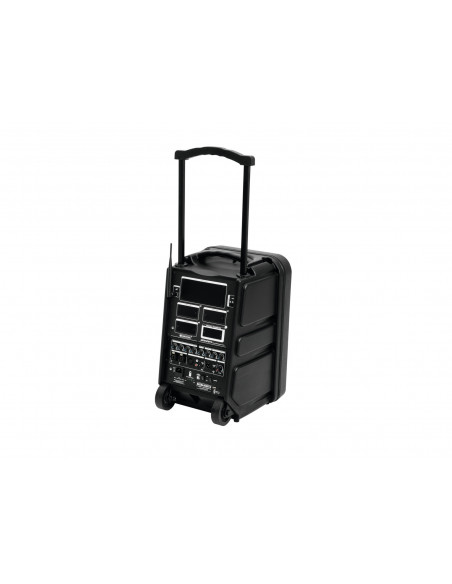

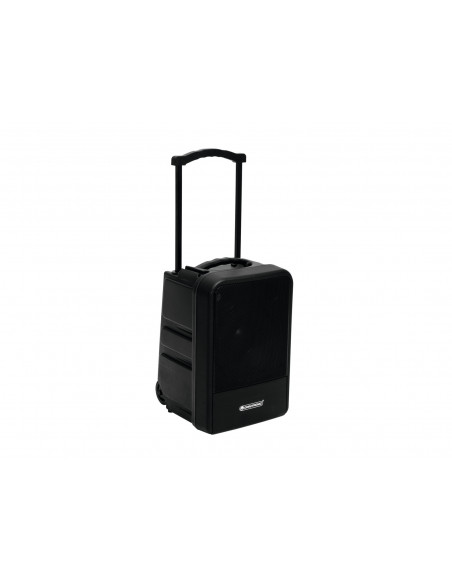

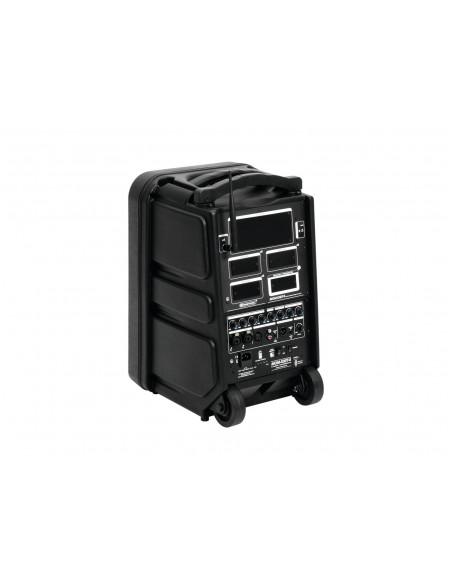

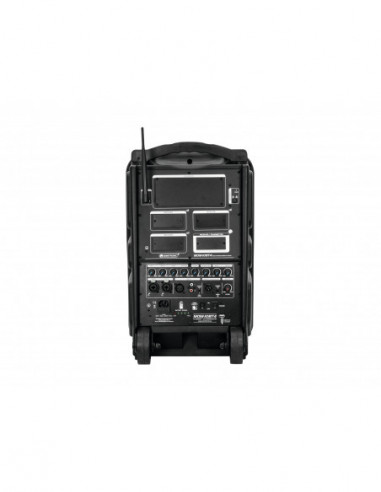

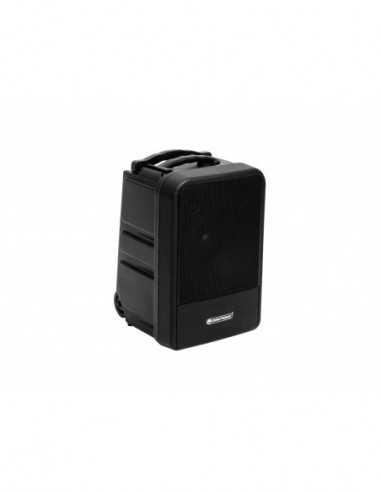

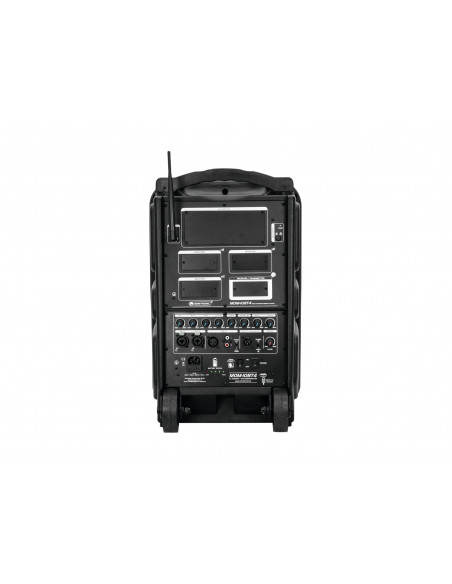

Wireless PA System for mobile useThe MOM-10BT4 is a mobile PA system in modular design. Thanks to its single components, which can be ordered individually, you can ideally adapt the system to your purpose of use. Decide for yourself whether you need additional radio microphones or an audio link module, for example. You can perfectly adapt and expand the 2-way system to your requirements.
Mobile PA system with battery operation and different equipment options
- Wireless PA system with modular structure for maximum flexibility
- For mobile applications, e.g. events, sales presentations and lectures
- Wireless audio link operation of several MOM-10BT4 systems for larger events
- Flexible use: mono operation with several systems or stereo operation with 2 systems linked together
- High-power 2-way speaker system with 25 cm (10") woofer
- Mains operation or battery operation for 6-8 hours of music playing
- 3 extension slots for retrofitting wireless receivers
- 1 extension slot for retrofitting an audio link module
- 1 extension slot for retrofitting a CD/MP3 player with SD slot and USB port
- Integrated Bluetooth audio streaming for your smartphones and tablets
- Microphone inputs with adjustable reverb effect
- Line input (XLR und Cinch), switchable stereo/mono
- Microphone inputs, line input and Bluetooth module with separate volume controls
- Mixer section with common master control and 2-band tone control
- Stereo/mono switch for the master signal during audio link operation
- Additional XLR output for linking several systems via cable
- Switchable microphone priority circuit - ideal for presentations
- Built-in fast charger (5 V/2 A) for convenient charging of your mobile USB devices
- 5-digit battery level indicator
- Integrated automatic charging of the batteries
- 2 rechargeable lead gel batteries are required for battery operation (item 13106993)
- Ergonomic design
- Light-weight black plastic enclosure with metal grille
- Flange for stand installation
- Controlling by Bluetooth built-in
- With Trolley
| Power supply: | 230 V AC, 50 Hz
Or
12 V DC |
| Power consumption: | Max. 100 W |
| Output power: | Max. 160 W
80 W RMS |
| Power connection: | Mains input IEC connector (M) mounting version power supply cord with safety plug (provided)
Battery/battery pack (not included) |
| Frequency range: | 50 - 18000 Hz |
| THD: | <1 % at 1 kHz |
| Control: | Bluetooth built-in |
| Bluetooth: | Version: 4,0
Profiles: A2DP |
| Supported codecs: | AAC, SBC |
| Circuitry: | Class D |
| Status LED: | Battery level indicator, pairing |
| Connections: | Input: line via 1 x stereo RCA
Input: line via 1 x 3-pin XLR
Input: Microphone via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Output: line via 1 x 3-pin XLR |
| Input channels: | 2 x mono via 3-pin XLR/6.35mm jack (F) combination socket (mounting version), channel control via Rotary dial
1 x mono + stereo via XLR or RCA, channel control via Rotary dial |
| Frequency band: | 2.4 GHz |
| Speakers: | 1 x woofer (10") approx. 25 cm
Tweeter (1") approx. 2,5 cm |
| Type of speaker: | Compact cabinet speaker |
| Type: | Vented |
| Transport aid: | Trolley |
| Material: | Plastic |
| Color: | Black |
| Dimensions: | Width: 33,5 cm
Depth: 37,5 cm
Height: 53,5 cm |
| Weight: | 15,75 kg |
| Battery pack |
| Battery pack type: | 2 x lead 12 V, 7000 mAh, 84 Wh |
| Battery pack: | Battery operation up to 8h
Recharging time 5h |
