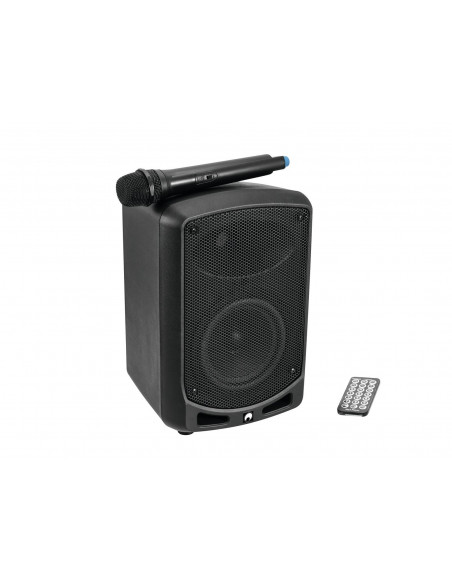

Portable 6.5" PA with wireless microphone, audio player, Bluetooth and 40 W peak power
- Compact, all-in-one PA system for mobile use
- Ideal for mains independent and wireless applications, e.g. at sales events, lectures and gyms

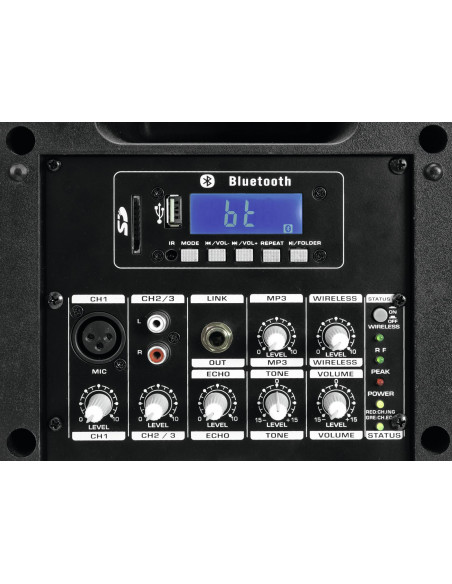

- 4-channel power mixer with
- 2-way bass-reflex system
- SD card slot and USB input
- Integrated automatic charging of the battery
- Rechargeable battery optionally available (E0055612)
- 1 microphone input (XLR) with adjustable reverb effect
- 1 line input (RCA)
- Tone control and master control
- Link output for the combination of several amplifier systems
- Light-weight black plastic enclosure with metal grille and carrying handle
- Flange for stand installation
Audio player
- Controlling by Bluetooth built-in; IR remote control included
- Bluetooth: Use a operating range up to 10m
Microphone
- Polar pattern: Cardioid
- Use a operating range up to 30m
Remote control
- Use a operating range up to 10m
| Power supply: | 100-240 V AC, 50/60 Hz
Or
12 V DC |
| Power consumption: | 60 W |
| Output power: | 40 W RMS |
| Power connection: | Mains input IEC connector (M) mounting version power supply cord with safety plug (provided)
Battery/battery pack (not included) |
| Frequency range: | 62 - 18000 Hz |
| THD: | <0,5 % at 1 kHz |
| Circuitry: | Class D |
| Control elements: | "ECHO" effect control, Audio player |
| Status LED: | Power, peak, ON AIR, signal, Battery level indicator |
| Connections: | Input: line via 1 x stereo RCA
Input: Microphone via 1 x 3-pin XLR
Output: line via 1 x 6.3 mm plug (unbal.) |
| Input channels: | 1 x mono via XLR, channel control via Rotary dial
1 x stereo via RCA, channel control via Rotary dial |
| Frequency band: | UHF 863 - 865 MHz |
| Carrier frequency: | 865 MHz |
| Frequency selection: | Fixed frequencies |
| RF power output: | 10 mW |
| Speakers: | 1 x woofer (6.5") approx. 17 cm
1 x tweeter (1") approx. 2,5 cm |
| Frequency stability: | ± 0,005 % |
| Type of speaker: | Compact cabinet speaker; Wireless PA system |
| Color: | Black |
| Weight: | 4,15 kg |
| Battery pack |
| Battery pack type: | 1 x lead 12 V, 2900 mAh, |
| Battery pack: | Battery operation up to 4h
Recharging time 4h |
| Audio player |
| Control: | Bluetooth built-in; IR remote control included |
| Audio player: | USB + SD + Bluetooth |
| Display type: | 4 digits 7-segment LED display |
| Format: | MP3, WAV |
| Frequency band: | 2.4 GHz |
| Available storage media: | USB devices/SD cards max. 32GB (FAT 32) |
| Range: | 10 m Bluetooth |
| Microphone |
| Power supply: | 3 V DC |
| Power connection: | Battery/battery pack |
| Capsule type: | Dynamic |
| Polar pattern: | Cardioid |
| Battery: | 2 x Mignon (AA) (not included) |
| Range: | 30 m |
| Switch: | On/off/mute switch |
| Material: | Plastic |
| Dimensions: | Length: 26 cm
Diameter: Ø 4 cm |
| Weight: | 115 g |
| Remote control |
| Power supply: | 3 V DC |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Range: | 10 m |
