OMNITRONIC LH-061 PRO Passive Dual DI Box

10355061
41,47 €
Entrega entre 7-10 dias




Passive 2-channel DI box/splitter, black

  • Passive 2-channel DI box with split mode

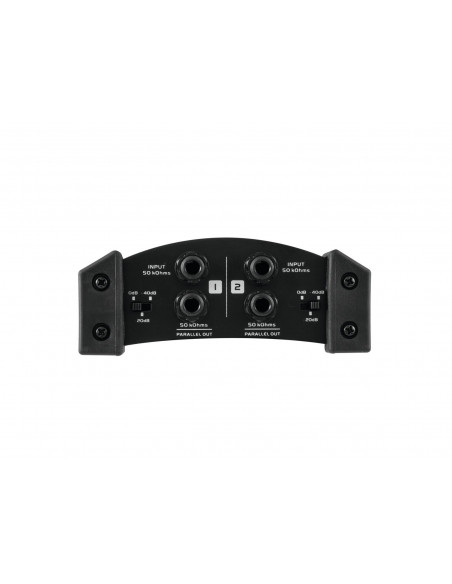

  • 2 high-impedance signal inputs via two 6.3 mm jacks

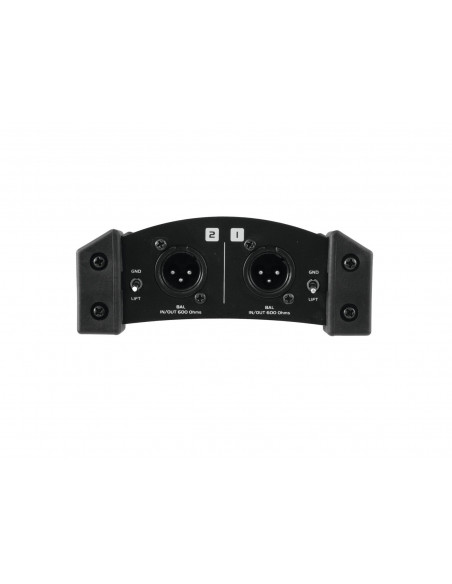

  • 2 low-impedance XLR outputs
  • 2 feed-through outputs (6.3 mm jack)
  • Converts 2 separate unbalanced line inputs (e.g. CD player, instruments) into 2 balanced XLR outputs, for connecting a mixer
  • Switchable input attenuation: 0 dB, -20 dB, -40 dB
  • Ground-lift switch eliminates signal interference and ground loop problems
  • Modern convex housing design with rubber corners for safe positioning
  • Stackable
  • Cables can be routed under the housing


Frequency range:15 - 30000 Hz
Impedance:Input 50 kOhm
Output 600 Ohm
Input attenuation:0 dB, -20 dB, -40 dB; switchable
Connections:Input: 2 x 6.3 mm jack socket (mono) mounting version
Output: line via 2 x 3-pin XLR
Link: 2 x 6.3 mm jack socket (mono) mounting version
Max. level:Output: +6 dBu
Dimensions:Width: 13,3 cm
Depth: 11,5 cm
Height: 5,4 cm
Weight:610 g
