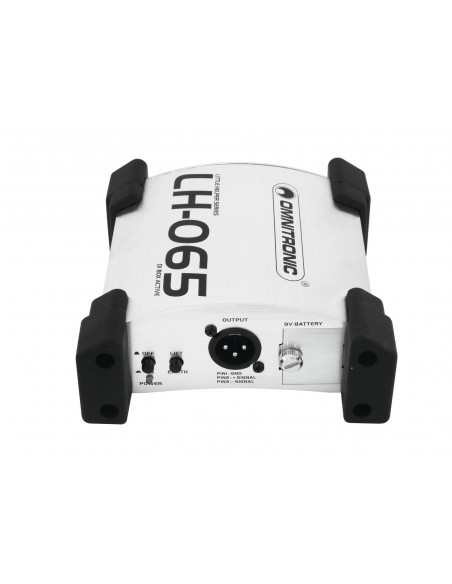

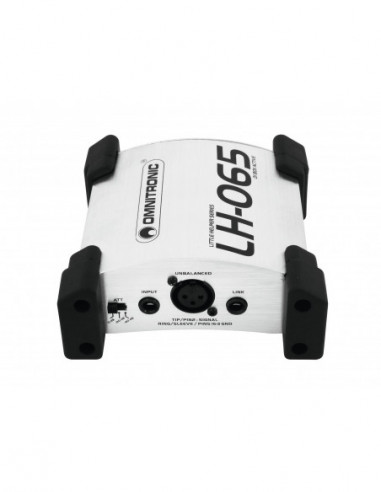

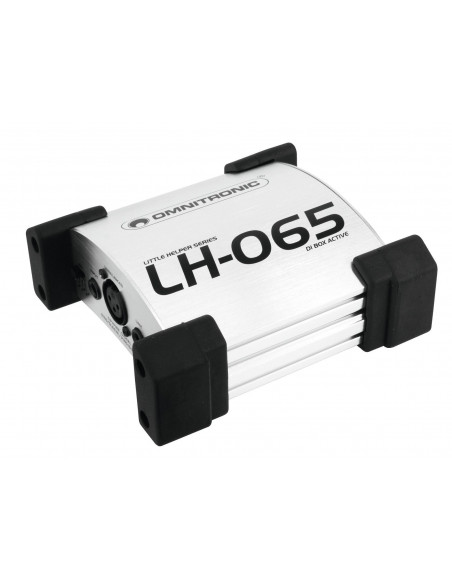

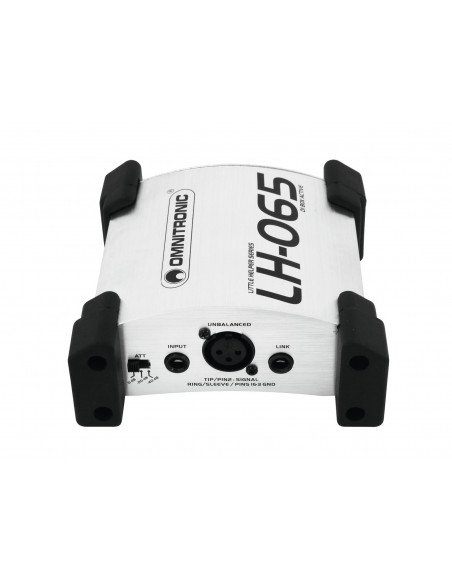

1-channel DI box, active
- Active DI box
- 1 high-impedance signal input via XLR or 6.3 mm jack connectors
- 1 low-impedance XLR output
- 1 instrument feed-through output, 6.3 mm jack
- Converts an unbalanced line input (e.g. instruments) into a balanced XLR output for connecting a mixer
- Switchable input attenuation: 0 dB, -20 dB, -40 dB
- Ground-lift switch eliminates signal interference and ground loop problems
- Modern convex housing design with rubber corners for safe positioning
- Stackable
- Cables can be routed under the housing
- Operation with 9 V battery (included)
Power connection: | Mains input Coaxial power connector (M) power supply cord with AC adapter (provided) |
Battery: | 1 x 9.0 V E block 6F22 zinc carbon (provided) |
Frequency range: | 10 - 30000 Hz |
THD: | <0,5 % at 1 kHz |
Impedance: | Input 470 kOhm Output 600 Ohm |
Input attenuation: | 0 dB, -20 dB, -40 dB; switchable |
Connections: | Input: 1 x 3-pin XLR Input: 1 x 6.3 mm plug (unbal.) Link: 1 x 6.3 mm plug (unbal.) Output: line via 1 x 3-pin XLR |
Max. level: | Output: +6 dBu |
Dimensions: | Width: 15 cm Depth: 13 cm Height: 6 cm |
Weight: | 540 g |
