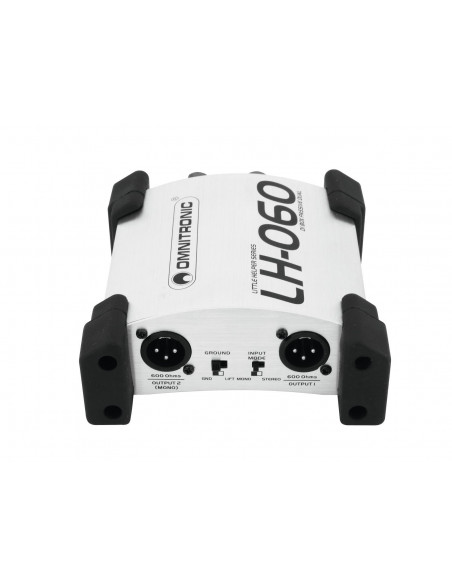

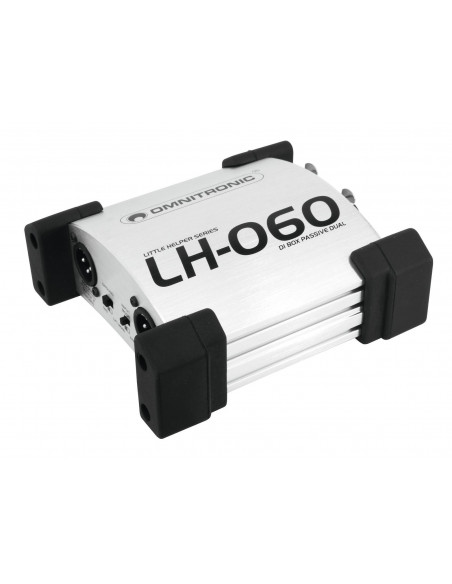

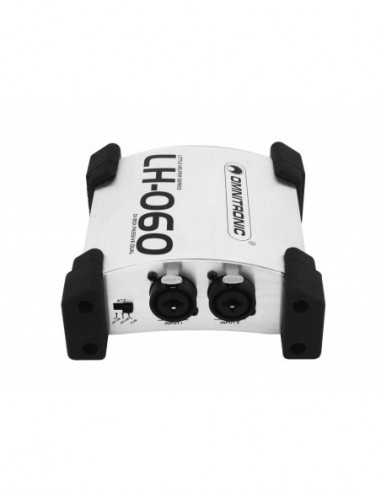

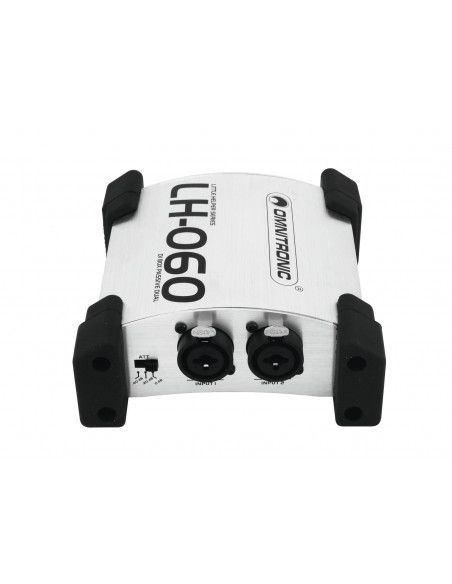

OMNITRONIC LH-060 PRO Passive Dual DI Box

Referência 10355060

65,78 €

Entrega entre 7-10 dias

Passive 2-channel DI box/splitter, silver

Passive 2-channel DI box with split mode
2 high-impedance signal inputs via combo connectors (XLR/6.3 mm jack)
2 low-impedance XLR outputs
Converts 2 separate unbalanced line inputs (e.g. instruments) into 2 balanced XLR outputs, for connecting a mixer
Switchable to split mode (input 2 routes the signal to both outputs)
Switchable input attenuation: 0 dB, -20 dB, -40 dB
Ground-lift switch eliminates signal interference and ground loop problems
Modern convex housing design with rubber corners for safe positioning
Stackable
Cables can be routed under the housing

Frequency range:	15 - 30000 Hz
Impedance:	Input 50 kOhm Output 600 Ohm
Input attenuation:	0 dB, -20 dB, -40 dB; switchable
Connections:	Input: 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: line via 2 x 3-pin XLR
Max. level:	Output: +6 dBu
Dimensions:	Width: 15 cm Depth: 13 cm Height: 6 cm
Weight:	650 g
