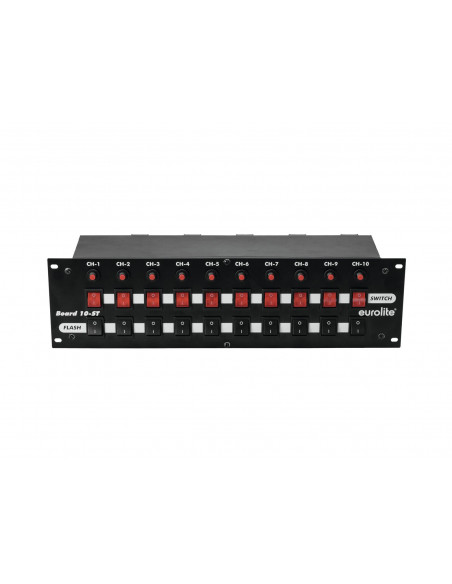

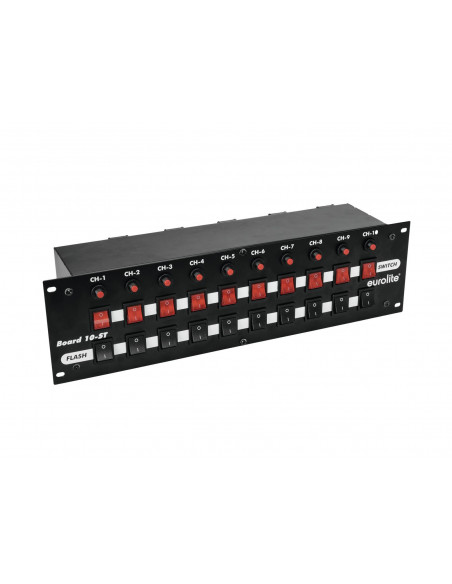

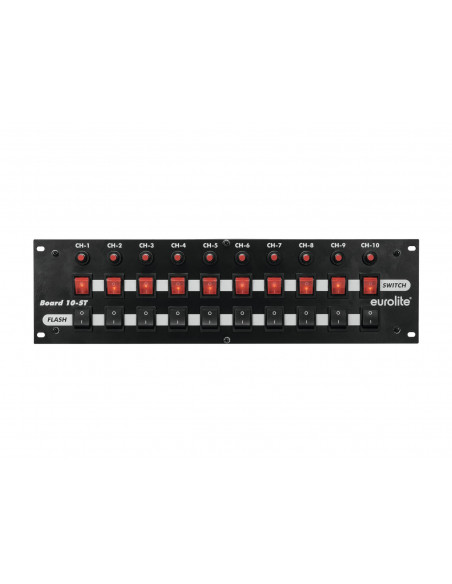

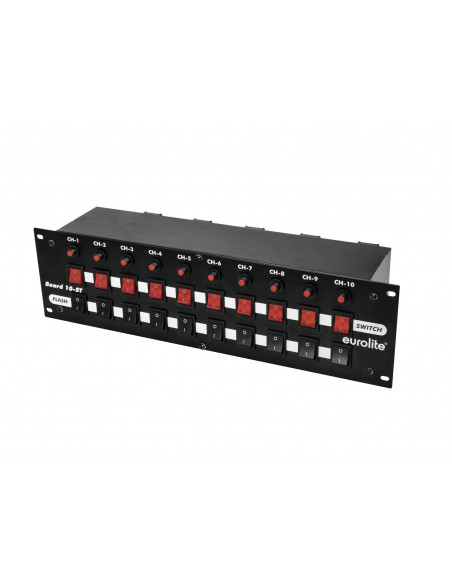

EUROLITE Board 10-ST with 10x Safety-Plug

70008283
92,81 €




10-fold switching panel, (10 x flash buttons), for separate switching of 10 safety sockets

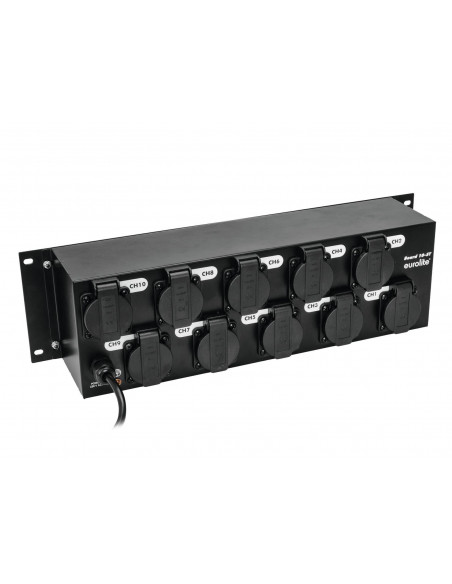

  • Fully cabled housing with 10 safety-sockets
  • For 16 A safety plug
  • 10 switches with flash-buttons
  • 10 manually resetable fuses with 6.3 A
  • Controlling by on/off switch on device


Power supply:230 V AC, 50 Hz
Power consumption:3680 W
Protection class:Class I
Output power:Max. 1150 W per channal
Output current:Max. 5 A per channal
Power connection:Fixed power supply cord with safety plug
Power output:10 x Safety contact (F), hinged lid mounting version fused
Power output fuse per channel:Circuit breaker, 6,3 A Fuse resettable
Control:On/off switch on device
Control channels:10
Color:Black
Dimensions:Width: 48,3 cm
Depth: 14 cm
Height: 13,35 cm
Weight:2,96 kg
