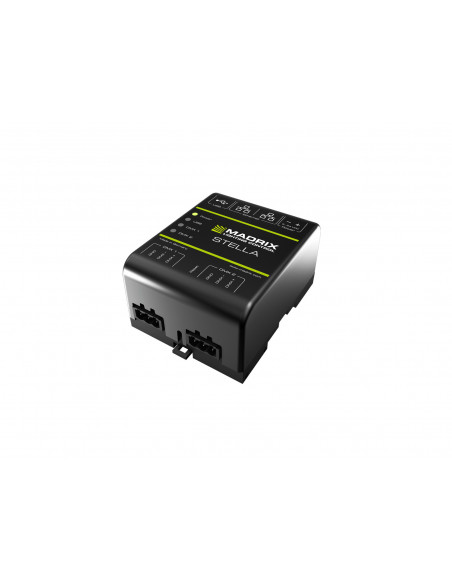

MADRIX STELLA

USB and Artnet interface to control two DMX universes with Madrix

• MADRIX STELLA is a flexible 2-port network node to control LED fixtures
• Receives data over Ethernet network (Art-Net and/or Streaming ACN) to convert to DMX512 for your fixtures
• Eliminates the need for extra XLR connectors and converters: directly connect DMX512 to the device over two 3-pin, pluggable screw terminals

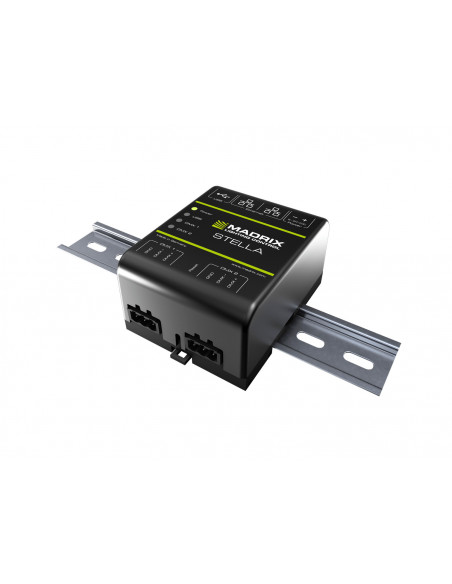

• Is especially suited for solid-state projects as it can be mounted on 35-mm DIN rails or walls via the provided wall-mount brackets
• Provides flexible power options: over 5 V USB or 5 V to 24 V via pluggable screw terminal
• Drives up to 2 DMX universes over 2 ports (1024 DMX channels)
• Each port can either be configured as output or input
• Can also be used as MADRIX USB interface
• Works great with the MADRIX Software with quick and easy installation (sold separately)
• Sync Mode: MADRIX Software and hardware allow you to synchronize Art-Net data for all output ports and even across multiple devices to get an optimal image on the LEDs without visual interruptions
• Complies with the official specifications of Art-Net and Streaming ACN and can be used as regular network unit with other 3rd-party consoles, controllers, or software solutions

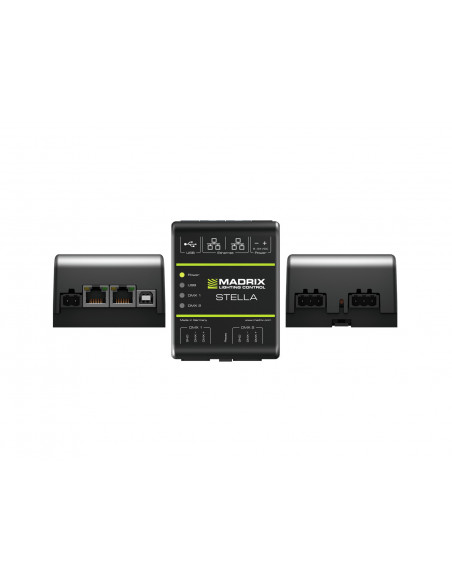

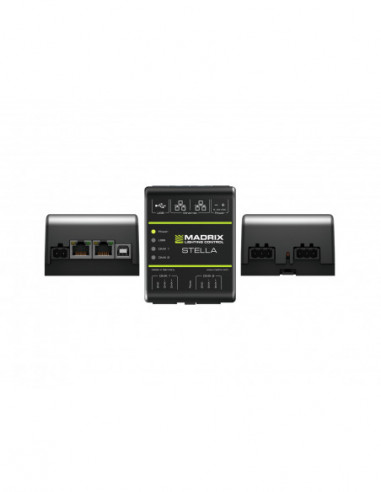

• 2 Ethernet ports with daisy-chain support for the data connection without using a separate network switch or router
• Automatic HTP merging for two Ethernet sources
• Useful settings for channels per universe, channel offset, channel order, and output in case of network connection loss, and more
• Built-in web page for simple on-device configuration
• 9 status LEDs, which can be turned off
• Non-conductive enclosure with IP20 and UL94 V-O flammability rating
• Fanless, noiseless, low-energy design
• Ready within seconds after startup
• Recommended for any small or large project
• Multiple devices can be used together without problems
• The firmware can be updated for future features and enhancements
• Quick start guide / technical manual available in English and German
• User manuals also available at help.madrix.com
• More information available at www.madrix.com
• Can transmit up to 1024 DMX channels
• Controlling by DMX; RDM; ArtNet
• The device can be connected via USB to the PC
• Made in Germany
