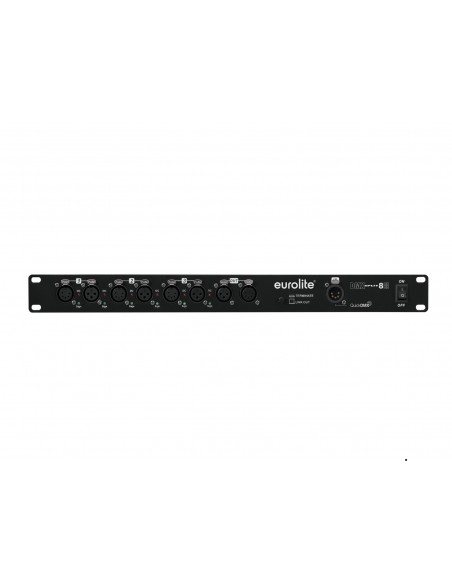

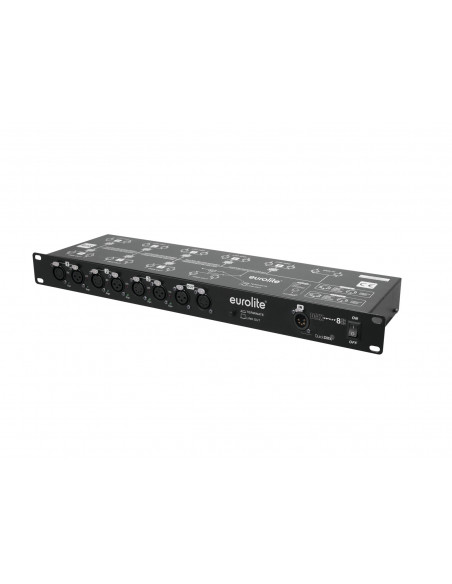

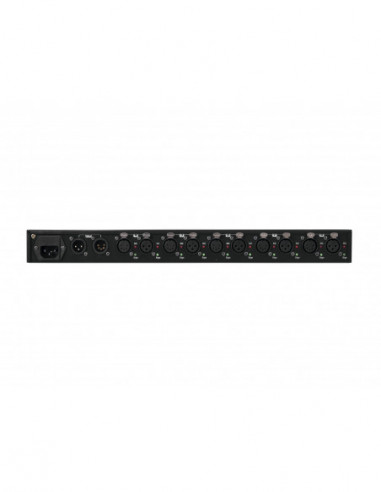

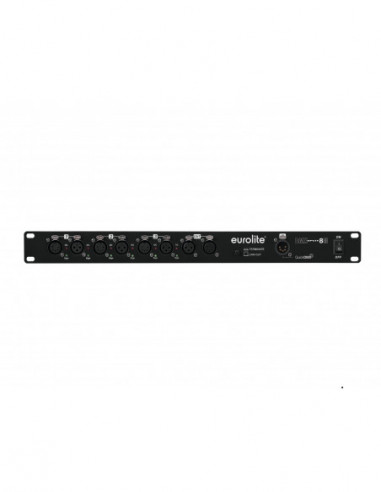

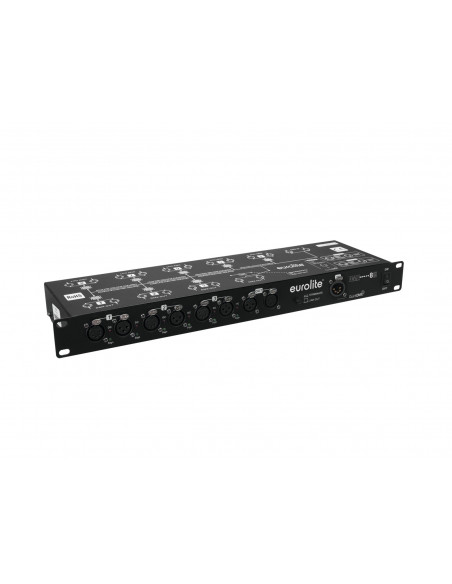

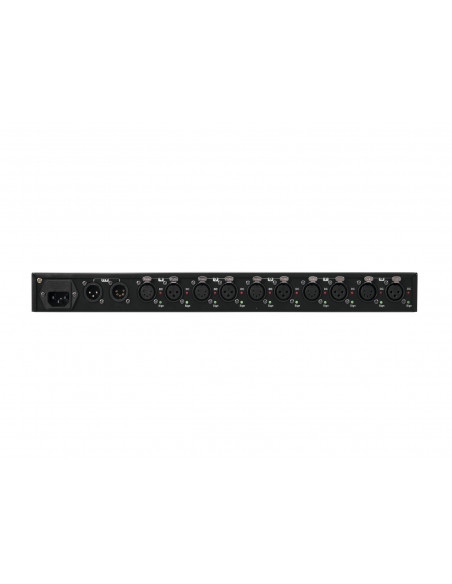

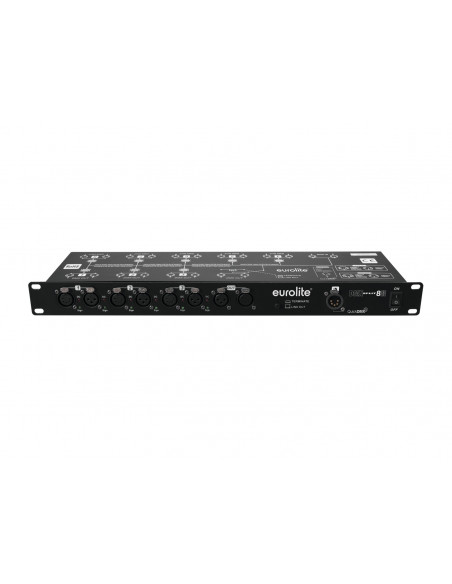

Splitter with 8 galvanically isolated outputs, 3/5-pin & QuickDMX XLR sockets
- DMX splitter for splitting one DMX input signal to 8 DMX outputs
- Connections: 1 x DMX input, 1 x DMX feed-through output, 8 x DMX output
- Additional QuickDMX input for wireless reception of DMX signals
- Input and outputs XLR 3-pin and 5-pin each
- Input and outputs galvanically isolated
- Each DMX output with independent driver and status indicators
- Input and outputs with a set of respective power supply and internal fuse
- Switchable termination resistor
- Rack mounting
- Controlling by DMX; QuickDMX via 5-pin XLR (M) mounting version (optional)
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 5 W |
Power connection: | Mains input IEC connector (M) mounting version power supply cord with safety plug (provided) |
DMX input: | 1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version |
DMX output: | 8 x 3-pin XLR (F) mounting version Separate (galvanic) 8 x 5-pin XLR (F) mounting version Separate (galvanic) 1 x 5-pin XLR (F) mounting version Bypass 1 x 3-pin XLR (F) mounting version Bypass |
Control: | DMX; QuickDMX via 5-pin XLR (M) mounting version (optional) |
Control elements: | Bypass/terminating resistor Schalter, power switch |
Dimensions: | Width: 48,3 cm Depth: 14,5 cm Height: 4,45 cm |
Weight: | 2,22 kg |
