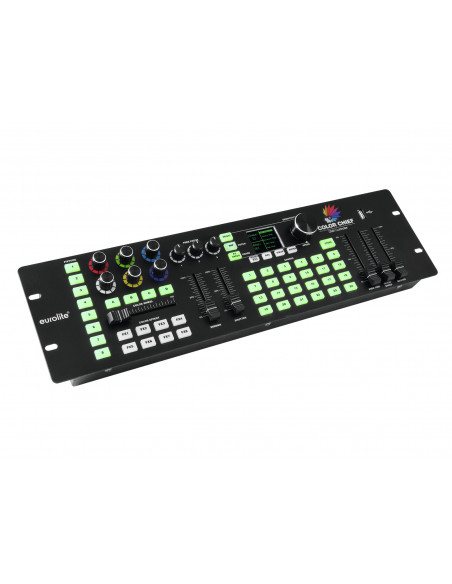

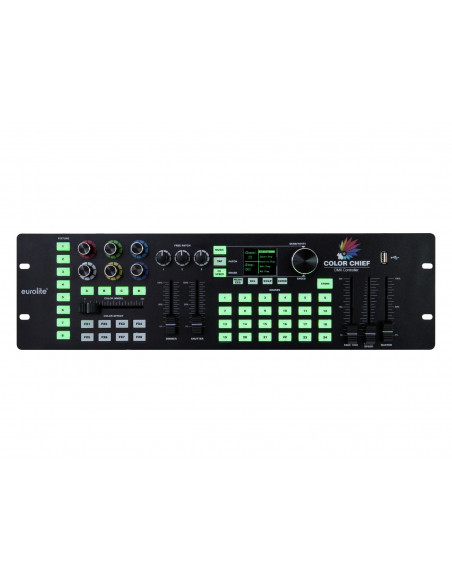

DMX lighting desk with innovative control concept for LED spotlights
- Easy control of LED spotlights with up to 6 colors, light bars as well as simple lighting effects
- For 8 devices or device groups, each with up to 4 segments
- Each device can occupy up to 30 channels
- Quick and easy programming
- Eurolite KLS systems and LED spotlights already in the library
- Additional fixtures can be configured manually
- 8 color effects directly selectable
- 3 additional channels available per fixture (e.g. for rotations)

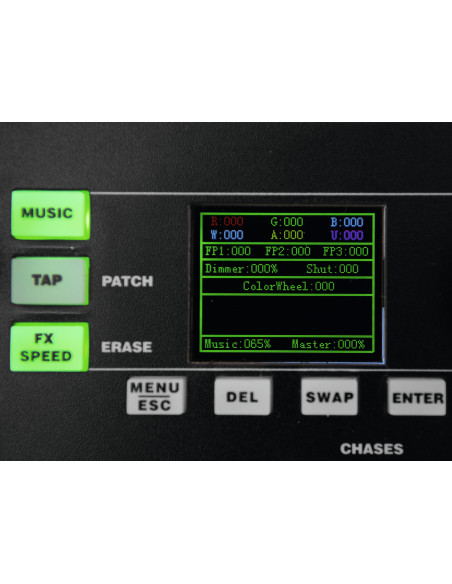

- Color wheel selection and simulation
- 24 memory spaces for scenes and chases
- Several chases can be run simultaneously
- USB port for storing program data
- Sound control via audio signal or TAP button
- Master dimming, fade time and run time easily adjustable
- 3-pin XLR connector
- Firmware update via USB
- Desktop console
- Programmable 24 sequencens
- Can transmit up to 240 DMX channels
- Controlling by DMX; Sound to light via RCA (F) mounting version; Sound to light via Microphone
- (19") 48.3 cm rack installation 3 U
| Power supply: | 100-240 V AC, 50/60 Hz
9 V DC 800 mA |
| Power consumption: | 10 W |
| IP classification: | IP20 |
| Power connection: | Mains input Coaxial power connector (M) power supply cord with AC adapter (provided) |
| Programs: | Programmable
24 Sequences |
| DMX channels: | Output 240 |

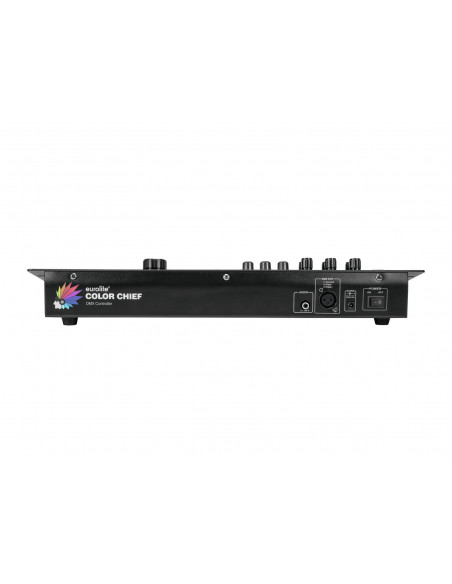

| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX; Sound to light via RCA (F) mounting version; Sound to light via Microphone |
| Housing color: | Black |
| Available storage media: | USB devices (FAT 32) |
| USB port: | Typ A |
| Color: | Black |
| Housing design: | (19") 48.3 cm rack installation 3 U |
| Dimensions: | Width: 48,3 cm
Depth: 13,35 cm
Height: 8,5 cm |
| Weight: | 2,25 kg |
