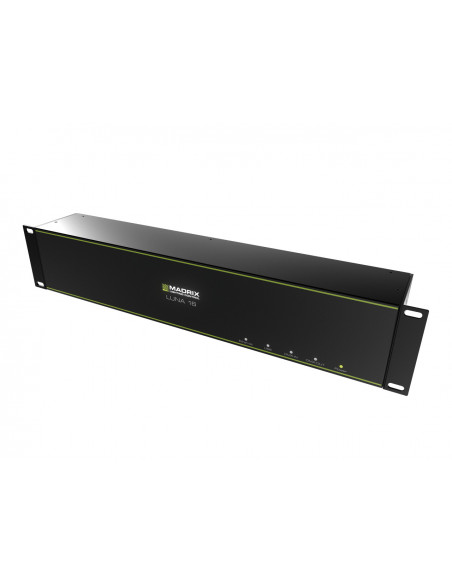

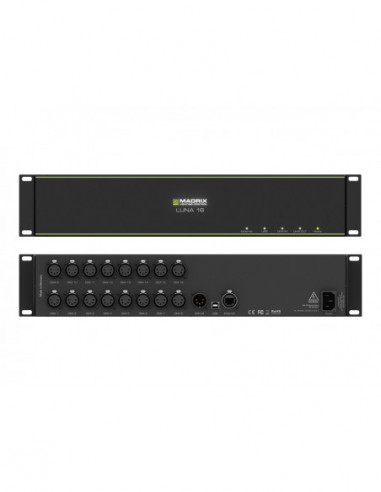

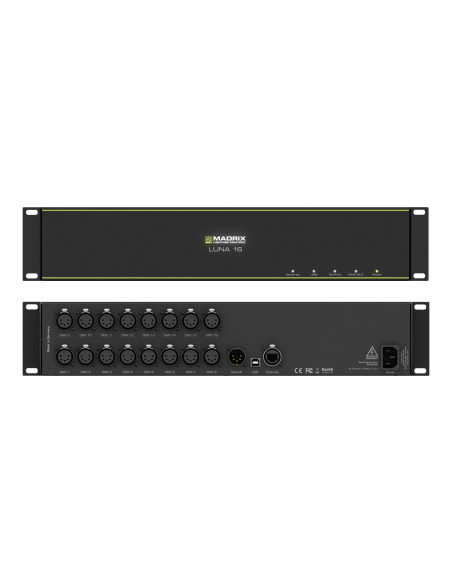

Artnet and USB interface for output of 16 DMX universes
- MADRIX LUNA 16 is an easy-to-use and reliable network node with unique features to control lighting fixtures
- Supports Art-Net as well as Streaming ACN (sACN)
- Can also be used as MADRIX USB interface
- The device distributes DMX512 data over long or short distances using Ethernet network or USB

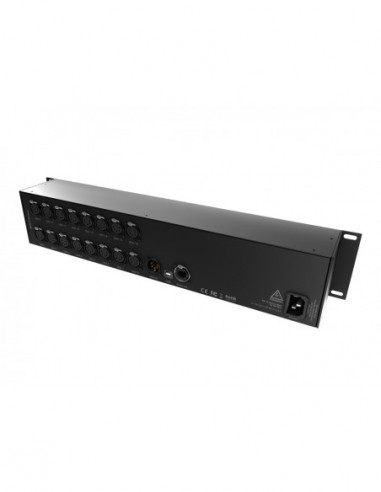

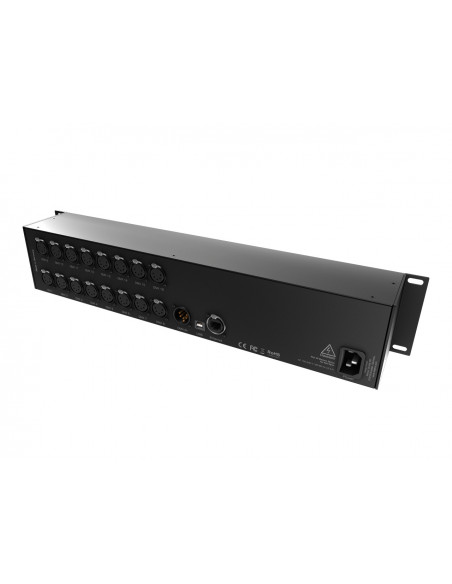

- 16 XLR ports (5-pin, female) distribute 16 DMX universes per unit (8192 DMX channels)
- 1 XLR port (5-pin, male) is always available for DMX input (512 DMX channels)
- Works great with the MADRIX Software with quick and easy installation (sold separately)
- Sync Mode: MADRIX Software and hardware allow you to synchronize Art-Net data for all output ports and even across multiple devices to get an optimal image on the LEDs without visual interruptions
- Complies with the official specifications of Art-Net and Streaming ACN and can be used as regular network unit with other 3rd-party consoles, controllers, or software solutions
- Fanless, noiseless, low-energy design
- 19" metal case (2U) including brackets for rack mounting
- Ready within seconds after startup
- Automatic HTP merging for two Ethernet sources
- 5 status LEDs, which can be turned off
- Built-in web page for simple on-device configuration
- Recommended for any small or large project
- Many LUNA 4/8/16 can be used together without problems
- Quick start guide / technical manual available in English and German
- User manuals also available at help.madrix.com
- More information available at www.madrix.com
- Can receive and process up to 512 DMX channels
- Can transmit up to 8162 DMX channels
- Controlling by ArtNet
- Built with NEUTRIK connector
- The device can be connected via USB to the PC; The device can be connected via RJ-45 etherCON (F) mounting version to the PC
- (19") 48.3 cm rack installation 2 U
- Made in Germany
| Power consumption: | 5,00 W |
| IP classification: | IP20 |
| Protection class: | Class I |
| Power connection: | Mains input IEC connector (M) mounting version power supply cord with safety plug (provided) |
| DMX channels: | Input 512
Output 8162 |
| DMX input: | 1 x 5-pin XLR (M) mounting version |
| DMX output: | 16 x 5-pin XLR (F) mounting version |
| Network connection: | Protocol: ArtNet 3 via 1x RJ-45 etherCON (F) mounting version |
| Control: | ArtNet |
| USB port: | USB 2.0, Typ B |
| Use of brands: | Built with NEUTRIK connector |
| PC connect: | Via USB
Via RJ-45 etherCON (F) mounting version |
| Housing design: | (19") 48.3 cm rack installation 2 U |
| Dimensions: | Width: 48,3 cm
Depth: 7,6 cm
Height: 8,9 cm |
| Weight: | 2,27 kg |
